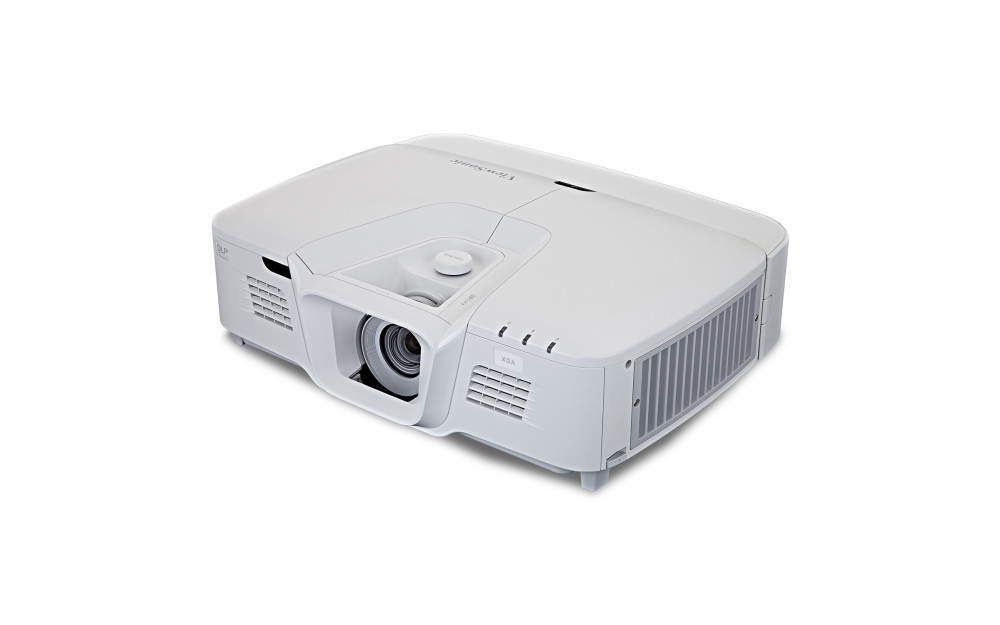

The Pro8510L is a 3D-DLP projector by Viewsonic, whose specifications list 5200 ANSI lumens, a contrast of 5000:1 and a XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. Regarding projection size, the value of 5200 ANSI lumens allows for an image width of up to 628 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 419 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. The projector was released in 2016 and is officially no longer distributed by Viewsonic.
Display Type
1 x 0,55" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5200
Screen
1733 Lux (200 cm Screen width)
Contrast
5000:1 full on/off
5000:1 full on/off
Black Level
1,0400 min. Lumen
0,347 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel HDTV 1920 x 1080 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
3 x HDMI 1.4 mit MHL in
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
574W
Size WxHxD
496,5 x 139,8 x 316,24 mm (19,5"x5,5"x12,5") 21,79 L/dm³
Real Full HD 3D
