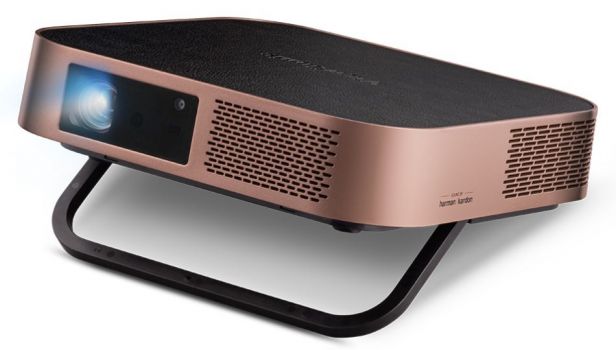

Based on DLP technology, the Viewsonic M2W device delivers 1700 ANSI lumens, a resolution of WXGA 1280 x 800 and a contrast of 3000000:1 as a projector. The built-in LED technology features a light source lifespan of 30000 hours – calculating to 20.5 years at four hours of use per day. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Looking at practical performance, up to 419 cm can be illuminated with 1700 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 279 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 26 decibels. Since entering the market in 2022, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1700
Screen
680 Lux (200 cm Screen width)
Contrast
3000000:1 full on/off
3000000:1 full on/off
Black Level
0,0006 min. Lumen
0 min. Lumen
Offset
50% Exactly on screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel HDTV 1920 x 1080 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: .xvid
.avi
.mp4
.m4v
.mov
.mkv
.ts
.trp
.tp
.mts
.m2ts
.vob
.mpg
doc/docx
xls/xlsx
ppt/pptx
Pdf
Application
Micro-Portabel | Small mobile presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness quality Perfect
240 cm (no Zoom)
Lux:
680 Lux
Contrast:
3000000:1
Candela pro m²:
216 cd/m²
Foot-Lamberts:
63 fL
63 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=1,7 f=11,96mm
Throw Ratio
1,2:1
Audio
3W Cube x2 (Full range x2)

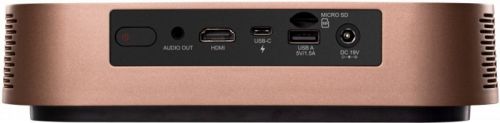

Connections
HDMI in
Mini Jack Audio in und out
Audio-in (Bluetooth / BT4.2)
USB Type C (5V/0.5A)
USB Typ A (5V/1.5A)
SD Card: Micro SD (256GB, SDXC)
Full HD 1080P compatible
Viewsonic Website
Product Sheet english
