Brief Introduction
Beta 2.5 |

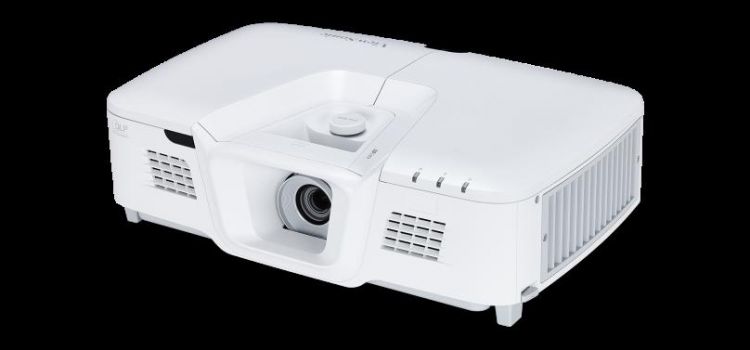

The Viewsonic PG800W DLP projector has 5000 Ansi lumens, a contrast of 50000:1 and a WXGA 1280 x 800 resolution. Includes a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 718 cm is possible as the projector has 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. Furthermore, the projector can play 1080P without any problems. This model is no longer offered by Viewsonic.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2000 Lux (200 cm Screen width) |
| Contrast |
50000:1 |
50000:1
|
| Black Level |
0,1000 min. Lumen |
0,04 min. Lumen |
| Lens shift |
Vert.: +67,5% --60%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
370W Lamp
Article Nr.: RLC-103
|
|
| Light Life |
2000 h. / 2500 h. in Eco Mode |
| Operating Costs |
|
|
240 - 320 cm
|
 |
|
Lux: |
2000 Lux |
|
Room light max.: |
400 Lux |
|
Candela pro m²: |
637 cd/m² |
|
Foot-Lamberts: |
186 fL |
|
 |
| 84 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=2,59-2,87 f=16,88-21,88 mm |
| Throw Ratio |
1,2-1,6:1 show |
| Audio |
2 x 10W |
| Connections |
2x HDMI in
D-sub 15pin 2x in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in
3.5mm 12V Trigger
3D VESA
IR out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
574W |
| Size WxHxD |
470 x 140 x 316 mm (18,5"x5,5"x12,4") 20,79 L/dm³
|
| Operating Noise |
33 dB in Eco Mode |
|
| Weight |
6,20 kg / 13,67 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
186 fL
/ max. 718 cm screen width |
| Candela m² |
637 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Remote control with laser pointer
Optional Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Viewsonic PG800W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
97 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
93 |
| Picture Total Points: | 50 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1164 (From: 7662) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-09-20
