Nec PV730 /WJL/BJL


NEC NP-PV730UL WJL | NEC NP-PV730UL BJL

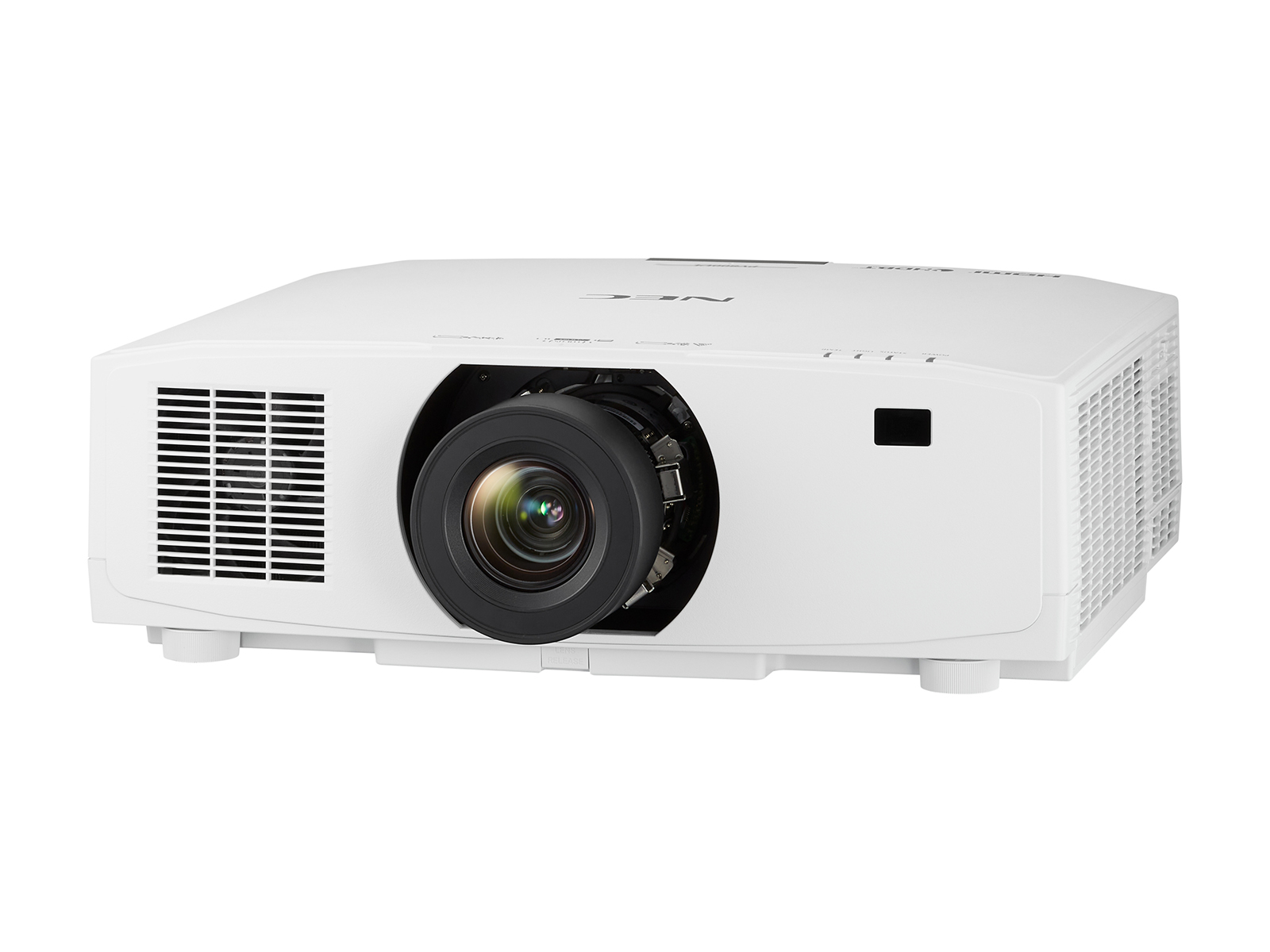

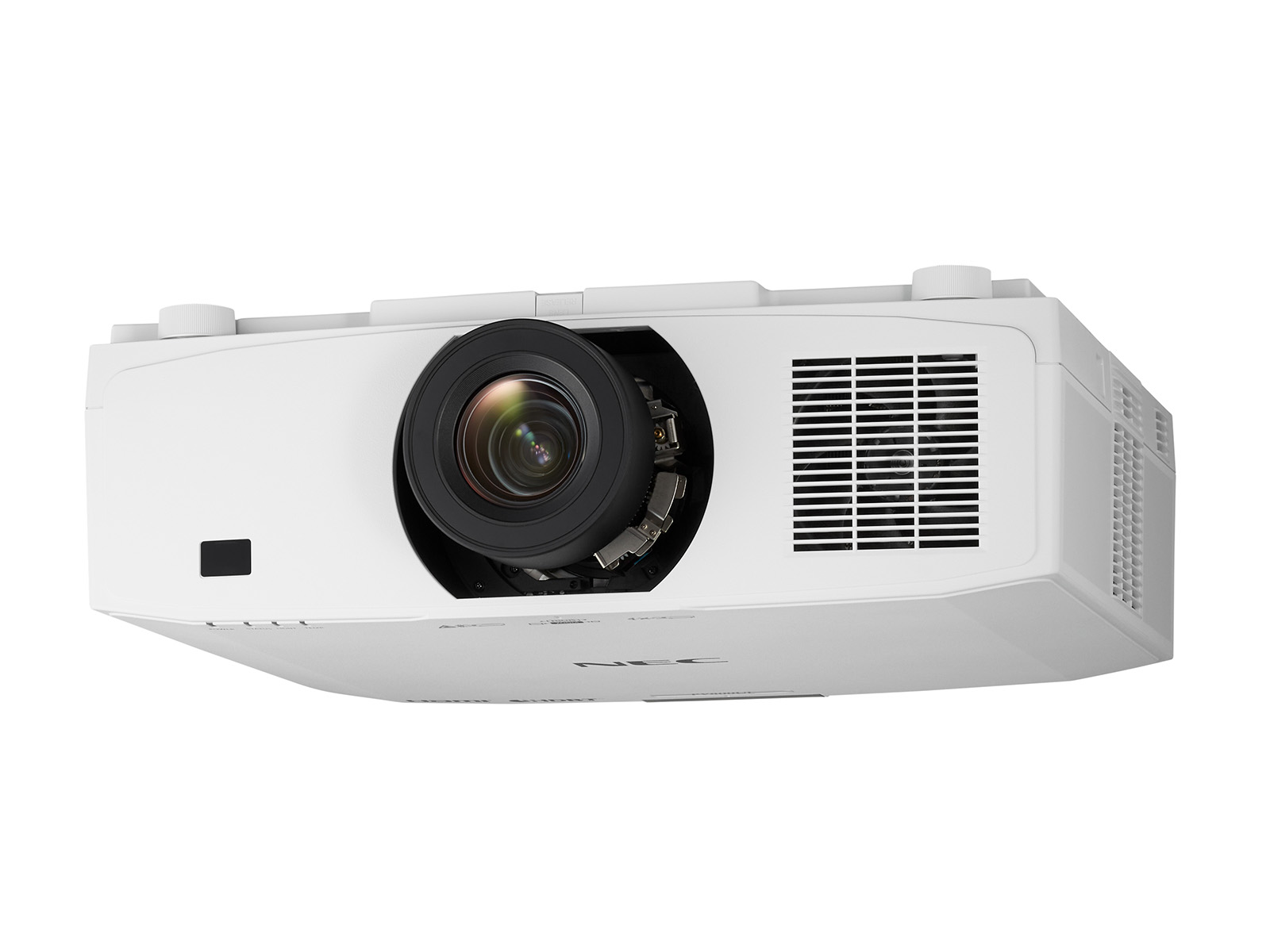

Image Nec PV730 /WJL/BJL
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview Known as the PV730, this 3D-Laser-LCD projector by Nec features basic specs of 7300 ANSI lumens, a contrast of 3000000:1 at a WUXGA 1920 x 1200 resolution. This is a laser projector with a light source designed to last for 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Distance Calculator is available to calculate the exact dimensions.
Looking at practical performance, up to 868 cm can be illuminated with 7300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 579 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type       3 x 0,76" LCD TFT Panel mit MLA
      WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
7300
Screen
3244 Lux (200 cm Screen width)
Contrast 3000000:1 full on/off 3000000:1 full on/off
Black Level 0,0024 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +50% -10% Hori.: +/-30%
 Lens shift
50%  56cm
10%  11cm
30%  60cm
30%  60cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K2K) 3840 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser-Phosphor
Order Accessories
48,56 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 3244 Lux
Contrast: 3000000:1
Candela pro m²: 1031 cd/m²
Foot-Lamberts: 301 fL
56 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections 2x HDMI in
D-sub 15pin in und out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 465W
Size WxHxD 499 x 164 x 407 mm (19,6"x6,5"x16") 33,31 L/dm³
Operating Noise -

Shift: 56 cm

Shift: 60 cm

Shift: 60 cm

Shift: 11 cm

Weight 11,20 kg / 24,25 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz -
Foot-Lamberts 301 fL / max. 868 cm screen width
Candela m² 1031 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
PJLink™
Lan network compatible.
LipSync
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Nec PV730 /WJL/BJL compared to others current "Stationary" projectors.
Ansi-Lumen:
72 Weight:
95
Contrast:
60 dB: 0
Black level:
100 Power cons.:
82
Picture Total Points:77 Projector Total Points:0
Popularity Top 100
20 popularity points 22 popularity points 20 popularity points 20 popularity points 35 popularity points 29 popularity points
Points:
29
Ranking: 49 (From: 254)
Optional accessories
object lens OriginalNP15ZL / 60003219EOL €
object lens OriginalNP14ZL / 60003221EOL €
object lens OriginalNP13ZL / 60003217EOL €
object lens OriginalNP12ZL / 600032201.178,98 €
object lens OriginalNP11FL / 60003222EOL €
remote control Original7N901081 / RD-466E / 7N901321 / RD-480E48,56 €
object lens Original100015167 / NP44MLEOL €
object lens Original100014645 / NP43ZLEOL €
object lens Original100014473 / NP41ZLEOL €
object lens Original100014472 / NP40ZL1.481,86 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
NP15ZL 4.59-7.02:1 918-1404 m 50-10% +/-30% Manual
NP43ZL 2.99-5.93:1 598-1186 m 50-10% +/-30% Powered
NP14ZL 2.9-4.68:1 580-936 m 50-10% +/-30% Manual
NP41ZL 1.3-3.02:1 260-604 m 50-10% +/-30% Powered
NP13ZL 1.46-2.95:1 292-590 m 50-10% +/-30% Manual
NP12ZL 1.16-1.52:1 232-304 m 50-10% +/-30% Manual
NP40ZL 0.79-1.11:1 158-222 m Powered
NP44ML-PA4 0.32:1 64 m No Zoom
NP11FL 0.8:1 160 m 0.0% Fix No Zoom
Status 2023 Current model // Last update of the data: 2026-06-09
