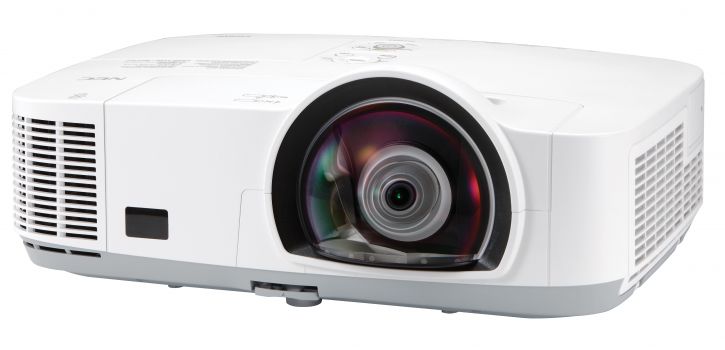

According to Nec, the M302WS model provides 3000 ANSI lumens, a contrast ratio of 10000:1 alongside a WXGA 1280 x 800 resolution. According to Nec, the included lamp lasts up to 5500 hours – mathematically sufficient for 7.5 years based on two hours of use per day. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 90 cm. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2014, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1200 Lux (200 cm Screen width)
Contrast
10000:1 full on/off
10000:1 full on/off
Black Level
0,3000 min. Lumen
0,12 min. Lumen
Offset
51,61% 2 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: JPEG
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility
Frame Sequential (3D Ready) |
Application
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Calculated brightness quality The screen width may also be larger. Perfect
90 cm (no Zoom)
Lux:
1200 Lux
Contrast:
10000:1
Candela pro m²:
380 cd/m²
Foot-Lamberts:
111 fL
65 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,4 f=6,5mm
Throw Ratio
0,45:1
Audio
1 x 20W
Connections
2 x HDMI in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
3D Sync Ausgang: 1 × Mini-DIN 3-polig
Full HD 1080P compatible Integrated Mediaplayer Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Password protection Lan network compatible. Short-throw projector Digital Zoom Dicom Simulation
Full HD 1080P compatible
