Mitsubishi WD510U/G


Mitsubishi LVP WD510U/G

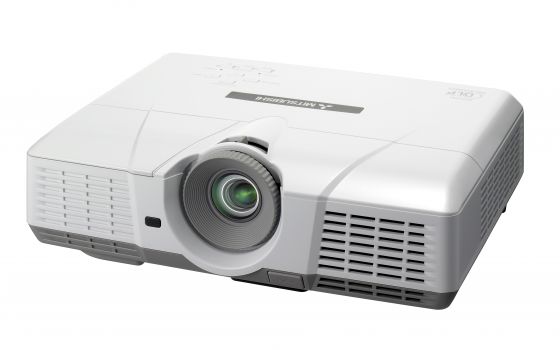

Image Mitsubishi WD510U/G
Customer review
4 from 5 Stars 2 Reviews
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Standard-Portabel sector, the Mitsubishi WD510U is equipped with 2600 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast of 2000:1. According to Mitsubishi, the lamp has a durability of 2000 hours.
Looking at practical performance, up to 518 cm can be illuminated with 2600 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 345 cm.
Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       1 x 0,65" DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2600
Screen
1040 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 1,3000 min. Lumen 0,521 min. Lumen
Offset 59% 11 cm over screen top edge →
SCREEN
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 230 / 180W im Eco Mode Lamp
Article Nr.: VLT-XD510LP
Order Lamp
55,83 - 95,97 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
254 - 309 cm
Lux: 1040 Lux
Contrast: 2000:1
Candela pro m²: 332 cd/m²
Foot-Lamberts: 97 fL
74 cm


Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=2,5-2,8 f=18,4-22,0 mm
Throw Ratio 1,27-1,543:1 show
Audio 2W Mono
Connections DVI-D mit HDCP in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in
RS232C Din 9 pin
USB in
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 332 x 102 x 350 mm (13,1"x4"x13,8") 11,85 L/dm³
Operating Noise 29 dB in Eco Mode

Weight 3,20 kg / 7,05 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 97 fL / max. 518 cm screen width
Candela m² 332 cd/m²
Features Freeze
Eco Mode
Kensington Slot
Gamma correction
Password protection
BrilliantColor™
Overscan adjustable
Screen Mirroring -
In Comparison
The Mitsubishi WD510U/G compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
31 Weight:
85
Contrast:
1 dB: 0
Black level:
95 Power cons.: 0
Picture Total Points:42 Projector Total Points:0
Popularity Top 100
5 popularity points 14 popularity points 10 popularity points 2 popularity points 3 popularity points 7 popularity points
Points:
7
Ranking: 795 (From: 7737)
Optional accessories
Osram bulb only NLMP1793555,83 €
lamp ruby Ruby-LMP1793595,97 €
lamp OriginalVLT-XD510LP / 499B051O10EOL €
Compatible lamp LMP-K1793556,76 €
Universal Remote Fernb-uni-V322,31 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Mitsubishi Website
Product Sheet english
Product Sheet english HC
Product Sheet japanisch
User Manual english (1.7 MB)

Projektor Mitsubishi WD510U/G



Popular Alternatives
2600   ANSI-Lumen
IN116Lightscene EV-115Lightscene EV-110PowerLite 1780WEB 1780W
Model IN116Lightscene EV-115Lightscene EV-110PowerLite 1780WEB 1780W
Ansi-Lumen 27002200220030003000
Specifications WXGA 3D WXGA Laser LAN WLAN MPWXGA Laser LAN WLAN MPWXGA MPWXGA MP
Compare CompareCompareCompareCompareCompare


All: 4 from 5 Stars 2 Reviews

Autor: 04.10.10
5 Stars Hammerteil!!!
Hello everyone,
I bought my WD 510 U on e-bay as an exhibition unit with 0 hours running time for less than 200€ and am completely thrilled with the picture quality and flexibility of the device, the projector would have been worth the usual 700+€ to me. I needed a projector that produces a large, sharp, colorful picture at short distances without fly screens, and now I have it. 1st class!!!
Autor: 27.05.09
3 Stars Question
Lets say I have the choice between the Mitsubishi WD 510 U and the Optoma HD700X for almost the same price. The application would be for watching movies on a PC and possibly playing games on a PC. Which device would you recommend?
