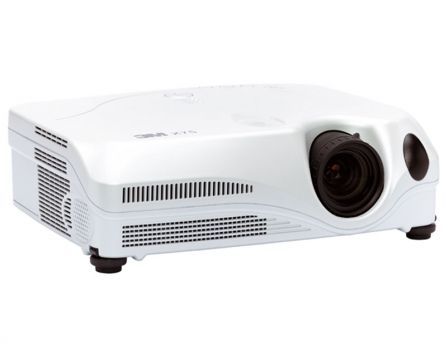

The projector Lumina X75 by 3M operates as a LCD device with 3200 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 400:1. According to 3M, the lamp has a durability of 2000 hours. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. Regarding projection size, the value of 3200 ANSI lumens allows for an image width of up to 493 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 329 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2004, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 0,79" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3200 / 2800 im Eco Mode
Screen
1067 Lux (200 cm Screen width)
Contrast
400:1 full on/off
400:1 full on/off
Black Level
8,0000 min. Lumen
2,688 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, EDTV HDTV 720p, 1080i,
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Freeze Blank (Black screen button) User logo Eco Mode Gamma correction Password protection Remote control with laser pointer und mouse control Control via web browser Lan network compatible. Overscan adjustable Digital Zoom 4x De-interlacer with 3:2 pull down
Freeze
