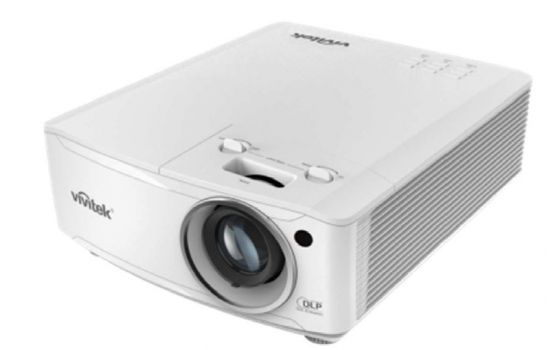

Based on DLP technology, the Vivitek KH5100L projects images in a Stationary environment, with technical specs listing 5000 ANSI lumens, a contrast of 2500000:1 and a HDTV 1920 x 1080 resolution. The manufacturer lists the lifespan for this model at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Distance Calculator. Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 718 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 479 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. Equipped with a microphone jack and built-in speakers (5W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2017 and is no longer part of Vivitek's current product range.
Display Type
1 x 0,65" DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
2222 Lux (200 cm Screen width)
Contrast
2500000:1
2500000:1
Black Level
0,0020 min. Lumen
0,001 min. Lumen
Lens shift
Vert.: +72,50% --61.2% Hori.: +/-5%
Lens shift
11.3%
13cm
5%
10cm
5%
10cm
+
Projector 13 cm over screen top edge.
Resolution
HDTV 1920 x 1080
2.073.600 Pixel WUXGA 1920 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI in MHL
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
Microphone
3D Sync out
USB in
HDBaseT
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
430 / 350W in Eco Mode
Size WxHxD
360,1 x 160 x 450 mm (14,2"x6,3"x17,7") 25,92 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot BrilliantColor™ Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
