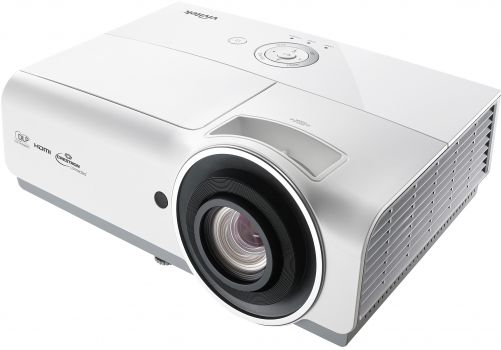

Designed for the Standard-Portabel sector, the DX931 model from Vivitek features 4800 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 15000:1. According to Vivitek, the lamp has a durability of 2500 hours. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. A look at the light output reveals: The 4800 ANSI lumens are sufficient to illuminate an image width of up to 603 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 402 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2018 and is no longer part of Vivitek's current product range.
Display Type
1 x 0,55" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4800
Screen
1600 Lux (200 cm Screen width)
Contrast
15000:1
15000:1
Black Level
0,3200 min. Lumen
0,107 min. Lumen
Offset
63,9% 21 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel WUXGA 1920 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI in(MHL)
D-sub 15pin 2x in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
Microphone
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger
Real Full HD 3D
