SIM2 SUPERCUBE


SIM2 Crystal Cube SUPERCUBE

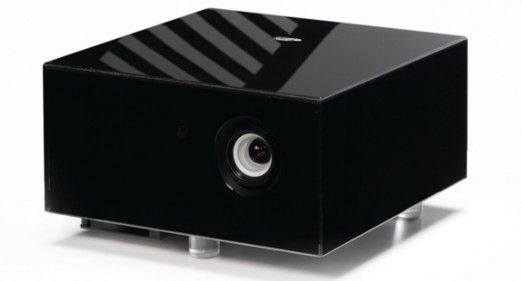

Image SIM2 SUPERCUBE
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector is named SUPERCUBE, comes from SIM2, and its data sheet shows 3000 ANSI lumens and a resolution of HDTV 1920 x 1080.
A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D.
The projector was released in 2015 and is officially no longer distributed by SIM2.
Display Type       1 x DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1333 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset -
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 270W UHP Lamp
Light Life -
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
276 - 410 cm
Lux: 1333 Lux
Contrast:
Candela pro m²: 425 cd/m²
Foot-Lamberts: 124 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,49
Objective -
Throw Ratio 1,38-2,05:1 show
Audio Nein
Connections 2 x HDMI 1.4 in
D-sub 15pin in
YUV in
Cinch Video in
S-Video in
USB Typ A,B in
RS232C Din 9 pin in
12V Trigger out
3D Sync Out
Ceiling Mounting Yes, is possible.
Power 350 / 290W in Eco Mode
Size WxHxD 315 x 190 x 315 mm (12,4"x7,5"x12,4") 18,85 L/dm³
Operating Noise -

Weight 9,00 kg / 19,84 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-102 kHz
V-sync: 24,144 Hz
Foot-Lamberts 124 fL / max. 556 cm screen width
Candela m² 425 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
6-segment RGBRGB colour wheel
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The SIM2 SUPERCUBE compared to others not current "Stationary" projectors.
Ansi-Lumen:
28 Weight:
99
Contrast: 0 dB: 0
Black level: 0 Power cons.:
97
Picture Total Points:0 Projector Total Points:0
Popularity Top 100
8 popularity points 3 popularity points 4 popularity points 0 popularity points 1 popularity points 1 popularity points
Points:
1
Ranking: 2119 (From: 2536)
Status 2015 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
SIM2 Website
Product Sheet english
Product Sheet english HC
User Manual english (3.57 MB)
