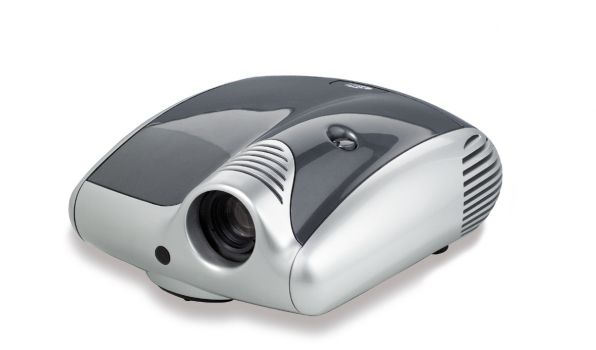

The projector Grand Cinema C3X LINK by SIM2 operates as a DLP device with 2500 ANSI lumens, a HDTV 1280 x 720 resolution and a contrast of 6500:1. According to SIM2, the included lamp lasts up to 1500 hours. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Lens Calculator. Looking at practical performance, up to 508 cm can be illuminated with 2500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 339 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2005 and is officially no longer distributed by SIM2. Important maintenance note: It is no longer possible to procure replacement lamps for this model.
Display Type
3 x HD2+ DC3 DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Calculated brightness quality The screen width may also be larger. Perfect
300 - 400 cm
Lux:
1111 Lux
Contrast:
6500:1
Candela pro m²:
353 cd/m²
Foot-Lamberts:
103 fL
56 cm
•
Focus
Powered
Zoom
Powered 1,3
Objective
Throw Ratio
optional
Audio
Nein
Connections
DigiOptic® Image-Prozessor: Anschlüsse
1 x Cinch Video in
1 x S-Video in
1 x D-sub 15pin in
1 x RGBH/V YCrCb über RCA
1 x RGBH/V YCrCb über 5 BNC Anschlüsse
1 x DVI® über DVI-D Anschluss
3 x Anschluss für optisches Fiberglaskabel über RJ-45 Typ LC Anschlüsse
1 x HDMI mit HDCP
1 x optical S/PDIF Audio-Ausgang von HDMI®
1 x RS232 9 pin
1 x USB
2 x 12V Trigger
1 x Input externer IR-Sensor
Full HD 1080P compatible Lens shift Funktion Freeze Gamma correction Overscan adjustable External video processor included. DCDi® by Faroudja (FLI2310) Case colour: Dark Metal Gray / Silver Bicolour Digital Zoom Skin Tone Control
Full HD 1080P compatible
SIM2 Website
Product Sheet english
