Eiki LC XT1
Image Eiki LC XT1
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Stationary sector, the Eiki LC XT1 is equipped with 5000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 700:1. The manufacturer rates the durability of the included lamp at 1000 hours.
Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Lens Calculator.
A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 616 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 411 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
This model dates back to 2002 and is no longer part of Eiki's current product range. As an archive device, the projector remains highly relevant in our database.
Display Type       3 x 1,8" LCD TFT Panel mit MLA
      XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
 5000
Screen
 1667 Lux (200 cm Screen width)
Contrast 700:1 full on/off 700:1 full on/off
Black Level 7,1429 min. Lumen 2,392 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-10%
 Lens shift
 		50%  75cm
50%  75cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 4 x 150W UHP Lamp
Article Nr.: 610 284 4627
Order Lamp
67,26 - 129,25 €
Light Life 1000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 1667 Lux
Contrast: 700:1
Candela pro m²: 531 cd/m²
Foot-Lamberts: 155 fL
75 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio 3 x 3W

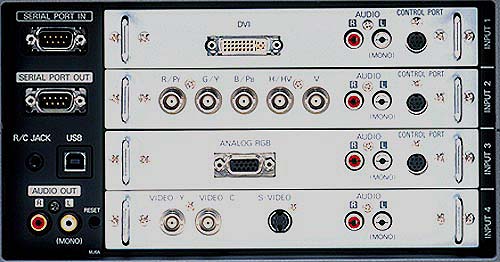

Connections 4 mal Cinch Audio in 1 xAus.
DVi in
USB in
Maus Controler
D-sub 15pin in Aus.
S Video Eingang
Mini Jack
3 x RS 232 Controler
Mini Jack in
Anschlüsse Bild
Ceiling Mounting Yes, is possible.
Power 670W
Size WxHxD 581 x 250 x 792 mm (22,9"x9,8"x31,2") 115,04 L/dm³
Operating Noise 40dB

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Shift: 75 cm
Weight 35,50 kg / 77,16 lbs.
Keystone Vert.: +/-30°
Illumination 90%
Frequenz H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 230 MHz
Foot-Lamberts 155 fL / max. 616 cm screen width
Candela m² 531 cd/m²
Features Lens shift Funktion
Freeze
Remote control with laser pointer und mouse control
digital zoom
Screen Mirroring -
In Comparison
The Eiki LC XT1 compared to others not current "Stationary" projectors.
Ansi-Lumen:
49 Weight:
84
Contrast:
1 dB:
93
Black level:
79 Power cons.:
92
Picture Total Points:43 Projector Total Points:90
Popularity Top 100
25 popularity points 29 popularity points 29 popularity points 2 popularity points 20 popularity points 10 popularity points
Points:
10
Ranking: 45 (From: 2536)
Optional accessories
lamp ruby Ruby-LMP3399129,25 €
lamp Original610-284-4627 / LMP29 / ET-SLMP29EOL €
Compatible lamp LMP-K140067,26 €
air filter compatible Alternative zu:MT8A / 910 301 481522,31 €
Universal Remote Fernb-uni-V322,31 €
air filter OriginalMT8A / 910 301 4815EOL €
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
AH-32581 (T03) 6.12-8.89:1 1224-1778 m +/-40% +/-10% Manual
0001-4228 5.09-8.48:1 1018-1696 m +/-40% +/-10% Manual
AH-21091 (T02) 4.29-6:1 858-1200 m +/-40% +/-10% Powered
0001-4231 3.14-5.02:1 628-1004 m +/-40% +/-10% Manual
AH-21022 (M01Z) 3.38-4.39:1 676-878 m +/-40% +/-10% Powered
AH-22051 (S03) 2.63-3.56:1 526-712 m +/-40% +/-10% Powered
AH-21102 (S02Z) 2.05-2.65:1 410-530 m +/-50% +/-10% Powered
AH-32401 (W04) 1.59-2.08:1 318-416 m +/-40% +/-10% Powered
AH-21202 (W02Z) 1.42-1.84:1 284-368 m +/-40% +/-10% Powered
AH-32601 (W06) 1.24-1.57:1 248-314 m +/-40% +/-10% Powered
AH-21032 (T01Z) 6.89:1 1378 m +/-40% +/-10% No Zoom
AH-21012 (W01Z) 1.21:1 242 m +/-40% +/-10% No Zoom
AH-32021 (W03) 0.81:1 162 m 0.0% Fix No Zoom
0001-4225 1.21:1 242 m 0.0% Fix No Zoom
0001-4226 1.45:1 290 m 0.0% Fix No Zoom
0001-4240 9.65:1 1930 m +/-40% +/-10% No Zoom
Status 2002 Discontinued (EOL) // Last update of the data: 2026-06-09
