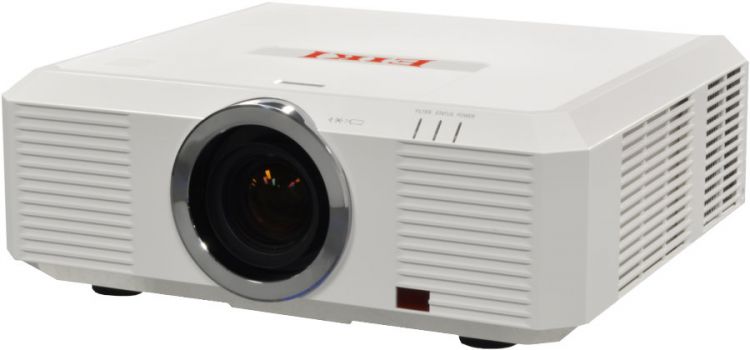

Categorized in the Stationary segment, the EK-512X projector from Eiki projects with a XGA 1024 x 768 resolution, alongside 7000 ANSI lumens and a contrast of 2500:1. The runtime of the lamp in this model is estimated at 3000 hours before a replacement is necessary. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projector Calculator. Looking at practical performance, up to 729 cm can be illuminated with 7000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 486 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2017 and is no longer part of Eiki's current product range.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
430 Lamp
Light Life
3000 h. 4000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
1 x D-Sub 15-pin
2 x HDMI (1 x mit MHL-Unterstützung)
1 x 5BNC (RGB / Video / Y, Cb / Pb, Cr / Pr)
1 x 3BNC (Komponenten)
1 x BNC (Video)
1 x S-Video
2 x 3,5 mm Mini Jack (Audio)
2 x RCA Audio (R / L)
1 x 3,5 mm Mini Jack (Fernbedienung)
1 x RJ45 (LAN)
1 x D-Sub 9-pin (RS232 kompatibel)
1 x Micro-USB
1 x UBS Type A
1 x D-Sub 15-pin
1 x 3,5 mm Mini Jack (Audio)
1 x 3,5 mm Mini Jack (Fernbedienung)
Full HD 1080P compatible
