Eiki EIP WSS3100/B


EIKI EIP-WSS3100B
Image Eiki EIP WSS3100/B
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The technical data of the Eiki EIP WSS3100 includes 3100 ANSI lumens, a contrast of 8000:1 as well as a WXGA 1280 x 800 display. The manufacturer rates the durability of the included lamp at 3000 hours.
Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 70 cm is sufficient to generate an image width of 2 meters.
Regarding projection size, the value of 3100 ANSI lumens allows for an image width of up to 566 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 377 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model. As an archive device, the projector remains highly relevant in our database.
Display Type       1 x 0,65" DDR DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3100
Screen
1240 Lux (200 cm Screen width)
Contrast 8000:1 full on/off 8000:1 full on/off
Black Level 0,3875 min. Lumen 0,155 min. Lumen
Offset -
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.

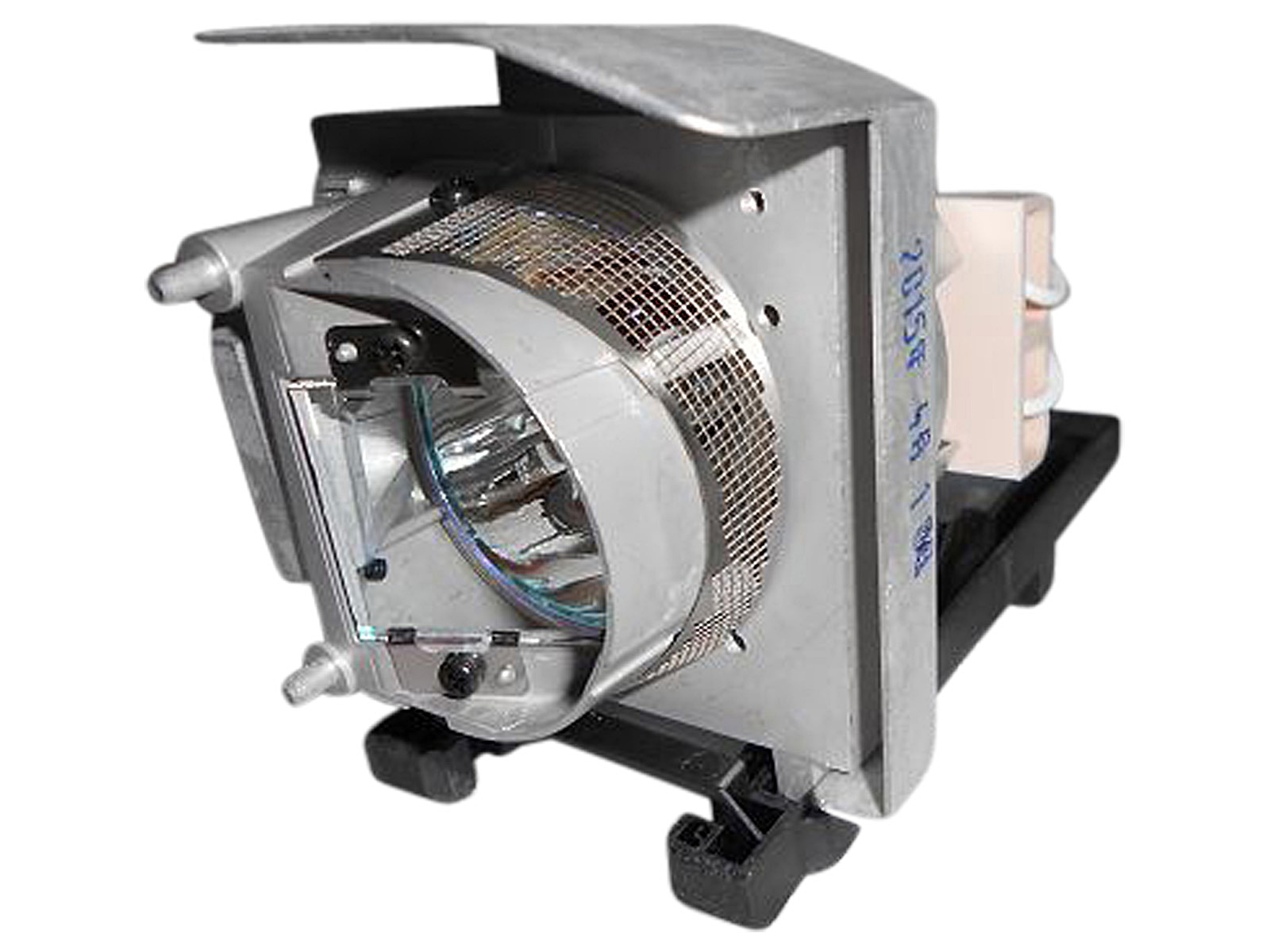

Light Source 280W UHP Lamp
Article Nr.: 13080021
Order Lamp
80,72 - 197,40 €
Light Life 3000 h. 4000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
70 cm (no Zoom)
Lux: 1240 Lux
Contrast: 8000:1
Candela pro m²: 394 cd/m²
Foot-Lamberts: 115 fL

Screen width:cm
          Room:
Focus Manual
Zoom No Zoom
Objective F=2,6 f=5,27mm
Throw Ratio 0,35:1
Audio 10W
Connections HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C Din 9 pin in
RJ45 in
Mini USB in
Ceiling Mounting Yes, is possible.
Power 350 / 290W in Eco Mode
Size WxHxD 357 x 135 x 357 mm (14,1"x5,3"x14,1") 17,21 L/dm³
Operating Noise 37 / 33 dB in Eco Mode
Key: 19 cm

Without offset

Key: 19 cm

Weight 8,00 kg / 17,64 lbs.
Keystone Vert.: +/-15°
Illumination 80%
Frequenz H-sync: 15-100 kHz
V-sync: 24-120 Hz
Foot-Lamberts 115 fL / max. 566 cm screen width
Candela m² 394 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Whiteboard function
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Eiki EIP WSS3100/B compared to others not current "Short Distance" projectors.
Ansi-Lumen:
36 Weight:
86
Contrast:
1 dB:
24
Black level:
99 Power cons.:
92
Picture Total Points:45 Projector Total Points:67
Popularity Top 100
12 popularity points 30 popularity points 26 popularity points 14 popularity points 8 popularity points 14 popularity points
Points:
14
Ranking: 144 (From: 990)
Optional accessories
Osram bulb only NLMP2232786,37 €
lamp ruby Ruby-LMP22327103,03 €
lamp Original13080021197,40 €
Compatible lamp LMP-K2232780,72 €
remote control OriginalBR-1006N28,86 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2013 Discontinued (EOL) // Last update of the data: 2026-06-09
