Brief Introduction
Beta 2.5 |

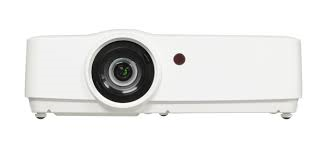

The Eiki EK-305U LCD projector has 5000 Ansi-Lumen, a contrast of 8000:1 and a WUXGA 1920 x 1200 resolution. With the lens shift function, the projector can be positioned very freely. Thanks to the brightness of 5000 Ansi lumens, a picture width of 718 cm is possible. The projector can also handle slightly brighter rooms with a smaller image width (we recommend max. 479 cm). A smartphone with an MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz screen mirroring. It is also Full HD 1080P compatible. On the market since 2016, the model is no longer offered by the manufacturer Eiki.
|
| Display Type |
3 x 0,64" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
8000:1 full on/off |
8000:1 full on/off
|
| Black Level |
0,6250 min. Lumen |
0,278 min. Lumen |
| Lens shift |
Vert.: +/-45% Hori.: +/-10%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
280W UHP Lamp
Article Nr.: 23040049 / 22040001
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
280 - 460 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 51 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,64 |
| Objective |
F=1,65-2,65 f=18,2-29,38 mm |
| Throw Ratio |
1,4-2,3:1 show |
| Audio |
10W momo |
| Connections |
2 x HDMI mit MHL in
DVI in
2 x D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
345W |
| Size WxHxD |
317 x 127 x 39,4 mm (12,5"x5"x1,6") 1,57 L/dm³
|
| Operating Noise |
40 / 33 dB in Eco Mode |
Key: 162 cm
Shift: 51 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-85 Hz
Range max.: 150 MHz |
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Lan network compatible.
Crestron®-Software compatible.
|
|
über HDMI MHL |
In Comparison
The Eiki EK-305U compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
23 |
| Black level: |
|
98 |
Power cons.: |
|
96 |
| Picture Total Points: | 53 |
Projector Total Points: | 66 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4888 (From: 7662) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2016-09-27 15:23:36
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (26.34 MB)

|
Eiki Contact
