JVC LX D1020
Image JVC LX D1020
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The JVC LX D1020 is a LCD projector offering 1300 ANSI lumens, a contrast of 200:1 and a resolution of XGA 1024 x 768. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
Looking at practical performance, up to 314 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 209 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       3 x 1,3" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1300
Screen
 433 Lux (200 cm Screen width)
Contrast 200:1 full on/off 200:1 full on/off
Black Level 6,5000 min. Lumen 2,198 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, NTSC, Secam HDTV 1080p,1080i,720p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

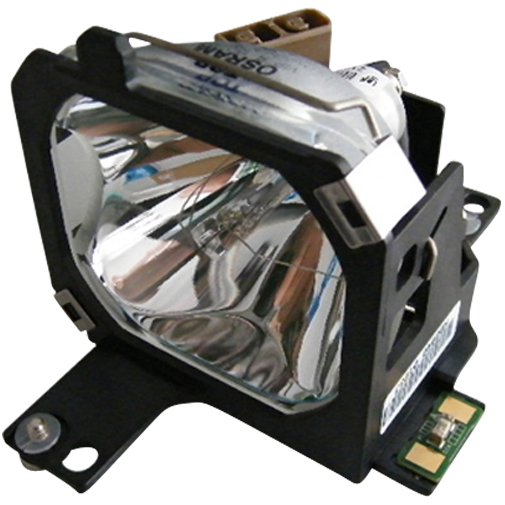

Light Source 150W UHE Lamp
Article Nr.: BHNEELPLP09-SA
Order Lamp
68,06 - 94,61 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
416 - 546 cm
Lux: 433 Lux
Contrast: 200:1
Candela pro m²: 137 cd/m²
Foot-Lamberts: 40 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,31
Objective F=2,0-2,3 f=55-72 mm
Throw Ratio 2,08-2,73:1 show
Audio 1W Mono
Connections Cinch Video in
Stereo Eingang
2 xD-sub 15pin in
VGA Ausgang
S Video Eingang
2 xMaus Port Mini Jack 2 xEin 1 xAus 5 BNC Eingang
Ceiling Mounting -
Power 250W
Size WxHxD 300 x 119 x 363 mm (11,8"x4,7"x14,3") 12,96 L/dm³
Operating Noise -

Weight 6,20 kg / 13,67 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-107 kHz
V-sync: 43-85 Hz
Range max.: 203 MHz
Foot-Lamberts 40 fL / max. 314 cm screen width
Candela m² 137 cd/m²
Features Full HD 1080P compatible
Picture-in-Picture
Screen Mirroring -
In Comparison
The JVC LX D1020 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
14 Weight:
70
Contrast:
1 dB: 0
Black level:
76 Power cons.:
98
Picture Total Points:30 Projector Total Points:0
Popularity Top 100
0 popularity points 5 popularity points 4 popularity points 1 popularity points 2 popularity points 4 popularity points
Points:
4
Ranking: 3387 (From: 7737)
Optional accessories
Philips bulb only NLMP203972,47 €
lamp ruby Ruby-LMP203994,61 €
lamp OriginalBHNEELPLP09-SAEOL €
Compatible lamp LMP-K203968,06 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
