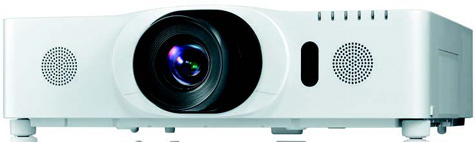

The hardware properties of the ImagePro 8978W manufactured by Dukane include 6500 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast value of 3000:1. The manufacturer rates the durability of the included lamp at 2000 hours. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator. A look at the light output reveals: The 6500 ANSI lumens are sufficient to illuminate an image width of up to 819 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 546 cm. Regarding signal processing, the model is compatible with incoming 1080P content. An additional 360° projection capability allows the device to be oriented at almost any angle. Also on board is a local media player that allows reading and playing content directly from storage media. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x LCD TFT Panel WXGA 16/10 Liquid Crystal Display
Ansi-Lumen
Projector
6500
Screen
2600 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
2,1667 min. Lumen
0,867 min. Lumen
Offset
-
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: • JPEG (.jpeg, .JPEG)
• Bitmap (.bmp)
• PNG (.png)
• GIF (.gif)
• Movie (.avi, .mov)
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
2 x HDMI in
5 x BNC RGBHV in
2 x D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
500W
Size WxHxD
498 x 135 x 396 mm (19,6"x5,3"x15,6") 26,62 L/dm³
Operating Noise
39 / 33 dB in Eco Mode
Key: 210 cm
Key: 210 cm
Without offset
Key: 210 cm
Key: 210 cm
Weight
8,70 kg / 19,18 lbs.
Keystone
Vert.: +/-35° Hori.: +/-35°
Illumination
-
Frequenz
H-sync: 31,5-106 kHz V-sync: 56-120 Hz Range max.: 150 MHz
Full HD 1080P compatible Integrated Mediaplayer Freeze User logo Eco Mode Kensington Slot Gamma correction Dynamic iris 360° installable Picture-in-Picture Password protection Remote control with mouse control PJLink™ Control via web browser Optional Wi-Fi network compatible. Lan network compatible. Picture in Picture DICOM Support. Status Monitor Display on rear.
Full HD 1080P compatible
