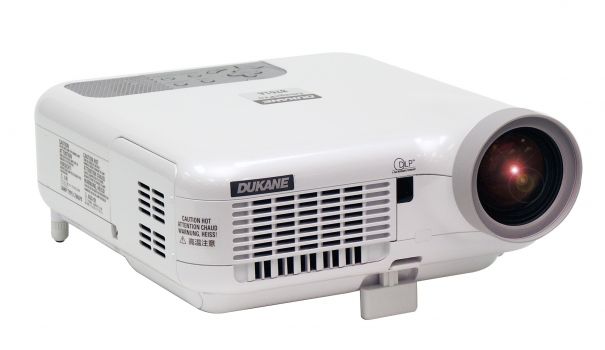

Known as the ImagePro 8761A, this DLP projector by Dukane features basic specs of 2500 ANSI lumens, a contrast of 1600:1 at a XGA 1024 x 768 resolution. According to Dukane, the lamp has a durability of 2000 hours. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Looking at practical performance, up to 435 cm can be illuminated with 2500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 290 cm. Also on board is a local media player that allows reading and playing content directly from storage media. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. This model dates back to 2005 and is no longer part of Dukane's current product range.
Display Type
1 x 0,7" 12° DDR DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2500 / 2000 im Eco Mode
Screen
833 Lux (200 cm Screen width)
Contrast
1600:1 full on/off
1600:1 full on/off
Black Level
1,5625 min. Lumen
0,522 min. Lumen
Offset
70% 30 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
UXGA 1600×1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: idx-, Text-, HTML-, JPEG- und BMP-Format
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Integrated Mediaplayer Freeze Eco Mode Kensington Slot sRGB Gamma correction Dynamic iris Password protection Remote control with laser pointer Control via web browser Lan network compatible. Overscan adjustable
Integrated Mediaplayer
