Dukane ImagePro 8783

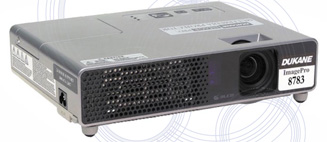

Image Dukane ImagePro 8783
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Dukane ImagePro 8783 is a LCD projector offering 2000 ANSI lumens, a contrast of 500:1 and a resolution of WXGA 1280 x 800. According to Dukane, the lamp has a durability of 2000 hours.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 454 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 303 cm.
Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,59" LCD TFT Panel
      WXGA 16/10 Liquid Crystal Display
Ansi-Lumen
Projector
 2000 / 1600 im Eco Mode
Screen
 800 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 4,0000 min. Lumen 1,608 min. Lumen
Offset -
Resolution WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 190W UHB Lamp
Article Nr.: 456-8783
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
300 - 360 cm
Lux: 800 Lux
Contrast: 500:1
Candela pro m²: 254 cd/m²
Foot-Lamberts: 74 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,7-1,9
Throw Ratio 1,5-1,8:1 show
Audio 1 x 1W
Connections HDMI in
2 x D-sub 15 pin in
S-Video in
Cinch Video in
Mini Jack Audio in und out
USB Typ B in
Ceiling Mounting Yes, is possible.
Power 310W
Size WxHxD 274 x 65 x 205 mm (10,8"x2,6"x8,1") 3,65 L/dm³
Operating Noise 40 / 33 dB in Eco Mode
Key: 173 cm

Without offset

Key: 173 cm
Weight 1,77 kg / 3,9 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-106 kHz
V-sync: 50-120 Hz
Foot-Lamberts 74 fL / max. 454 cm screen width
Candela m² 254 cd/m²
Features Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with mouse control
Wi-Fi network compatible.
Lan network compatible.
De-interlacer with 3:2 pull down..
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Dukane ImagePro 8783 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
92
Contrast:
1 dB:
23
Black level:
85 Power cons.:
97
Picture Total Points:36 Projector Total Points:71
Popularity Top 100
1 popularity points 4 popularity points 3 popularity points 0 popularity points 1 popularity points 2 popularity points
Points:
2
Ranking: 6719 (From: 7737)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Dukane Website
Product Sheet english
Product Sheet english HC
User Manual english (5.83 MB)
