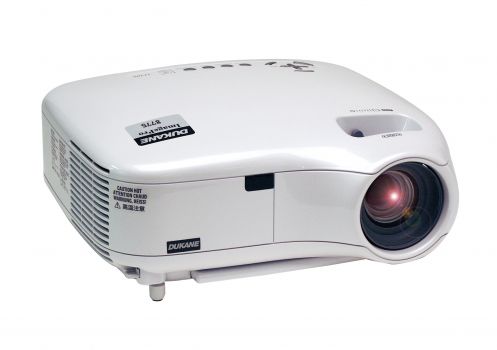

As a projector, the Dukane ImagePro 8775 combines LCD technology with a resolution of XGA 1024 x 768, and is additionally specified with 3000 ANSI lumens and a contrast of 600:1. According to Dukane, the lamp has a durability of 2000 hours. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2006, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 0,8" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3000 / 2200 im Eco Mode
Screen
1000 Lux (200 cm Screen width)
Contrast
600:1 full on/off
600:1 full on/off
Black Level
5,0000 min. Lumen
1,675 min. Lumen
Offset
35% 22 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source
200 / 152W im Eco Mode Lamp Article Nr.: 456-8767A
Light Life
2000 h. 3000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
Freeze
Dukane Website
Product Sheet english
