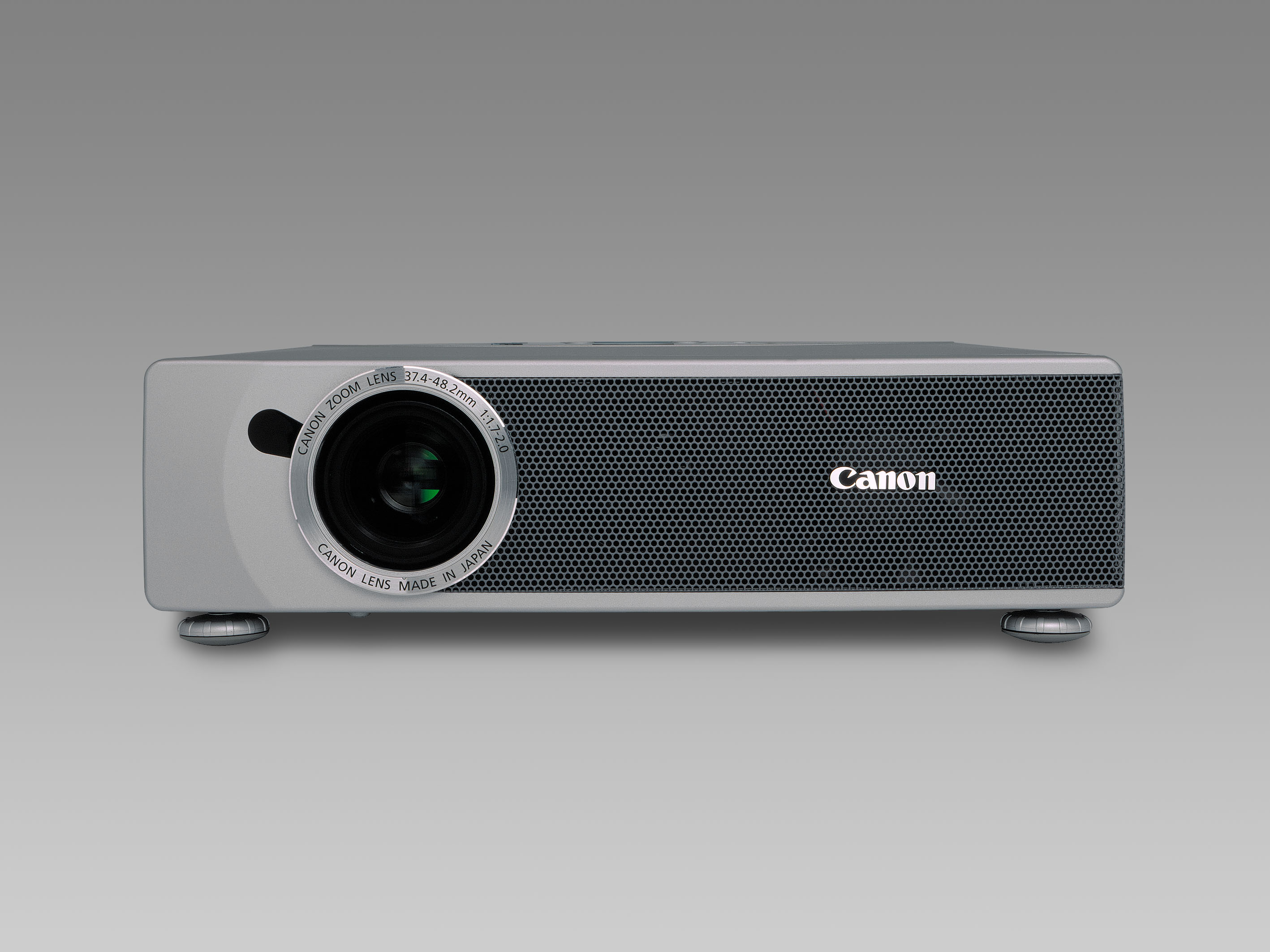

Designed for the Standard-Portabel sector, the LV 7340 model from Canon features 1300 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 350:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. Looking at practical performance, up to 314 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 209 cm. This device is no longer manufactured and has been removed from Canon's current lineup.
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43 PAL-M or PAL-N
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Audio-Pin (L/R) x 1
Composite-Video x 1
S-Video x 1
Ausgang Video Mini-Stereo-Typ Audio x 1
Mini-DIN 8-Pin-Typ x 1
USB/ DVI (Digital Video Interface)
Mini-Stereo Typ Audio x 1
HDB 15 Pin x 1
Ceiling Mounting
Yes, is possible.
Power
300W
Size WxHxD
331,5 x 89,5 x 231,7 mm (13"x3,5"x9,1") 6,81 L/dm³
Operating Noise
37dB
Key: 209 cm
Key: 89 cm
Weight
4,00 kg / 8,82 lbs.
Keystone
Vert.: +/-20°
Illumination
85%
Frequenz
H-sync: 15-100 kHz V-sync: 50-100 Hz Range max.: 140 MHz
Freeze Eco Mode Gamma correction Remote control with laser pointer und mouse control Digital Zoom Automatic detection of video input signal Power management: automatic switch-off after 5 min
Freeze
