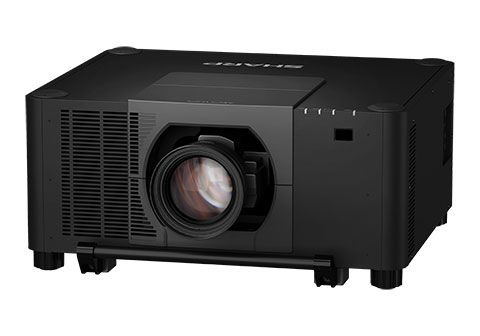

As a projector for the Event sector, the Sharp XP-A201U-B is equipped with 20000 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast of 3000000:1. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projection Calculator is available to calculate the exact dimensions. Looking at practical performance, up to 1437 cm can be illuminated with 20000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 958 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable.
Display Type
3 x LCD Panel WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
20000
Screen
8889 Lux (200 cm Screen width)
Contrast
3000000:1
3000000:1
Black Level
0,0067 min. Lumen
0,003 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
RB Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
8889 Lux
Contrast:
3000000:1
Candela pro m²:
2830 cd/m²
Foot-Lamberts:
826 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI (V2.0) w/HDCP (V2.2/1.4)
HDMI (V2.0) w/HDCP (V2.2/1.4)
HDBaseT w/HDCP (V2.2/1.4)
3G / HD/ SD SDI (SMPTE ST 424M / SMPTE 292M / SMPTE 259M)
Mini Jack Audio out
USB 2.0 in
RS232C Din 9 pin in
RJ45 in
Wired Remote
Full HD 1080P compatible User logo Eco Mode Kensington Slot High Dynamic Range (HDR) Warping 360° installable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. AMX Beacon Extron XTP Multi-display support (TileMatrix, Screen Splitter) Synchronous Control Advanced AccuBlend? 64-step image magnification Built-in HTTP page
Full HD 1080P compatible
