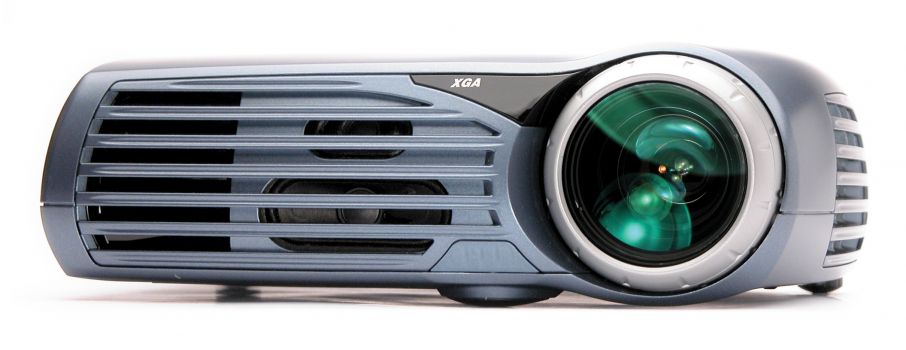

With the evo+, projectiondesign offers a DLP projector that features 2600 ANSI lumens, a contrast of 2000:1 and a resolution of XGA 1024 x 768. The manufacturer rates the durability of the included lamp at 2000 hours. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Distance Calculator. Regarding projection size, the value of 2600 ANSI lumens allows for an image width of up to 444 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 296 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 28 decibels. Since entering the market in 2005, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,7" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2600
Screen
867 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
1,3000 min. Lumen
0,434 min. Lumen
Offset
63% 20 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel SXGA 1280 x 1024 compressed
Video Modes
1080i, 720p, pal, ntsc, secam
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Freeze
