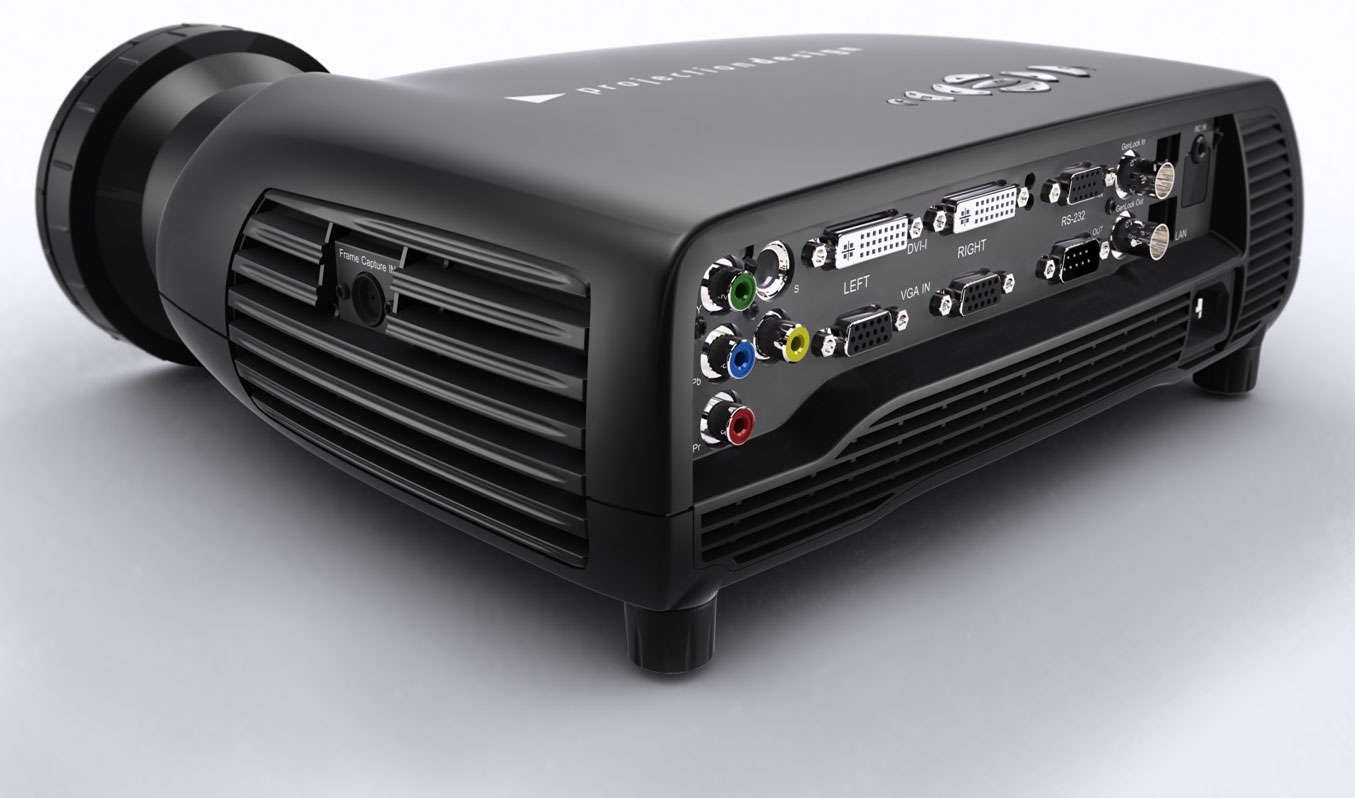

Categorized in the Standard-Portabel segment, the F10 AS3D projector from projectiondesign projects with a SXGA+ 1400 x 1050 resolution, alongside 2000 ANSI lumens and a contrast of 3000:1. In operating mode, the installed projector lamp offers a lifespan of 2250 hours. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. Looking at practical performance, up to 389 cm can be illuminated with 2000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 259 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2008 and is officially no longer distributed by projectiondesign.
Display Type
1 x DLP Chip SXGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
0,6667 min. Lumen
0,223 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
SXGA+ 1400 x 1050
1.470.000 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Full HD 1080P compatible
