Kindermann KX 170

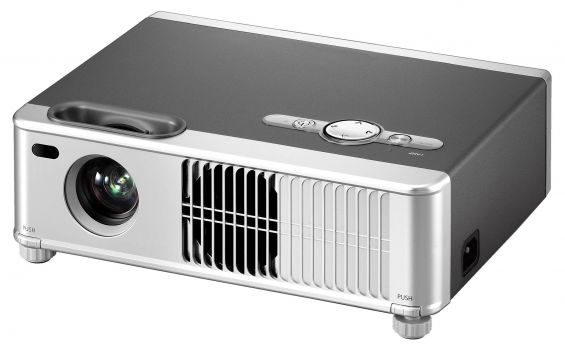

Image Kindermann KX 170
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Known as the KX 170, this LCD projector by Kindermann features basic specs of 2500 ANSI lumens, a contrast of 400:1 at a XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
Looking at practical performance, up to 435 cm can be illuminated with 2500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 290 cm.
This model dates back to 2008 and is no longer part of Kindermann's current product range.
Display Type       3 x 0,63" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2500
Screen
 833 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 6,2500 min. Lumen 2,098 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

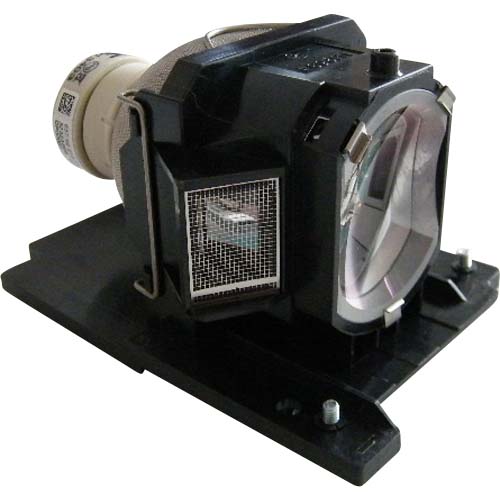

Light Source 205W Lamp
Article Nr.: LMP19397
Order Lamp
54,54 - 76,53 €
Light Life 2000 h.
Operating Costs
| cheap costly |
1
  9,52% / 0,04 €
Calculated brightness quality Perfect
300 - 360 cm
Lux: 833 Lux
Contrast: 400:1
Candela pro m²: 264 cd/m²
Foot-Lamberts: 77 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective f=18,85-22,63 mm
Throw Ratio 1,5-1,8:1 show
Audio 1 x 2W
Connections DVI-D in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini jack Audio in
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 298 x 98 x 224 mm (11,7"x3,9"x8,8") 6,54 L/dm³
Operating Noise 34 / 32 dB in Eco Mode
Key: 80 cm

Without offset

Key: 80 cm
Weight 3,20 kg / 7,05 lbs.
Keystone Vert.: +/-15°
Illumination -
Frequenz H-sync: 15-80 kHz
V-sync: 50-58 Hz
Foot-Lamberts 77 fL / max. 435 cm screen width
Candela m² 264 cd/m²
Features Eco Mode
Screen Mirroring -
In Comparison
The Kindermann KX 170 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
29 Weight:
85
Contrast:
1 dB:
38
Black level:
77 Power cons.: 0
Picture Total Points:36 Projector Total Points:0
Popularity Top 100
4 popularity points 4 popularity points 0 popularity points 0 popularity points 1 popularity points 2 popularity points
Points:
2
Ranking: 7641 (From: 7736)
Optional accessories
Osram bulb only NLMP1939760,88 €
lamp ruby Ruby-LMP1939776,53 €
lamp Original8787EOL €
Compatible lamp LMP-K1939754,54 €
Ceiling Mount 100-120 Halterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
