	PDF/Print Version		Add to Watchlist		3D Room Calculator		Comparison >>

TOSHIBA TDP-T45U

Customer review

✎ Help other users and be the first to share your review.

✎ Help other and be the first to share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

Based on DLP technology, the Toshiba TDP T45 device delivers 2500 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 2000:1 as a projector. The manufacturer lists the lamp life at 2000 hours.
Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 435 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 290 cm.
This model dates back to 2006 and is no longer part of Toshiba's current product range.

Display Type

1 x 0,55" DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

2500

Screen

833 Lux (200 cm Screen width)

Contrast

2000:1 full on/off

Black Level

1,2500 min. Lumen

0,417 min. Lumen

Offset

66,5% 25 cm over screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

Light Source

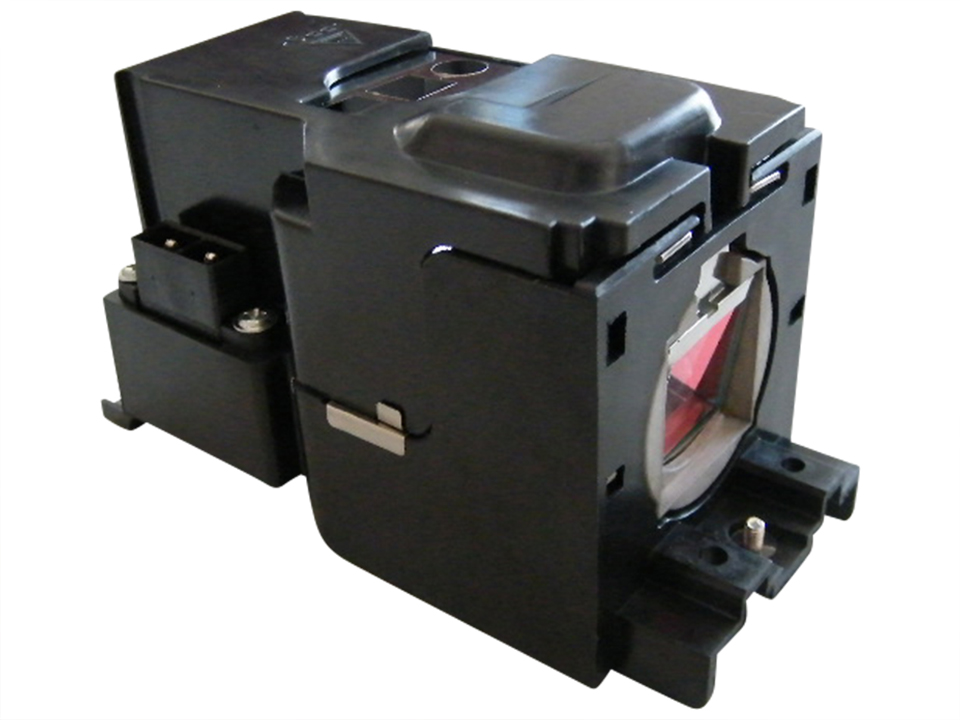

180W Lamp
Article Nr.: TLP-LV8 TLPLV8LAMP

Order Lamp
74,96 - 92,24 €

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

Calculated brightness quality Perfect

348 - 402 cm


	Lux:	833 Lux
	Contrast:	2000:1
	Candela pro m²:	264 cd/m²
	Foot-Lamberts:	77 fL

100 cm

•

Focus

Manual

Zoom

Manual 1,2

Objective

F=2,0-2,15 f=19,40-22,50 mm

Throw Ratio

1,74-2,01:1 show

Audio

1W Mono

Connections

2 x D-sub 15pin in 1 x out
S-Video in
Cinch Video in
2 x Cinch Stereo in
Mini jack in
RS232C

Ceiling Mounting

Yes, is possible.

Power

260W

Size WxHxD

285 x 98 x 254 mm (11,2"x3,9"x10") 7,09 L/dm³

Operating Noise

34 / 31 dB in Eco Mode

Key: 193 cm

	Key: -7 cm

Weight

2,99 kg / 6,59 lbs.

Keystone

Vert.: +/-15°

Illumination

Frequenz

H-sync: 15,7-160,2 kHz
V-sync: 50-85 Hz

Foot-Lamberts

77 fL / max. 435 cm screen width

Candela m²

264 cd/m²

Features

Freeze

Eco Mode

Kensington Slot

Screen Mirroring

In Comparison

The Toshiba TDP T45 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

808 (From: 7737)

Optional accessories
	lamp Original	TLPLV8	EOL €
	lamp ruby	Ruby-LMPe5754	92,24 €
	Compatible lamp	LMP-Ke5754	74,96 €
	Universal Remote	Fernb-uni-V3	22,31 €
	Ceiling Mount 100-120	Halterung100	47,86 €

Status

2006 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet english

Product Sheet english HC

Product Sheet USA

Press release english

User Manual english (2.95 MB)
