Brief Introduction
Beta 2.5 |

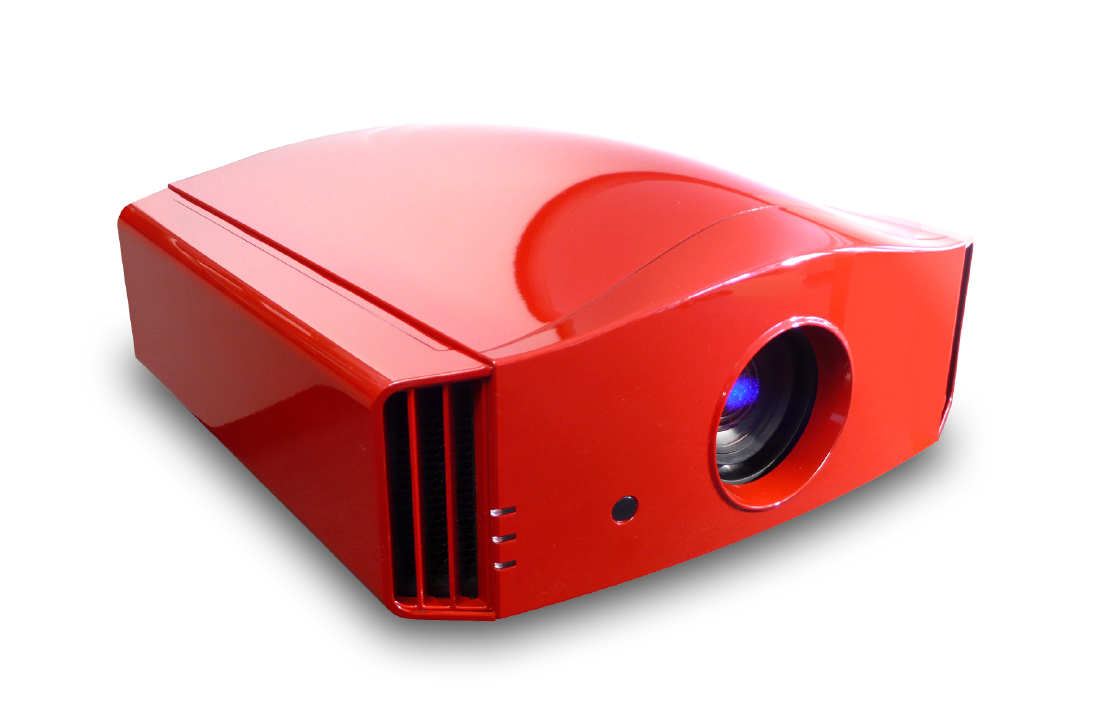

A brief introduction to the SIGLOS Ultra 3: The DreamVision high-end home cinema 3D LCOS projector offers 2000 Ansi lumens, a contrast of 160000:1 and a UHD (4K2K) 3840 x 2160 resolution. The manufacturer specifies a lamp life of 4500 hours, which is over 6.2 years with a daily viewing time of 2 hours. Including a lens shift and keystone correction function, which provides freedom during installation. 454 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 303 cm. Playback of 1080P and 4K as well as 3D is also no problem for the projector, which means that all Blu-ray formats currently available can be recognized by the projector. The projector is very quiet compared to other projectors with an operating noise of 19 decibels. This model is no longer offered by DreamVision.
|
| Display Type |
3 x 0,7" LCoS Chip
HDTV 16/9 Liquid Crystal on Silicon (LCOS)
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
889 Lux (200 cm Screen width) |
| Contrast |
160000:1 full on/off |
160000:1 full on/off
|
| Black Level |
0,0125 min. Lumen |
0,006 min. Lumen |
| Lens shift |
Vert.: +/-80% Hori.: +/-34%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
HD4K 4096 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
High-End Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
265W NSH Lamp
|
|
| Light Life |
4500 h. |
| Operating Costs |
-
|
|
280 - 560 cm
|
 |
|
Lux: |
889 Lux |
|
Room light max.: |
178 Lux |
|
Candela pro m²: |
284 cd/m² |
|
Foot-Lamberts: |
83 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2 |
| Objective |
F=3,2-4,0 f=21,4-42,80 mm |
| Throw Ratio |
1,4-2,8:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 2.0b mit HDCP 2.2
YUV in
RS232C
RJ45 in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W |
| Size WxHxD |
505 x 215 x 455 mm (19,9"x8,5"x17,9") 49,4 L/dm³
|
| Operating Noise |
19dB |
Key: 80 cm
Shift: 90 cm |
Shift: 68 cm
|
|
Shift: 68 cm
|
| |
|
|
| Weight |
15,10 kg / 33,07 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
83 fL
/ max. 454 cm screen width |
| Candela m² |
284 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
High Dynamic Range (HDR)
Remote control with backlight
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The DreamVision SIGLOS Ultra 3 compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
16 |
Weight: |
|
72 |
| Contrast: |
|
10 |
dB: |
|
100 |
| Black level: |
|
100 |
Power cons.: |
|
88 |
| Picture Total Points: | 42 |
Projector Total Points: | 87 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
418 (From: 499) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2017-04-20 12:03:39
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (4.15 MB)
|
DreamVision Website
