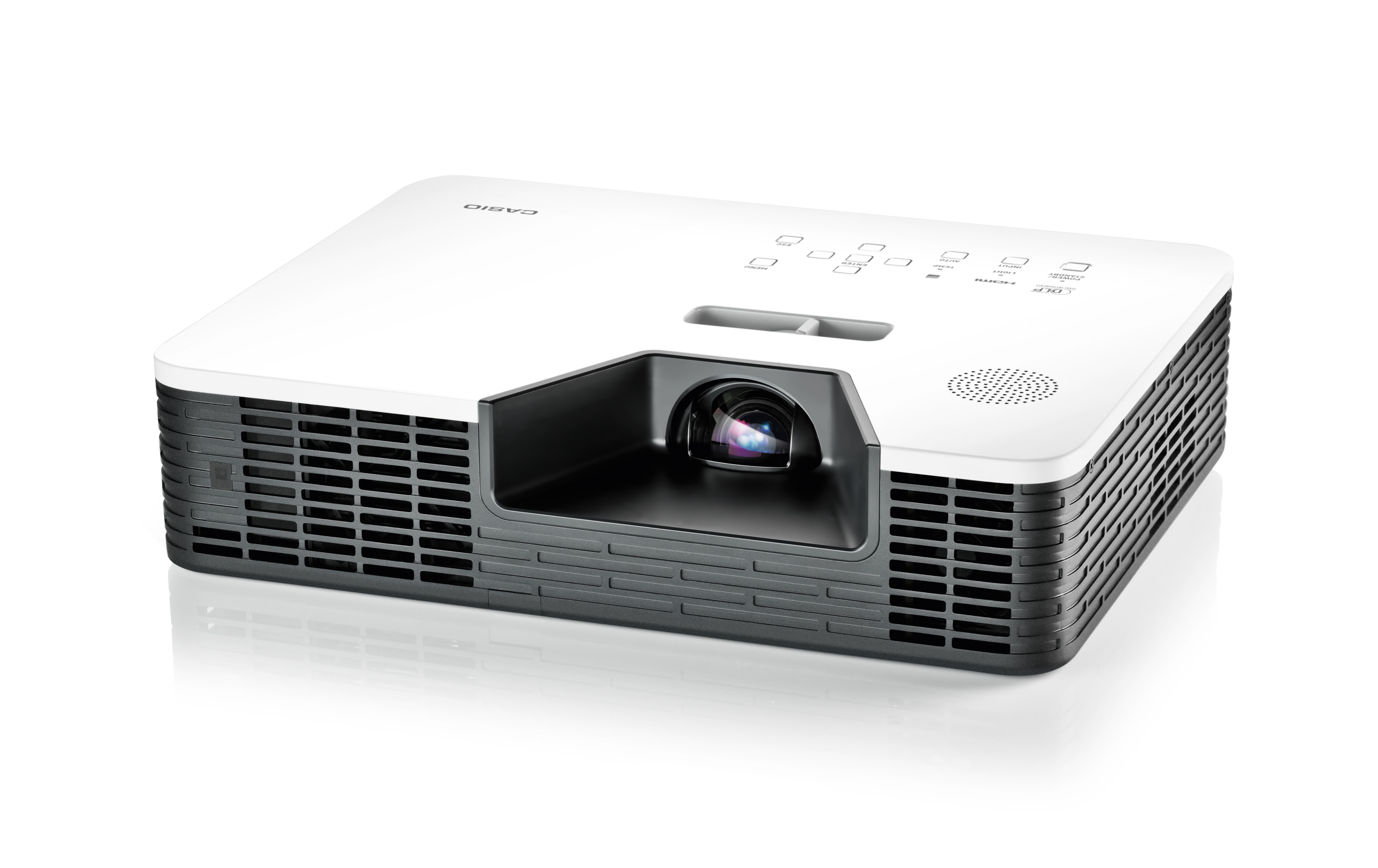

The XJ ST145 model from Casio combines DLP technology in the Short Distance sector with 2500 ANSI lumens, a contrast of 1400:1 and a native XGA 1024 x 768 resolution. An LED lifespan of 20000 hours is noted in the data sheet for this model. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 136 cm. Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 435 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 290 cm. For media input, video signals up to 1080P are supported. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2011 and is no longer part of Casio's current product range.
Display Type
1 x 0,7" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2500
Screen
833 Lux (200 cm Screen width)
Contrast
1400:1 full on/off
1400:1 full on/off
Black Level
1,7857 min. Lumen
0,596 min. Lumen
Offset
59% 14 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Full HD 1080P compatible Direkt Power Off Freeze Eco Mode Kensington Slot Password protection PJLink™ Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible.
Full HD 1080P compatible
