Appotronics AL-MK625A

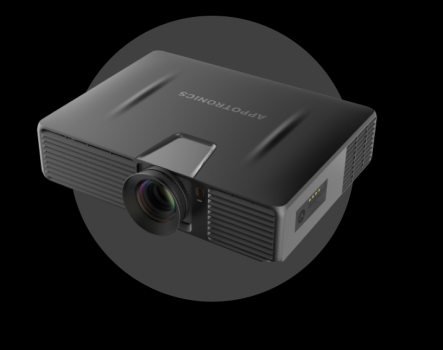

Image Appotronics AL-MK625A
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview This projector from Appotronics utilizes 3D-DLP technology, achieving 6200 ANSI lumens and a contrast of 100000:1 at a resolution of UHD (4K2K) 3840 x 2160. With its laser unit, the projector offers a specified light lifespan of 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible.
Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projector Calculator.
A look at the light output reveals: The 6200 ANSI lumens are sufficient to illuminate an image width of up to 800 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 533 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, and also offers the technical capability for 360° projection. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type       1 x 0,47" DMD DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
6200
Screen
2756 Lux (200 cm Screen width)
Contrast 100000:1 full on/off 100000:1 full on/off
Black Level 0,0620 min. Lumen 0,028 min. Lumen
Lens shift Vert.: +/-100% Hori.: +/-40%
 Lens shift
100%  113cm
100%  113cm
40%  80cm
40%  80cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application High-End Homecinema | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source ALPD Laser phosphor
Light Life 20000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
200 - 320 cm
Lux: 2756 Lux
Contrast: 100000:1
Candela pro m²: 877 cd/m²
Foot-Lamberts: 256 fL
113 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,6
Objective -
Throw Ratio 1,0-1,6:1 show
Audio Nein
Connections 2x HDMI 2.0 in
S/PDIF
3D Sync x29 in und out
3D IR Out
D-sub 15pin in und out
Mini Jack Audio in und out
USB in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 550W
Size WxHxD 436 x 107 x 332 mm (17,2"x4,2"x13,1") 15,49 L/dm³
Operating Noise 36dB
Key: 140 cm
Shift: 113 cm
Key: 140 cm
Shift: 80 cm
Key: 140 cm
Shift: 80 cm
Key: 140 cm
Shift: 113 cm

Weight 9,20 kg / 19,84 lbs.
Keystone Vert.: +/-35°
Hori.: +/-35°
Illumination 90%
Frequenz -
Foot-Lamberts 256 fL / max. 800 cm screen width
Candela m² 877 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Warping
360° installable
Edge Blending
Lan network compatible.
Android OS
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Appotronics AL-MK625A compared to others current "High-End Homecinema" projectors.
Ansi-Lumen:
54 Weight:
89
Contrast:
2 dB:
1
Black level:
93 Power cons.:
17
Picture Total Points:50 Projector Total Points:36
Popularity Top 100
4 popularity points 4 popularity points 4 popularity points 3 popularity points 8 popularity points 4 popularity points
Points:
4
Ranking: 21 (From: 47)
Optional Lenses
NameRatioDistanceShift V Shift HZoom
AL-ML154MA Long Zoom Lens AL-ML154MA 1.54-2.48:1 308-496 m +/-100% +/-40% Powered
AL-ML070FR Short Zoom Lens AL-ML070FR 0.7-0.9:1 140-180 m +/-100% +/-40% Powered
Status 2022 Current model // Last update of the data: 2026-06-09
Data
Appotronics Website
Product Sheet english
Product Sheet english HC

Projektor Appotronics AL-MK625A
