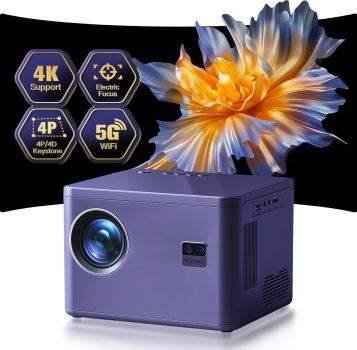

The projector AK-63 by YEZMEK utilizes LCD technology and, according to the spec sheet, achieves 400 ANSI lumens, a contrast of 15000:1 at a resolution of HDTV 1920 x 1080. Thanks to LED technology, the projector is rated for a lifespan of up to 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Looking at practical performance, up to 203 cm can be illuminated with 400 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 135 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Airplay and Chromecast screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
400
Screen
178 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,0267 min. Lumen
0,012 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityOkay (2.9)
Lux:
178 Lux
Contrast:
15000:1
Candela pro m²:
58 cd/m²
Foot-Lamberts:
17 fL
•
Focus
Powered
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
2 x 8W
Connections
HDMI in
Composite Video
Mini Jack Audio in und out
USB-C in
USB-A in
Bluetooth 5.2
RJ45 Lan
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction Wi-Fi network compatible. Lan network compatible. Android 9.0
Google Pixel does not support Miracast, only Chromecast. This is why the AK-63 is not visible on a Google Pixel and therefore cannot be streamed from these devices.
