Brief Introduction
Beta 2.5 |

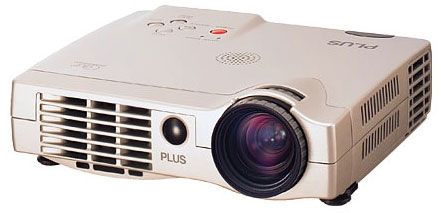

The Plus model V1100Z is a DLP projector with XGA 1024 x 768 resolution and a contrast of 2000:1. The horizontal and vertical keystone correction provides scope when setting up. 275 cm picture width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 183 cm. At just 27 decibels, the device is one of the quieter projectors. The projector is no longer sold by the manufacturer. It should also be noted that, unfortunately, there are no more replacement lamps for the projector, neither originals nor replicas.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Offset |
67% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, NTSC4.43/PAL, PAL-M, PAL-N, PAL60/SECAM, YCbCr(NTSC, PAL), YPbPr(480p, 720p, 1080i) |
| Application |
Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
120W High Perfürmance Compact Lamp
Article Nr.: 28-060N
|
|
| Light Life |
1000 h. |
| Operating Costs |
-
|
|
388 - 464 cm
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
| 101 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,6-2,9 f=27,5-33 mm |
| Throw Ratio |
1,94-2,32:1 show |
| Audio |
0,5W Mono |
| Connections |
DVI-I x 1
Composite Video/S-Video/YCbCr: 3.5 mm 4-pole Mini Jack x 1, Audio: 2.5 mm Stereo Mini Jack x 1
 |
| Ceiling Mounting |
- |
| Power |
180W |
| Size WxHxD |
180 x 45 x 141 mm (7,1"x1,8"x5,6") 1,14 L/dm³
|
| Operating Noise |
27dB |
|
| Weight |
1,10 kg / 2,43 lbs. |
| Keystone |
Vertical und horizontal |
| Illumination |
- |
| Frequenz |
H-sync: 15-85 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
31 fL
/ max. 275 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Freeze
Kensington Slot
Gamma correction
Picture-in-Picture
Remote control with laser pointer
Digital Zoom (x 10)
|
|
- |
In Comparison
The Plus V1100Z compared to others not current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
27 |
Weight: |
|
29 |
| Contrast: |
|
1 |
dB: |
|
75 |
| Black level: |
|
93 |
Power cons.: |
|
62 |
| Picture Total Points: | 40 |
Projector Total Points: | 55 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
363 (From: 395) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
