| Customer review |
|
 |
|
| Display Type |
1 x T1 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 LED Lumen |
Screen |
Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
2,5000 min. Lumen |
0,003 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Video : MPEG-1/2/4 1080P30fps H.264/H.265
4KP60pfs etc.
Audio : MPEG-1/2/3 etc.
Picture : JPEG, GIF, BMP |
| 3D Compatibility |
Frame Sequential (3D Ready) | |
| Application |
Game-Portabel | Battery projector | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € LED
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
1,2:1 |
| Audio |
- |
| Connections |
HDMI in
D-sub 15pin in
Mini Jack Audio in und out
USB in
SD Card Slot
RJ45 |
| Ceiling Mounting |
- |
| Power |
28W |
| Size WxHxD |
198 x 48 x 128 mm (7,8"x1,9"x5") 1,22 L/dm³
|
| Operating Noise |
28 / 22 dB in Eco Mode |
|
| Weight |
0,680 kg / 0 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
- |
| Candela m² |
- |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Wi-Fi network compatible.
Lan network compatible.
7800mAh
Android 9.0
|
|
Miracast, Airplay, DLNA |
In Comparison

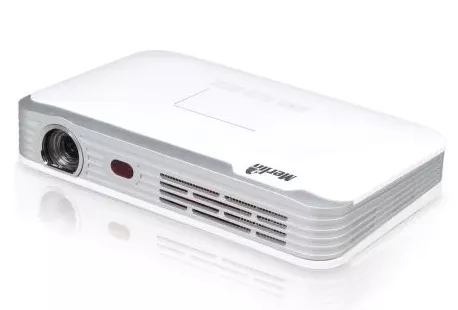

The Merlin Digital 3D PocketBeam PRO compared to others not current "Game-Portabel" projectors. |
| Ansi-Lumen: |
|
79 |
Weight: |
|
59 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
64 |
Power cons.: |
|
100 |
| Picture Total Points: | 48 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
34 (From: 1100) |
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2025-11-26
|
| Data |
 Product Sheet english HC
    |
