Maginon LCD 3200X

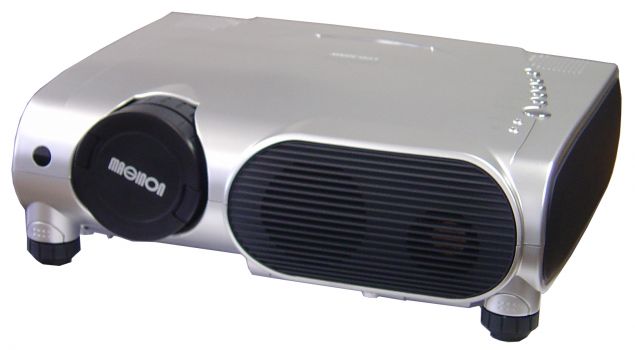

Image Maginon LCD 3200X
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Standard-Portabel sector, the Maginon LCD 3200X is equipped with 3200 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 400:1.
Looking at practical performance, up to 493 cm can be illuminated with 3200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 329 cm.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       3 x LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 3200
Screen
 1067 Lux (200 cm Screen width)
Contrast 400:1 400:1
Black Level 8,0000 min. Lumen 2,688 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source -
Article Nr.: LCD 3200-XLAMP
Order Lamp
104,03 104,03 €
Light Life h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 1067 Lux
Contrast: 400:1
Candela pro m²: 339 cd/m²
Foot-Lamberts: 99 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,3
Objective -
Throw Ratio -
Audio 2 x 1W
Connections DVI in
D-sub 15 pin in
YUV in
S-Video
Cinch Video
Ceiling Mounting Yes, is possible.
Power 260W
Size WxHxD 297 x 96 x 248 mm (11,7"x3,8"x9,8") 7,07 L/dm³
Operating Noise 38dB

Weight 3,60 kg / 7,94 lbs.
Keystone Vert.: +/-15°
Illumination 85%
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 157 MHz
Foot-Lamberts 99 fL / max. 493 cm screen width
Candela m² 339 cd/m²
Features Freeze
Gamma correction
Picture-in-Picture
Remote control with laser pointer und mouse control
Screen Mirroring -
In Comparison
The Maginon LCD 3200X compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
38 Weight:
83
Contrast:
1 dB:
28
Black level:
70 Power cons.:
98
Picture Total Points:36 Projector Total Points:70
Popularity Top 100
0 popularity points 6 popularity points 5 popularity points 3 popularity points 3 popularity points 7 popularity points
Points:
7
Ranking: 718 (From: 7737)
Optional accessories
bulb only Philips NLMP4747104,03 €
lamp OriginalLCD 3200-XLAMPEOL €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english
Product Sheet english HC
User Manual english (3.71 MB)

Projektor Maginon LCD 3200X
