Model Overview

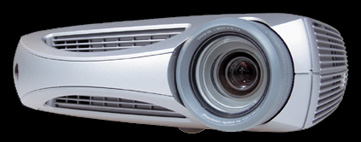

Equipped with DLP technology, the Knoll Systems HD177 offers 1000 ANSI lumens, a contrast of 1400:1 and is designed as a versatile projector. The manufacturer rates the durability of the included lamp at 3000 hours.
Display Type
1 x DLP Chip
Ansi-Lumen
Projector
1000
Screen
444 Lux (200 cm Screen width )
Contrast
1400:1 full on/off
1400:1 full on/off
Black Level
0,7143 min. Lumen
0,318 min. Lumen
Offset
80% 34 cm over screen top edge →
Resolution
WPAL 1024 x 576
Video Modes
PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43, HDTV 525i, 576i, 480i 480p 720p, 1080i
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application
Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
200W UTP LampLP6
Light Life
3000 h.
Operating Costs
-
Calculated brightness quality Good (1.8)
378 - 526 cm
Lux:
444 Lux
Contrast:
1400:1
Candela pro m²:
140 cd/m²
Foot-Lamberts:
41 fL
•
Focus
Manual
Zoom
Manual 1,38
Objective
F=2,5-3,1 f=26,6-36,8 mm
Throw Ratio
1,89-2,63:1 show
Audio
1W
Connections
D-sub 15pin in
Ceiling Mounting
Yes, is possible.
Power
-
Size WxHxD
351 x 110 x 325 mm (13,8"x4,3"x12,8") 12,55 L/dm³
Operating Noise
35dB
Weight
4,30 kg / 9,48 lbs.
Keystone
Vert.: +/-20°
Illumination
-
Frequenz
-
Foot-Lamberts
41 fL
/ max. 321 cm screen width
Candela m²
140 cd/m²
Features
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads
In Comparison The Knoll Systems HD177 compared to others not current "Homecinema" projectors.
Ansi-Lumen:
8
Weight:
100
Contrast:
1
dB:
50
Black level:
92
Power cons.:
0
Picture Total Points: 34
Projector Total Points: 0
Popularity Top 100
Points:
2
Ranking:
952
Status
- Discontinued (EOL) // Last update of the data: 2026-06-09
Data
