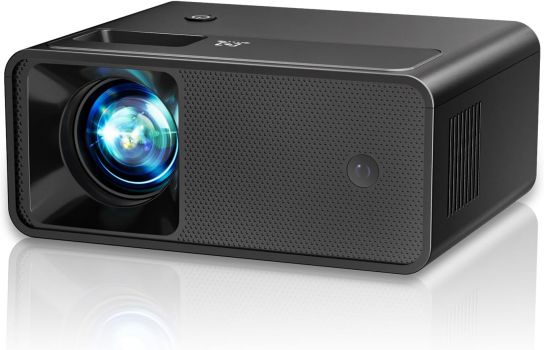

A projector from ELEPHAS is the W13, whose LCD model delivers 300 ANSI lumens, a resolution of HDTV 1920 x 1080 and a contrast of 3500:1. Thanks to LED technology, the projector is rated for a lifespan of up to 50000 hours. Daily use of 4 hours makes an operational lifespan of over 34.2 years possible. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. Looking at practical performance, up to 176 cm can be illuminated with 300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 117 cm. For media input, video signals up to 1080P and 4K are supported. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen. A look at the data sheet confirms a very subtle fan noise for the projector at just 29 decibels.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
300
Screen
133 Lux (200 cm Screen width)
Contrast
3500:1 full on/off
3500:1 full on/off
Black Level
0,0857 min. Lumen
0,038 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
50000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
290 cm (no Zoom)
Lux:
133 Lux
Contrast:
3500:1
Candela pro m²:
41 cd/m²
Foot-Lamberts:
12 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
1,45:1
Audio
2 x 3W
Connections
HDMI in
USB in
D-Sub 15 Pin
TF Card
Audio Mini Jack in und out
Bluetooth 5.1
Ceiling Mounting
-
Power
-
Size WxHxD
200,7 x 68,6 x 139,7 mm (7,9"x2,7"x5,5") 1,89 L/dm³
Full HD 1080P compatible
Product Sheet english HC
