easyview PX770

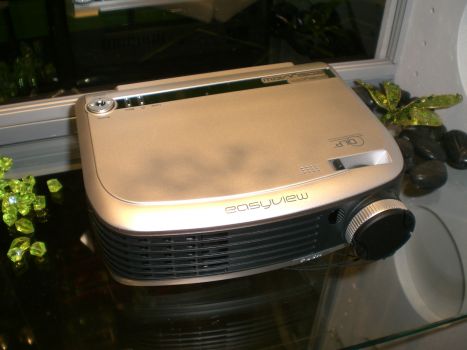

Image easyview PX770
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview According to easyview, the PX770 model provides 1800 ANSI lumens, a contrast ratio of 2000:1 alongside a XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 3000 hours.
Regarding projection size, the value of 1800 ANSI lumens allows for an image width of up to 369 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 246 cm.
This model dates back to 2006 and is no longer part of easyview's current product range.
Display Type       1 x 0,7" DDR DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 1800
Screen
 600 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 0,9000 min. Lumen 0,3 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 150W Lamp
Article Nr.: LMPf12524
Light Life 3000 h.
Operating Costs -
Calculated brightness quality Perfect
Lux: 600 Lux
Contrast: 2000:1
Candela pro m²: 192 cd/m²
Foot-Lamberts: 56 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,16
Objective -
Throw Ratio -
Audio 1 x 1W
Connections D-sub 15pin in
S-Video in
Cinch Video in
Ceiling Mounting Yes, is possible.
Power 200W
Size WxHxD 201 x 58 x 155 mm (7,9"x2,3"x6,1") 1,81 L/dm³
Operating Noise 34dB

Weight 1,18 kg / 2,6 lbs.
Keystone Vert.: +/-15°
Illumination 80%
Frequenz -
Foot-Lamberts 56 fL / max. 369 cm screen width
Candela m² 192 cd/m²
Features 4-segment colour wheel.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The easyview PX770 compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
55 Weight:
23
Contrast:
1 dB:
40
Black level:
87 Power cons.:
52
Picture Total Points:48 Projector Total Points:38
Popularity Top 100
17 popularity points 13 popularity points 1 popularity points 4 popularity points 5 popularity points 6 popularity points
Points:
6
Ranking: 335 (From: 393)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english
Product Sheet english HC

Projektor easyview PX770 Projektor easyview PX770
