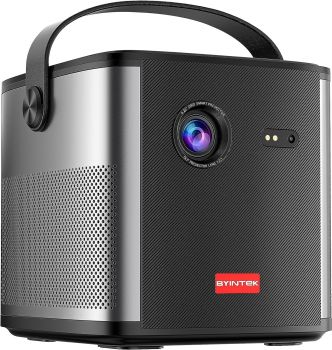

Behind the name U80 is a 3D-LED-DLP projector by Byintek, whose main features include 500 ANSI lumens, a contrast of 20000:1 and a HDTV 1920 x 1080 resolution. Thanks to LED technology, the projector is rated for a lifespan of up to 50000 hours – calculating to 34.2 years at four hours of use per day. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. To reduce dependence on stationary power sources, the model is equipped with a built-in battery for autonomous operation. Looking at practical performance, up to 227 cm can be illuminated with 500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 151 cm. Additionally, a built-in ambient light sensor measures the room lighting and automatically adjusts the projection settings. For media input, video signals up to 1080P and 4K are supported. Also on board is a local media player that allows reading and playing content directly from storage media. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen. With a value of only 28 decibels, the noise level during operation remains pleasantly in the background.
Display Type
1 x 0,23" DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
500
Screen
222 Lux (200 cm Screen width)
Contrast
20000:1 full on/off
20000:1 full on/off
Black Level
0,0250 min. Lumen
0,011 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Standard-Portabel | Battery projector | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
Light Source
LED RGB
Light Life
50000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (2.5)
240 cm (no Zoom)
Lux:
222 Lux
Contrast:
20000:1
Candela pro m²:
72 cd/m²
Foot-Lamberts:
21 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
1,2:1
Audio
2 x 5W
Connections
HDMI in
Mini Jack Audio out
USB-A in
Ceiling Mounting
-
Power
65W
Size WxHxD
144,8 x 160 x 142,2 mm (5,7"x6,3"x5,6") 3,27 L/dm³
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Remote control with mouse control Wi-Fi network compatible. Ambient Light Sensor. 15000mAh Android 11.0 MEMC
Full HD 1080P compatible
