Brief Introduction
Beta 2.5 |
The Viewsonic PA502XP standard portable LCD projector has 3500 Ansi lumens, a contrast of 22000:1 and an XGA 1024 x 768 resolution. The service life of the lamp is up to 15000 hours, which is over 20.5 years with a daily viewing time of 2 hours. A picture width of up to 515 cm is possible, if the picture width is smaller (we recommend max. 343 cm), rooms with residual light are also no problem. It is also Full HD 1080P compatible. The projector is very quiet compared to others with an operating noise of 30 decibels. On the market since 2019, the model is no longer offered by the manufacturer Viewsonic.
|
| Display Type |
3 x 0,55" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
22000:1 |
22000:1
|
| Black Level |
0,1591 min. Lumen |
0,053 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
190W Lamp
Article Nr.: RLC-111
|
|
| Light Life |
5000 h. / 15000 h. in Eco Mode |
| Operating Costs |
|
|
394 - 434 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,5-2,7 f=22,08-24,28 mm |
| Throw Ratio |
1,97-2,17:1 show |
| Audio |
2W |

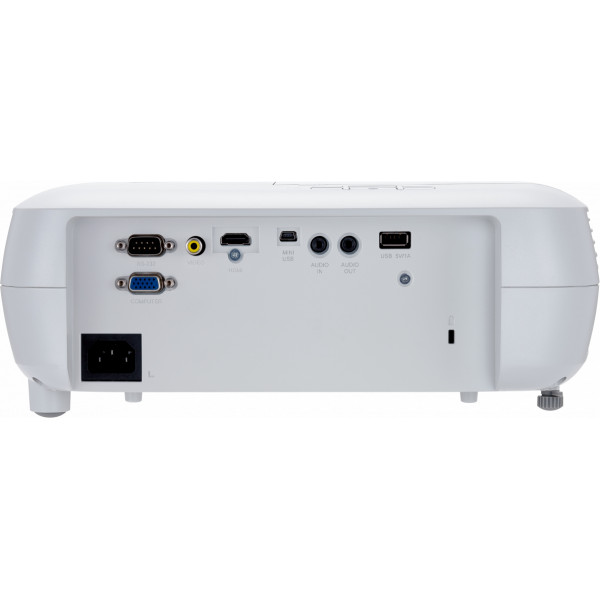

| Connections |
HDMI in
D-sub 15pin in
Cinch Video in
Mini Jack Audio in und out
USB
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
320 x 123 x 210 mm (12,6"x4,8"x8,3") 8,27 L/dm³
|
| Operating Noise |
30dB |
|
| Weight |
2,10 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Viewsonic PA502XP compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 47 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
6131 (From: 7662) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-10-27
Created: 2019-01-21 12:55:53
|
