Brief Introduction
Beta 2.5 |

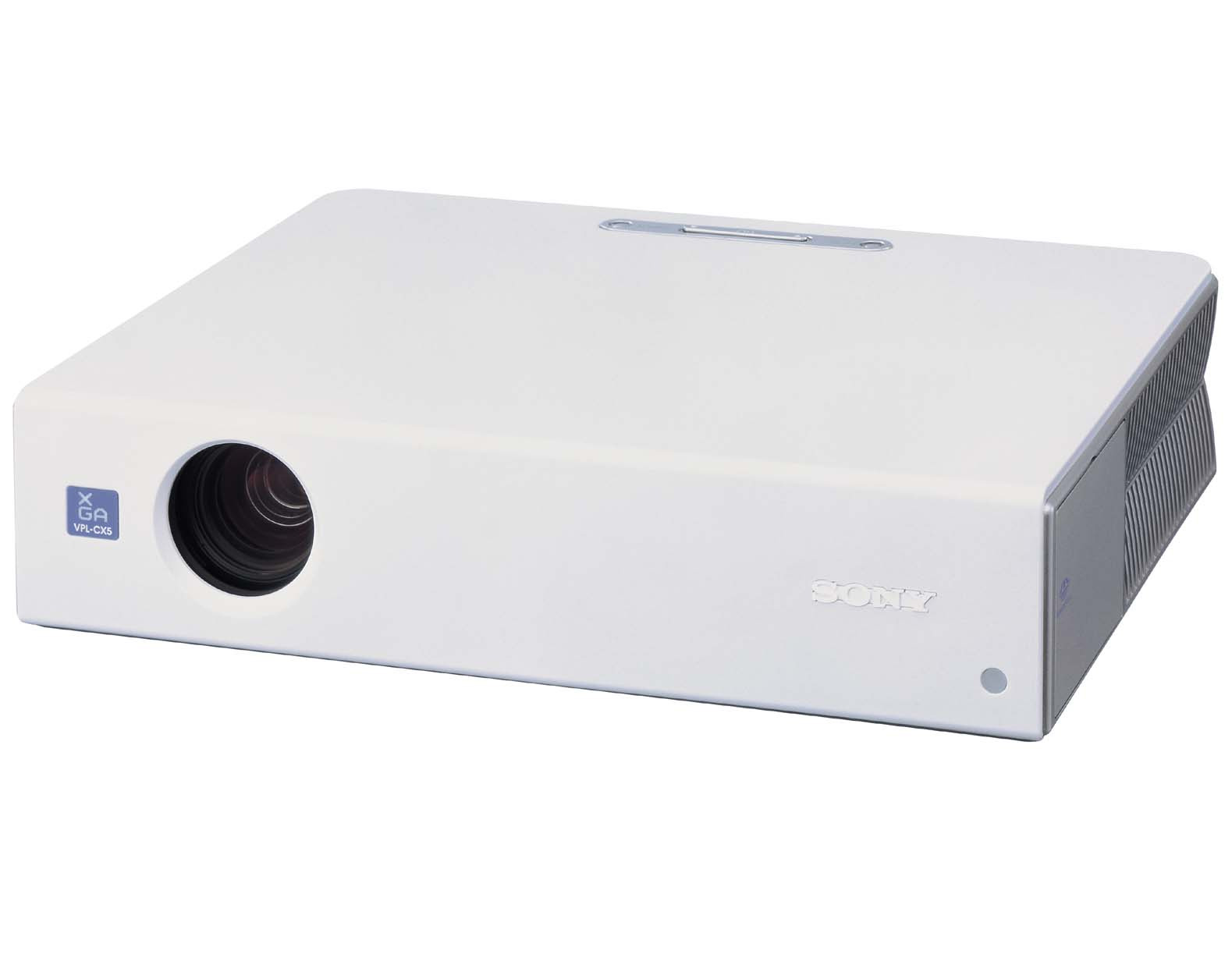

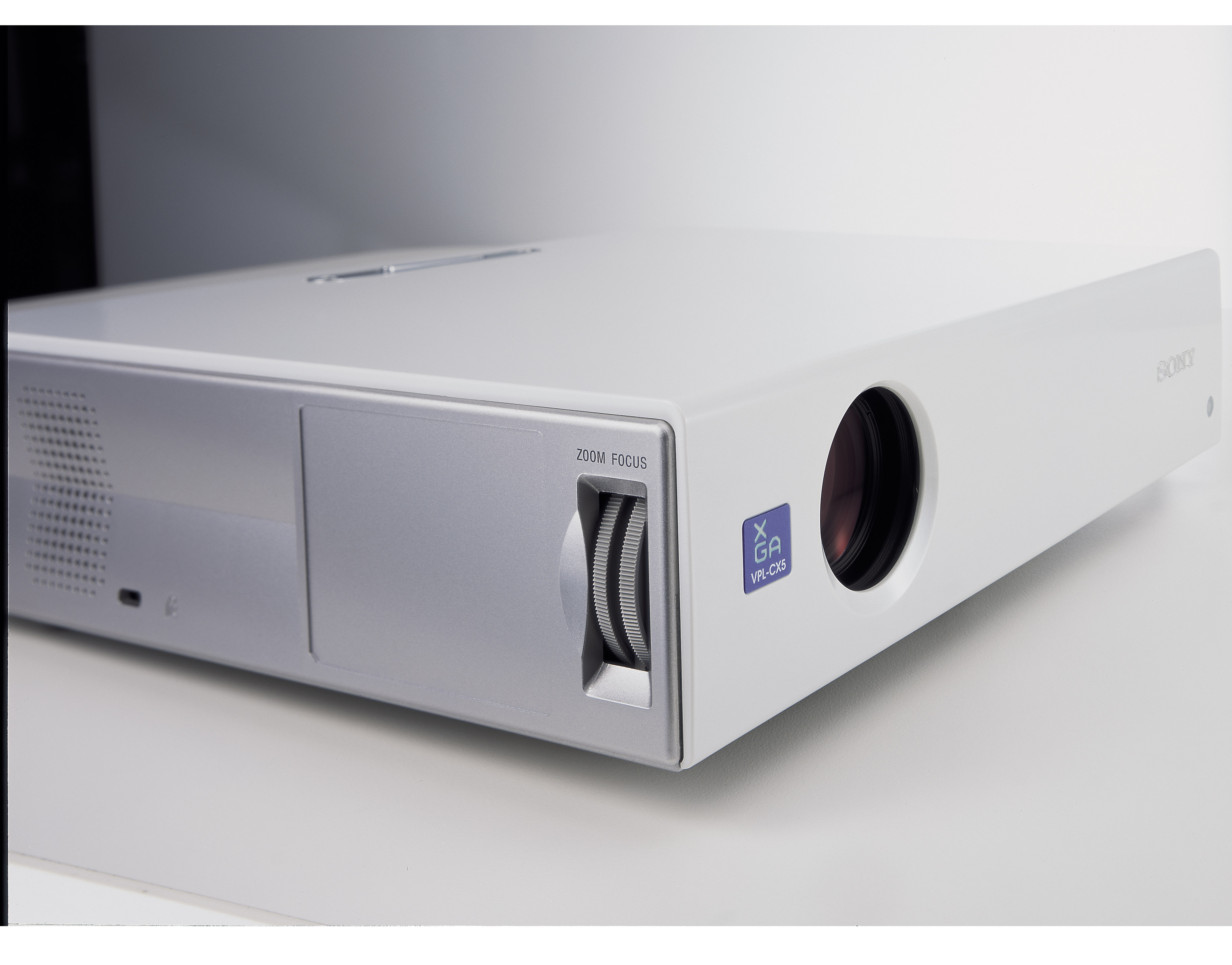

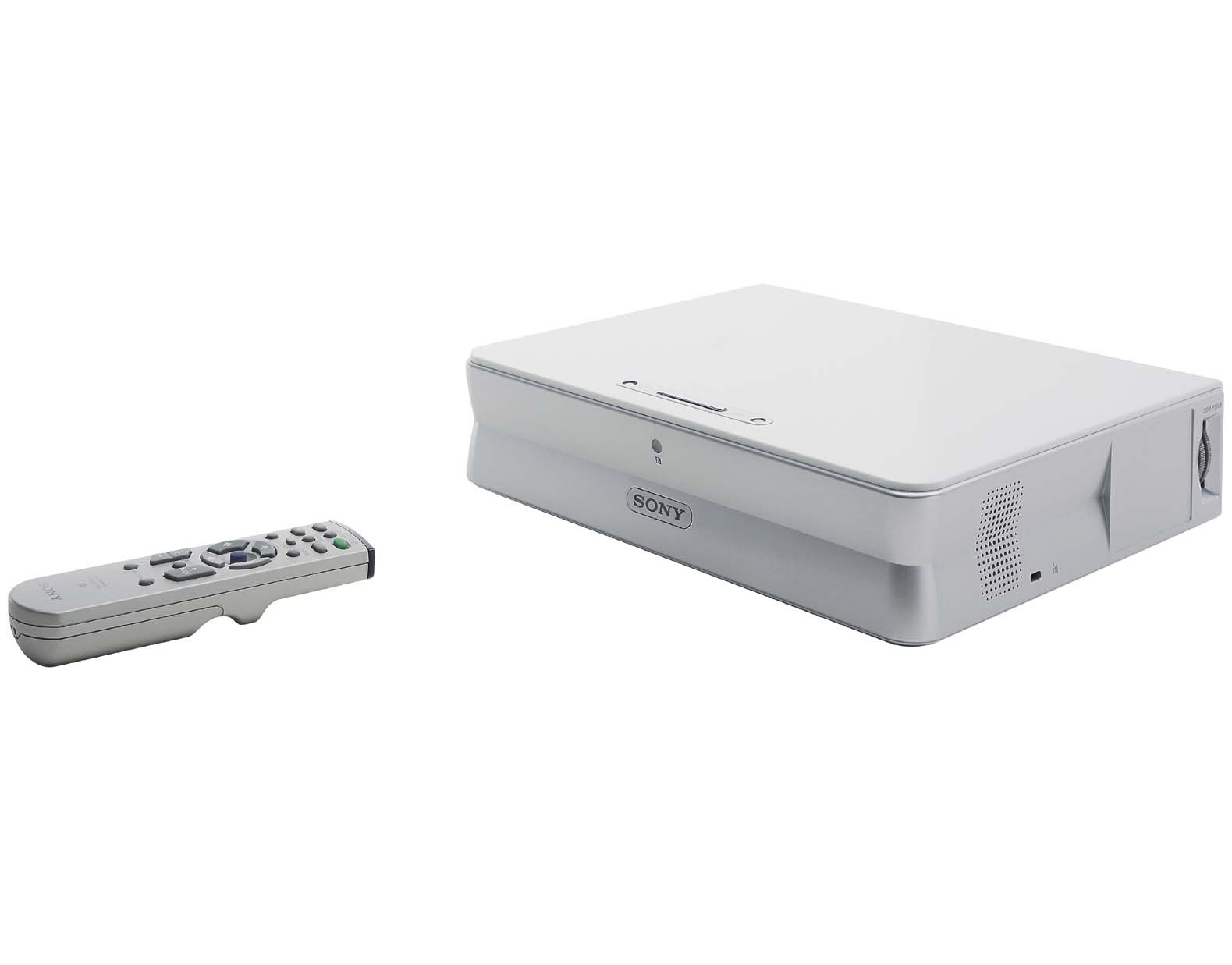

The VPL CX5 LCD has 2000 Ansi-Lumen, a contrast of 300:1 and an XGA 1024 x 768 resolution. The projector also offers an integrated media player for direct playback of files. The projector will be able to illuminate the 389 cm picture width well. However, if room light is available, the picture width should ideally not exceed 259 cm. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,7" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
300:1 full on/off |
300:1 full on/off
|
| Black Level |
6,6667 min. Lumen |
2,246 min. Lumen |
| Offset |
50% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, NTSC 4.43, PAL-M, PAL-N
Media player formats: PPT, PPS BMP, TIFF JPEG MPEG1 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

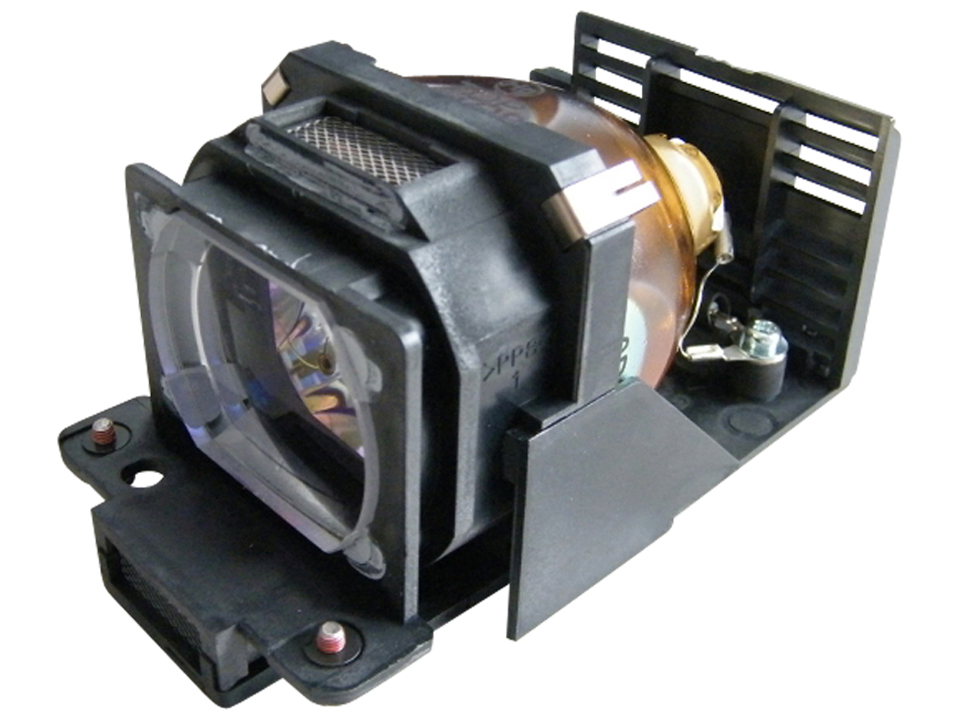

165W UHP Lamp
Article Nr.: LMP-C150
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
380 - 460 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,8-2,15 f=28,2-33,8 mm |
| Throw Ratio |
1,9-2,3:1 show |
| Audio |
max. 1 x 1W |
| Connections |
D-sub 15pin in
S Video in
Cinch Video in
Mini Jack in
USB in
Memory Card Slot |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W, standby ca. 7W |
| Size WxHxD |
285 x 68 x 228 mm (11,2"x2,7"x9") 4,42 L/dm³
|
| Operating Noise |
43dB |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vertical |
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 48-85 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Integrated Mediaplayer
Freeze
Kensington Slot
Digital Zoom
Memory card slot
|
|
- |
In Comparison
The Sony VPL CX5 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
15 |
| Black level: |
|
75 |
Power cons.: |
|
98 |
| Picture Total Points: | 33 |
Projector Total Points: | 67 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
193 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
