Sharp Xaote vision PG M20X
| SHARP PG-M20XA
|
| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

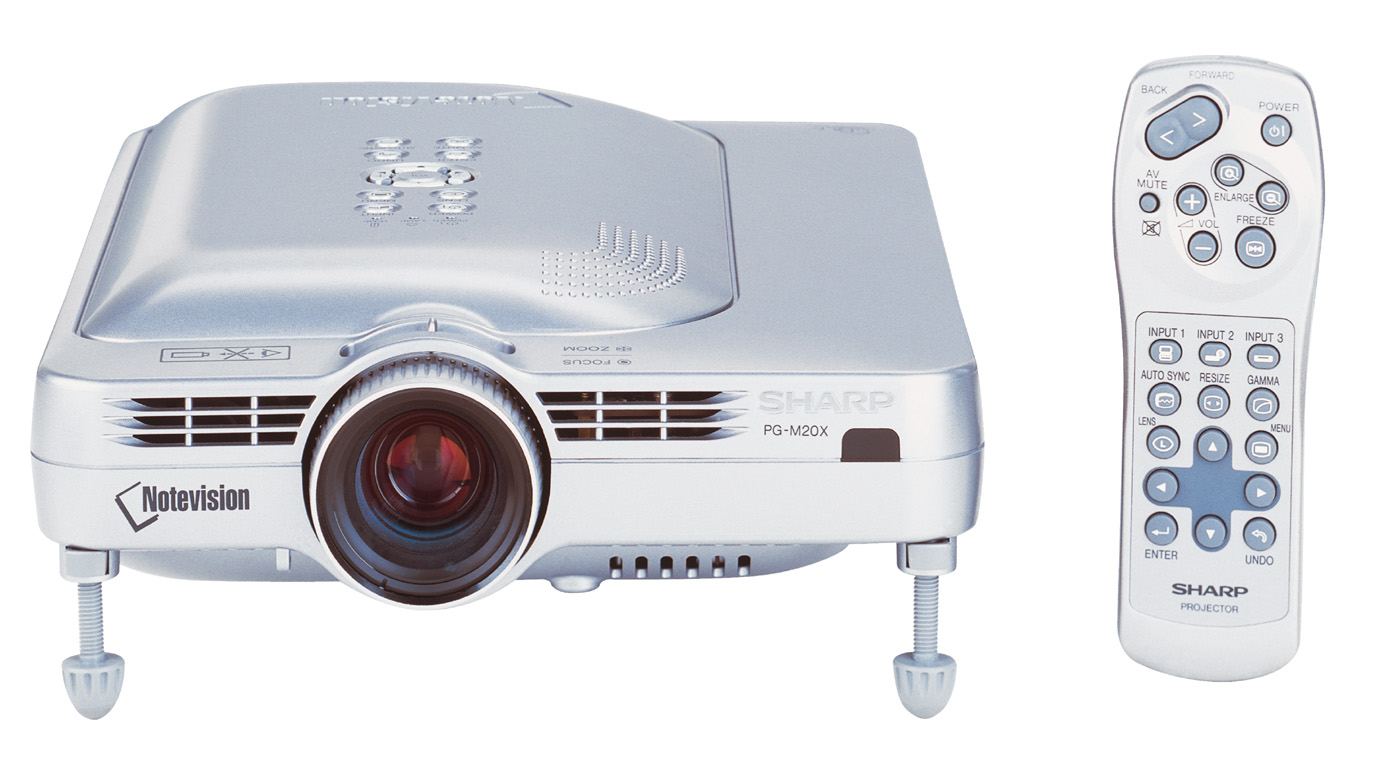

The Sharp PG M20X model is a DLP projector with XGA 1024 x 768 resolution and a contrast of 1000:1. The projector can illuminate a picture width of up to 380 cm well thanks to its 1900 Ansi lumens. In room light, however, the image width should ideally be less than 253 cm. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" 12° HD2 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1900 |
Screen |
633 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
1,9000 min. Lumen |
0,635 min. Lumen |
| Offset |
50% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, PAL 60, PAL-M, PALN, NTSC, SECAM, NTSC 4.43 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
210W SHP Lamp
Article Nr.: AN-M20LP BQC-PGM20X//1
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
400 - 480 cm
|
 |
|
Lux: |
633 Lux |
|
Room light max.: |
127 Lux |
|
Candela pro m²: |
202 cd/m² |
|
Foot-Lamberts: |
59 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
- |
| Throw Ratio |
2,0-2,4:1 show |
| Audio |
1 x 2W (Mono) |
| Connections |
1 x S-Video
1 x F/BAS
1 x 3,5 mm-Klinke
1 x USB
1 x DVI-I in
Mini jack in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
290 / 250W in Eco Mode |
| Size WxHxD |
219 x 76,1 x 302,5 mm (8,6"x3"x11,9") 5,03 L/dm³
|
| Operating Noise |
37dB |
|
| Weight |
2,60 kg / 5,73 lbs. |
| Keystone |
Vert.: +/-35°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-126 kHz
V-sync: 43-200 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
59 fL
/ max. 380 cm screen width |
| Candela m² |
202 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Digital image shift
Password protection
Remote control with mouse control
Anti-theft protection 3 x Speed Colour Wheel
|
|
- |
In Comparison
The Sharp PG M20X compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
22 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
93 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
881 (From: 7662) |
|
|
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet english UK (1)
Product Sheet english UK (1)
Product Sheet english UK (2)
Product Sheet english UK (2)
Product Sheet it
Press release
Press release 2
Press release 3
User Manual english (7.95 MB)
|
|
|
Autor:
4711er 04.03.14 |
|
4.5 Stars |
Very good device |
|
|
The projector has a first-class picture and the possibility of displaying higher signals up to 1600x1200 makes it a real all-rounder
|
|
|
Autor:
dago6927 19.04.12 |
|
4 Stars |
Remote control |
|
Hello,I‘m looking for a remote control for the device-can anyone help me?([email protected])
|
|
|
Autor:
kt 18.10.11 |
|
1 Stars |
well... |
|
probably because Migge selflessly wanted to sell his now superfluous expensive adapter to the man
|
|
|
Autor:
Zocker 28.04.10 |
|
4 Stars |
DVI to HDMI |
|
why should you spend a lot of money on an HDFury adapter when you can buy a DVI to HDMI cable for a few euros. And yes, you can use your PS3 or Xbox 360 with it.
|
|
|
Autor:
Chris.b 26.02.09 |
|
4.3 Stars |
PS3 connection |
|
There should be an adapter from HDMI to DFI.
|
|
|
Autor:
Migge 14.07.08 |
|
4 Stars |
Yes, you can connect the PS3 with HDMI. |
|
You need an HDFury adapter, which converts the HDCP-infected digital signal into an analog RGB signal. Setup: PS3->HDMI to DVI-D on HDFury and from HDFury VGA to DVI analog on the PG-M20X. Works great for gaming and watching Blu-ray. With DVDs, however, you often have to adjust the picture because the projector doesnt recognize the format 100.
Cheers,
Migge
PS: Selling my HDFury because my PG-M20X has given up the ghost. 01745298200
|
|
|
Autor:
Michael J 28.03.07 |
|
3.5 Stars |
Sharp PG M20X - Playstation 3 |
|
Is it possible to connect the PS3 (HDMI) to the DVI input of the projector?
|
|
|
|
