Brief Introduction
Beta 2.5 |

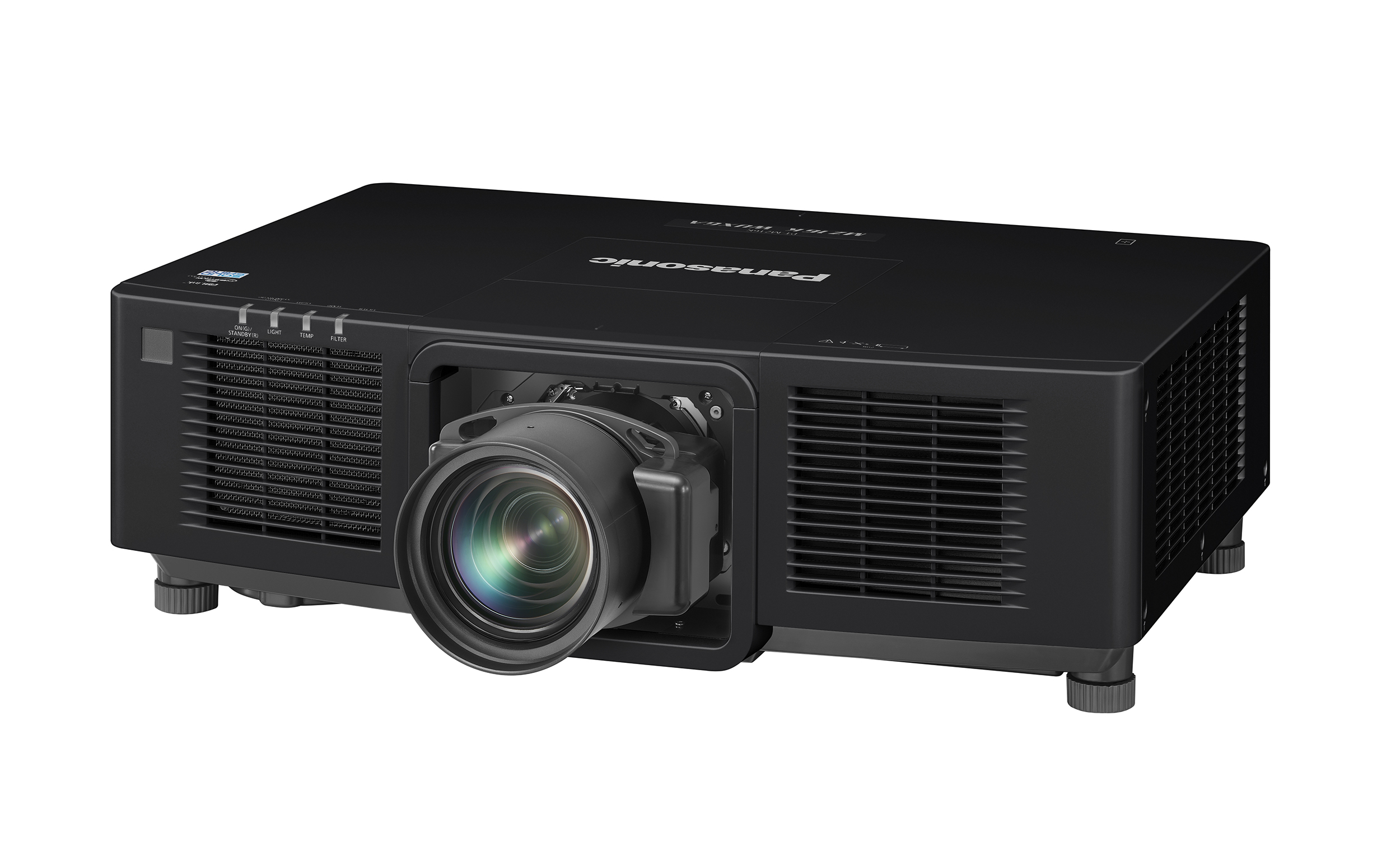

The large-screen PT-MZ16KL 3D laser LCD projector from Panasonic has 16000 Ansi lumens, a contrast of 3000000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which converts to over 13.7 years at 4 hours per day. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. 1285 cm image width, the projector will be able to illuminate well. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 857 cm here. It is also Full HD 1080P and 3D compatible, meaning it can even project Blu-rays onto the ceiling thanks to 360° projection. The model was built by Panasonic in 2019 and is no longer current.
|
| Display Type |
3 x 1" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
16000 |
Screen |
7111 Lux (200 cm Screen width) |
| Contrast |
3000000:1 full on/off |
3000000:1 full on/off
|
| Black Level |
0,0053 min. Lumen |
0,002 min. Lumen |
| Lens shift |
Vert.: +/-60% Hori.: +/-20%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser Diode
Article Nr.: Alternative zu:ET-RFM100
|
|
| Light Life |
20000 h. / 24000 h. in Eco Mode |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
7111 Lux |
|
Room light max.: |
1422 Lux |
|
Candela pro m²: |
2265 cd/m² |
|
Foot-Lamberts: |
661 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
BNC x 1: 3G/HD/SD-SDI input
HDMI 19-pin x 1 (Compatible with HDCP, Deep Color, 4K/60p signal input)
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
D-Sub 15pin in und out
RS232c in
Wired Remote
Remote out
RJ45
USB
HDBaseT
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1000W |
| Size WxHxD |
650 x 185 x 440 mm (25,6"x7,3"x17,3") 52,91 L/dm³
|
| Operating Noise |
36 / 32 dB in Eco Mode |
Shift: 68 cm
|
Shift: 40 cm
|
|
Shift: 40 cm
|
| |
|
|
| Weight |
22,30 kg / 48,5 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-15°
|
| Illumination |
85% |
| Frequenz |
- |
| Foot-Lamberts |
661 fL
/ max. 1285 cm screen width |
| Candela m² |
2265 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Warping
360° installable
PJLink™
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT-MZ16KL compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
12 |
Weight: |
|
94 |
| Contrast: |
|
75 |
dB: |
|
84 |
| Black level: |
|
100 |
Power cons.: |
|
91 |
| Picture Total Points: | 62 |
Projector Total Points: | 90 |
|
| Popularity Top 100 |
|
| Points: |
|
57 |
| Ranking: |
34 (From: 576) |
|
|
|
| Optional accessories |

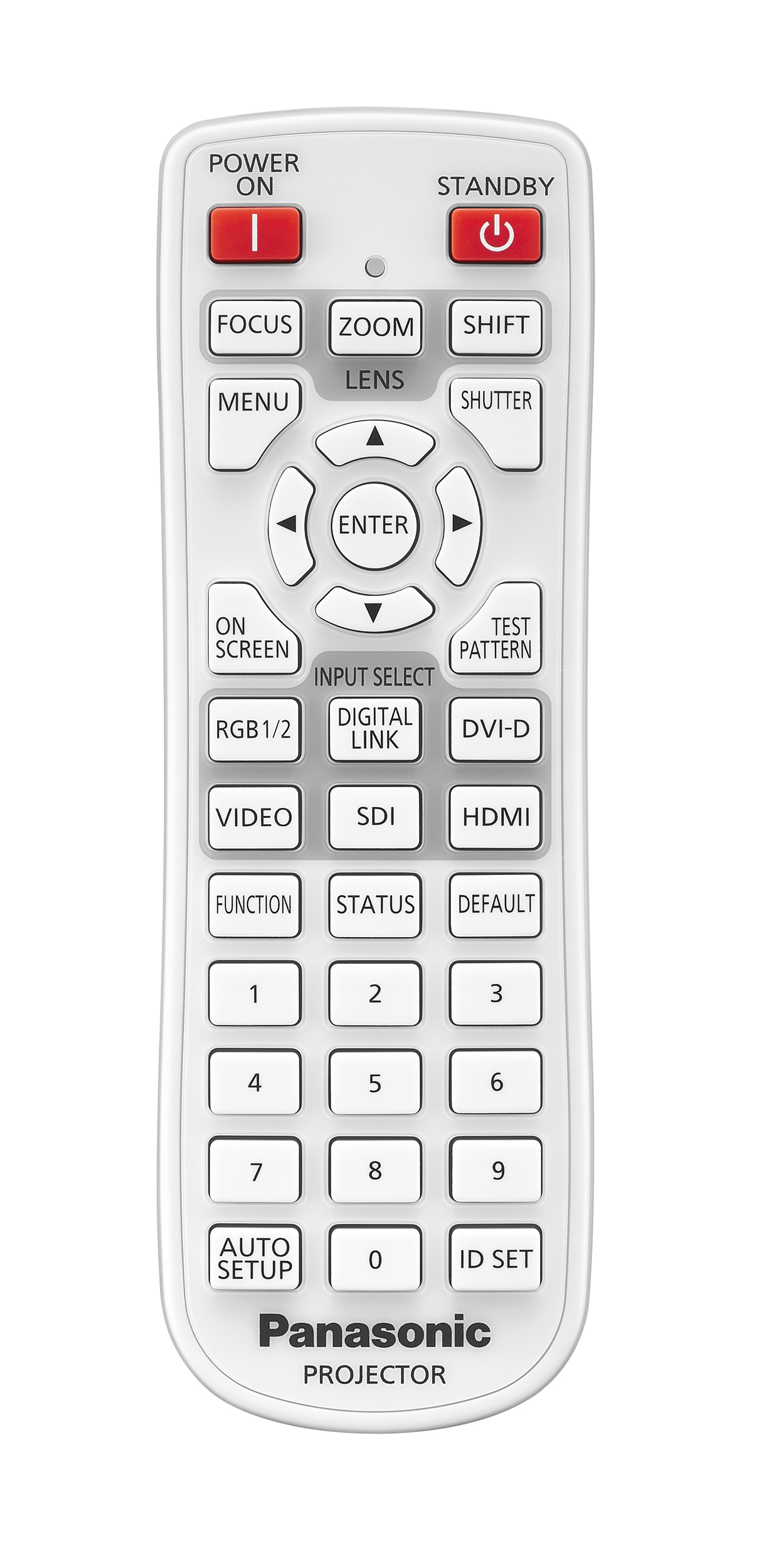

 | object lens Original | ET-EMU100 | 14.330,54 € | | object lens Original | ET-EMT850 | 2.559,10 € |  | object lens Original | ET-EMT750 | 2.559,10 € | | object lens Original | ET-EMS650 | 1.637,24 € | | object lens Original | ET-EMW500 | 3.564,49 € | | object lens Original | ET-EMW400 | 3.564,49 € |  | object lens Original | ET-EMW300 | 3.564,49 € | | object lens Original | ET-EMW200 | 4.093,73 € | | object lens Original | ET-EMT800 | EOL € | | object lens Original | ET-EMT700 | EOL € | | object lens Original | ET-EMS600 | EOL € |  | ceiling bracket Original | ET-PKD120S | EOL € |  | ceiling bracket Original | ET-PKD120H | EOL € |  | remote control Original | N2QAYA000208 | 58,19 € |  | air filter compatible | Alternative zu:ET-RFM100 | 39,57 € |  | air filter Original | ET-RFM100 | 93,43 € |  | Ceiling Mount 220 | Halterung45 | 83,60 € |
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-EMT850 | 4.14-7.4:1 | 828-1480 m |
+/-60% |
+/-20% |
Powered |
| ET-EMT800 (alt) | 4.14-7.4:1 | 828-1480 m |
+/-60% |
+/-20% |
Powered |
| ET-EMT700 (alt) | 2.1-4.14:1 | 420-828 m |
+/-60% |
+/-20% |
Powered |
| ET-EMT750 | 2.1-4.14:1 | 420-828 m |
+/-60% |
+/-20% |
Powered |
| ET-EMS600 (alt) | 1.35-2.1:1 | 270-420 m |
+/-60% |
+/-20% |
Powered |
| ET-EMS650 | 1.35-2.1:1 | 270-420 m |
+/-60% |
+/-20% |
Powered |
| ET-EMW500 | 0.95-1.36:1 | 190-272 m |
+/-60% |
+/-20% |
Powered |
| ET-EMW400 | 0.69-0.95:1 | 138-190 m |
+/-60% |
+/-20% |
Powered |
| ET-EMW300 | 0.55-0.69:1 | 110-138 m |
+/-50% |
+/-20% |
Powered |
| ET-EMW200 | 0.48-0.55:1 | 96-110 m |
+/-40% |
+/-19% |
Powered |
| ET-EMU100 | 0.33-0.35:1 | 66-70 m |
+/-40% |
+/-19% |
Powered |
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2019-08-11 17:26:35
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (29.27 MB)

|
Panasonic Website
