Brief Introduction
Beta 2.5 |

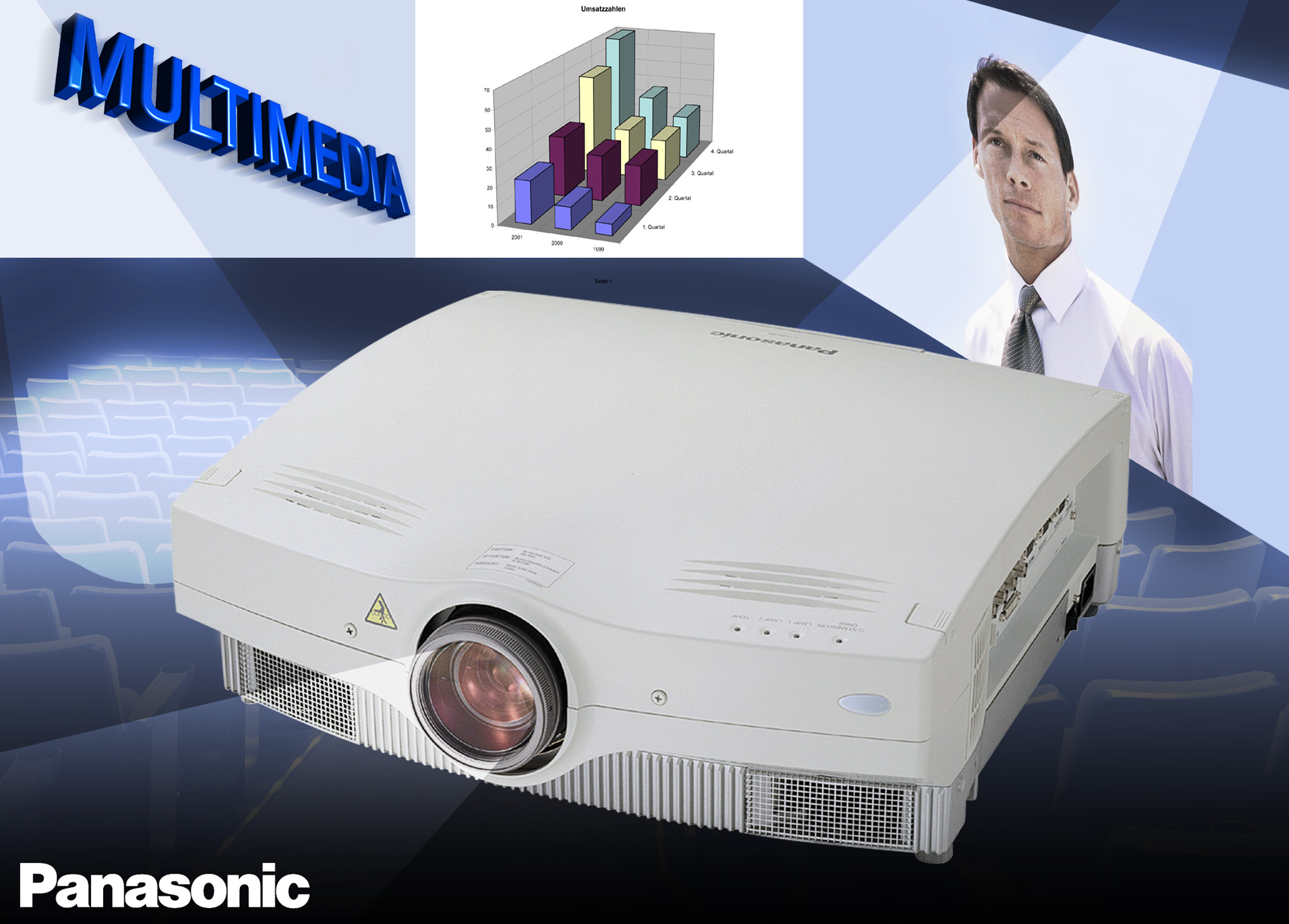

The PT L6600E/U LCD has 3600 Ansi-Lumen, a contrast of 400:1 and an SXGA+ 1366 x 1024 resolution. Including a lens shift function, which provides freedom during installation. 3600 Ansi lumens ensure that a picture width of 523 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 349 cm. The projector was launched in 2001 and is no longer sold by the manufacturer. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
3 x 1,3" LCD TFT Panel MLA
SXGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
9,0000 min. Lumen |
3,023 min. Lumen |
| Lens shift |
Vert.: +45% -0% motorisch
|
| Resolution |
SXGA+ 1366 x 1024
1.398.784 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
2 x 220W Lamp
Article Nr.: ET-LAL6510
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
360 - 480 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,3 |
| Objective |
F=1,7-2,3 f=49,1-63,8 mm / L optional |
| Throw Ratio |
1,8-2,4:1 show |
| Audio |
2 x 3W |
| Connections |
5 x BNC Eingang
S-Video in
Video Ein- und Ausgang (BNC x 1)
Audio-Eingang L+R (RCA)
PC-Eingang (VGA)
Audio Eingang (3,5mm Klinke)
RGB-Eingang
RS232C
DVI in und out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
600W / 10W standby |
| Size WxHxD |
495 x 169 x 495 mm (19,5"x6,7"x19,5") 41,41 L/dm³
|
| Operating Noise |
36dB |
|
| Weight |
13,80 kg / 30,42 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 24-97 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
111 fL
/ max. 523 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Lens shift Funktion motorisch
Freeze
Eco Mode
Kensington Slot
Picture-in-Picture
Remote control with mouse control
Digital Zoom
|
|
- |
In Comparison
The Panasonic PT L6600E/U compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
35 |
Weight: |
|
96 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
73 |
Power cons.: |
|
93 |
| Picture Total Points: | 36 |
Projector Total Points: | 94 |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
752 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-LE300 | 4.41-5.85:1 | 882-1170 m |
45% |
|
Powered |
| ET-LE200 | 2.62-4.32:1 | 524-864 m |
45% |
|
Powered |
| ET-LE101 | 1.35-1.76:1 | 270-352 m |
45% |
|
Powered |
| ET-LE050 | 0.73:1 | 146 m |
0.0% Fix |
|
No Zoom |
|
| Status |
2001 Discontinued (EOL) // Last update of the data: 2023-08-04
|
