Brief Introduction
Beta 2.5 |
The Optoma X401 standard portable 3D BrilliantColor DLP projector has 4000 Ansi lumens, a contrast of 15000:1 and an XGA 1024 x 768 resolution. An image width of up to 551 cm is possible as the projector has 4000 Ansi lumens. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 367 cm. Playing 1080P and 3D is also no problem for the projector. It was launched in 2013 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,2667 min. Lumen |
0,089 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
280W Lamp
Article Nr.: SP.8TE01GC01
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
320 - 384 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,4-2,66 f=18,2-21,8 mm |
| Throw Ratio |
1,6-1,92:1 show |
| Audio |
2 x 8W |

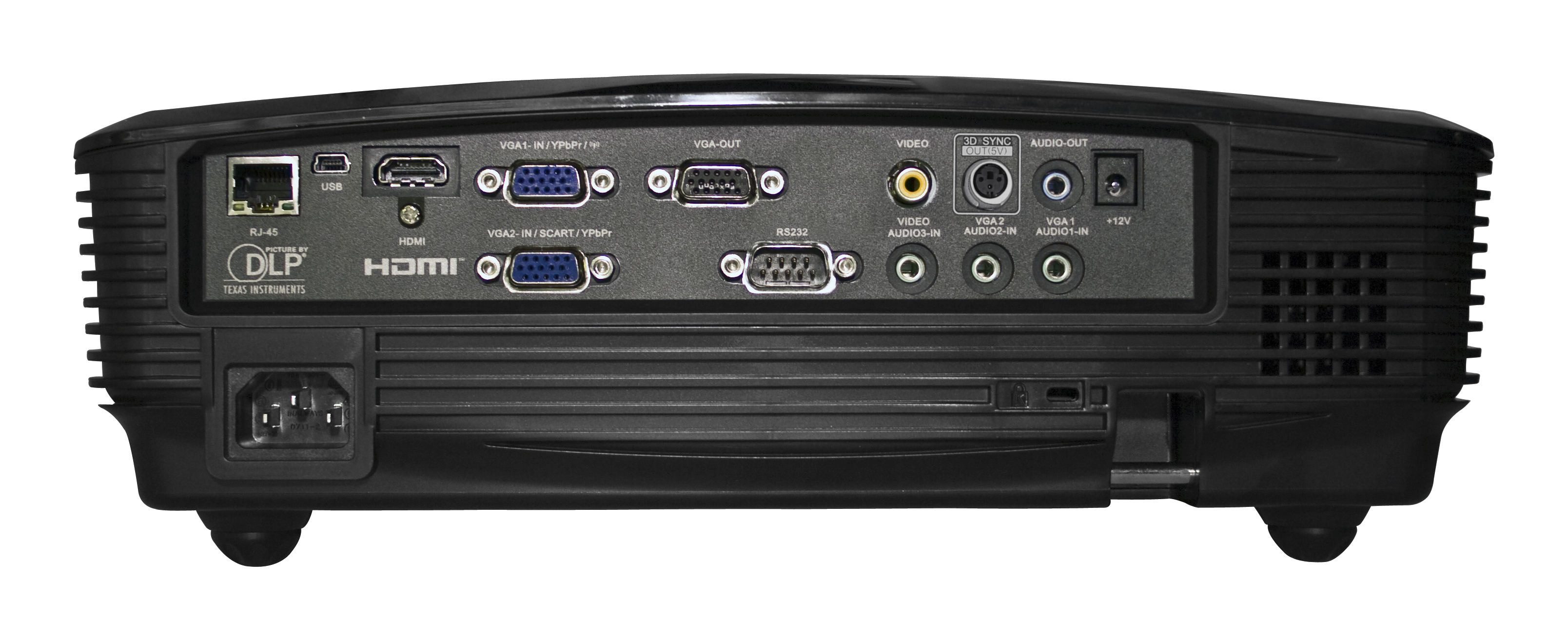

| Connections |
HDMI 1.4b in
2 x D-Sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C
RJ45 in
USB Mausport
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
335 / 285W in Eco Mode |
| Size WxHxD |
324 x 97 x 234 mm (12,8"x3,8"x9,2") 7,35 L/dm³
|
| Operating Noise |
29 dB in Eco Mode |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15,31-90 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
sRGB
BrilliantColor™
Remote control with laser pointer und mouse control
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma X401 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 50 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3224 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-05-31 13:02:01
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (13.99 MB)

|
Optoma Website
