Brief Introduction
Beta 2.5 |

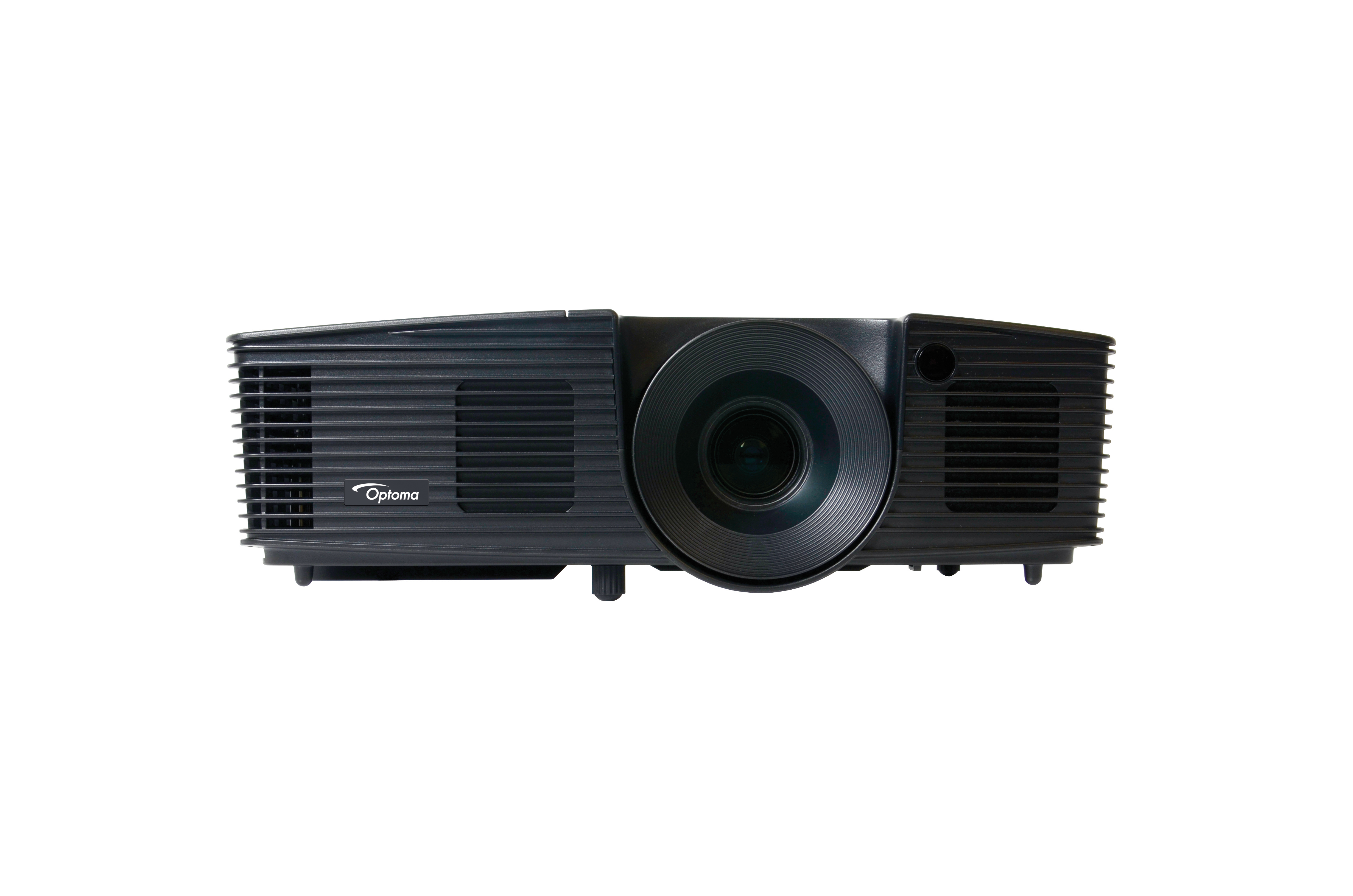

The standard portable Optoma W312 3D DLP projector has 3200 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. The lamp life is specified by the manufacturer as 5000 hours, which is over 6.8 years with a daily viewing time of 2 hours. The projector can illuminate a picture width of up to 575 cm thanks to its 3200 Ansi lumens. In room lighting, however, the image width should ideally be less than 383 cm. The model is also Full HD 1080P and 3D compatible. The operating noise of just 29 decibels makes the projection quiet. The model built in 2015 is no longer offered by Optoma.
|
| Display Type |
1 x 0,65 DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 |
Screen |
1280 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1600 min. Lumen |
0,064 min. Lumen |
| Offset |
65% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
190W Lamp
Article Nr.: SP.8VH01GC01 / SP.73701GC01 / BL-FP190D
|
|
| Light Life |
5000 h. |
| Operating Costs |
|
|
310 - 340 cm
|
 |
|
Lux: |
1280 Lux |
|
Room light max.: |
256 Lux |
|
Candela pro m²: |
408 cd/m² |
|
Foot-Lamberts: |
119 fL |
|
 |
| 81 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,5-2,67 f=21,8-23,98 mm |
| Throw Ratio |
1,55-1,70:1 show |
| Audio |
- |

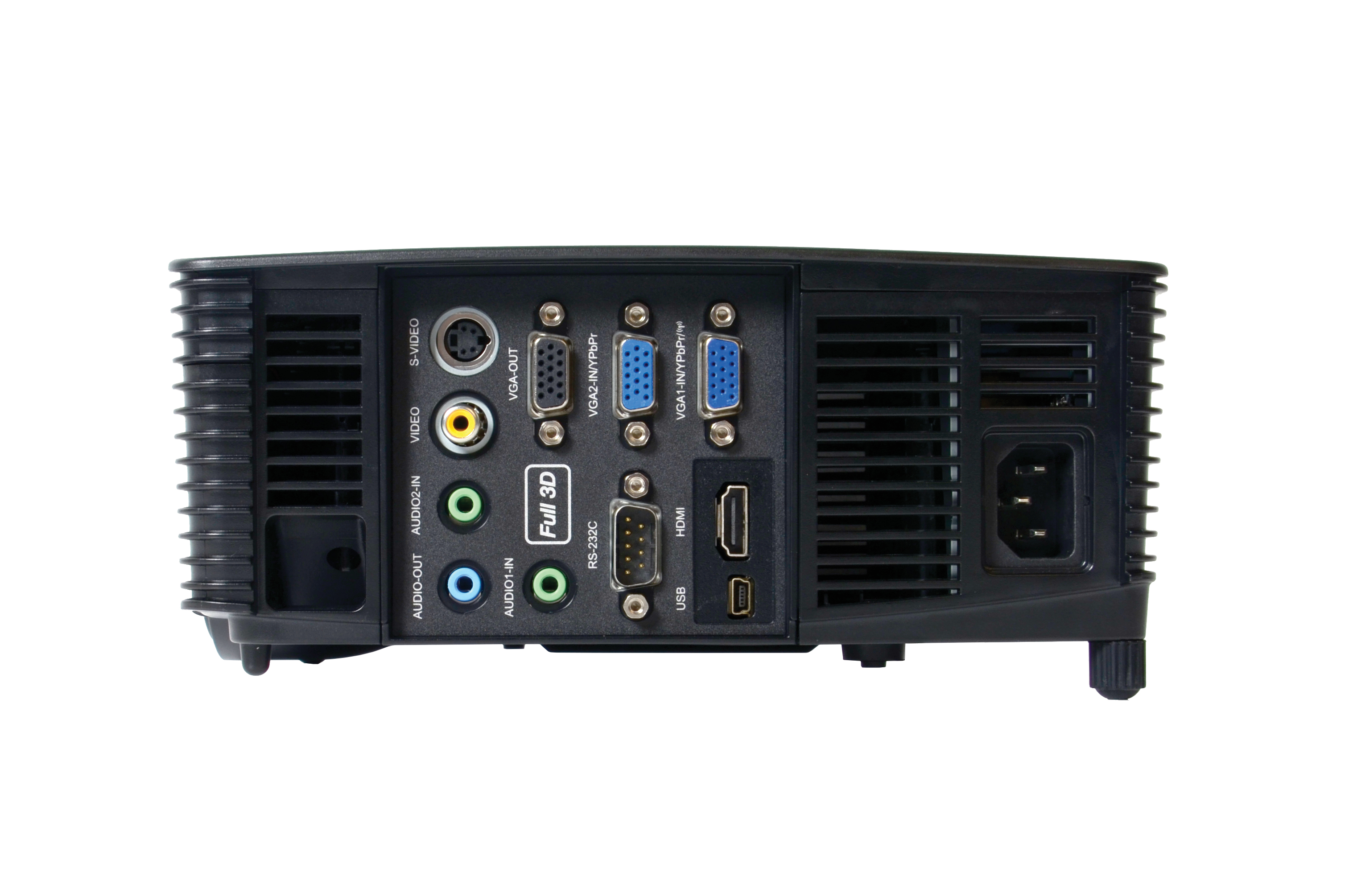

| Connections |
HDMI 1.4a in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
225 / 191W in Eco Mode |
| Size WxHxD |
314,6 x 101,70 x 223,6 mm (12,4"x4"x8,8") 7,07 L/dm³
|
| Operating Noise |
29dB |
|
| Weight |
- |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
119 fL
/ max. 575 cm screen width |
| Candela m² |
408 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma W312 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
0 |
| Contrast: |
|
1 |
dB: |
|
51 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3032 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2015-01-29 16:43:57
|
| Data |
 Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (6.44 MB)

|
Optoma Website
