Brief Introduction
Beta 2.5 |
A brief introduction to the Optoma DX339. The standard portable DLP projector has an XGA 1024 x 768 resolution and a contrast of 5000:1. The manufacturer specifies a lamp life of 4500 hours, which is over 6.2 years if enjoyed for two hours a day. An image width of up to 444 cm is possible, as the projector has 2600 Ansi lumens. However, if room light is available, the picture should be max. 296 cm wide. The model is also Full HD 1080P compatible. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2600 |
Screen |
867 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
0,5200 min. Lumen |
0,174 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
190W Lamp
Article Nr.: BL-FU190A
|
|
| Light Life |
4500 h. 6500 h. in Eco Mode |
| Operating Costs |
|
|
390 - 430 cm
|
 |
|
Lux: |
867 Lux |
|
Room light max.: |
173 Lux |
|
Candela pro m²: |
278 cd/m² |
|
Foot-Lamberts: |
81 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,55 f=21,8-23,98 mm |
| Throw Ratio |
1,95-2,15:1 show |
| Audio |
2W Mono |

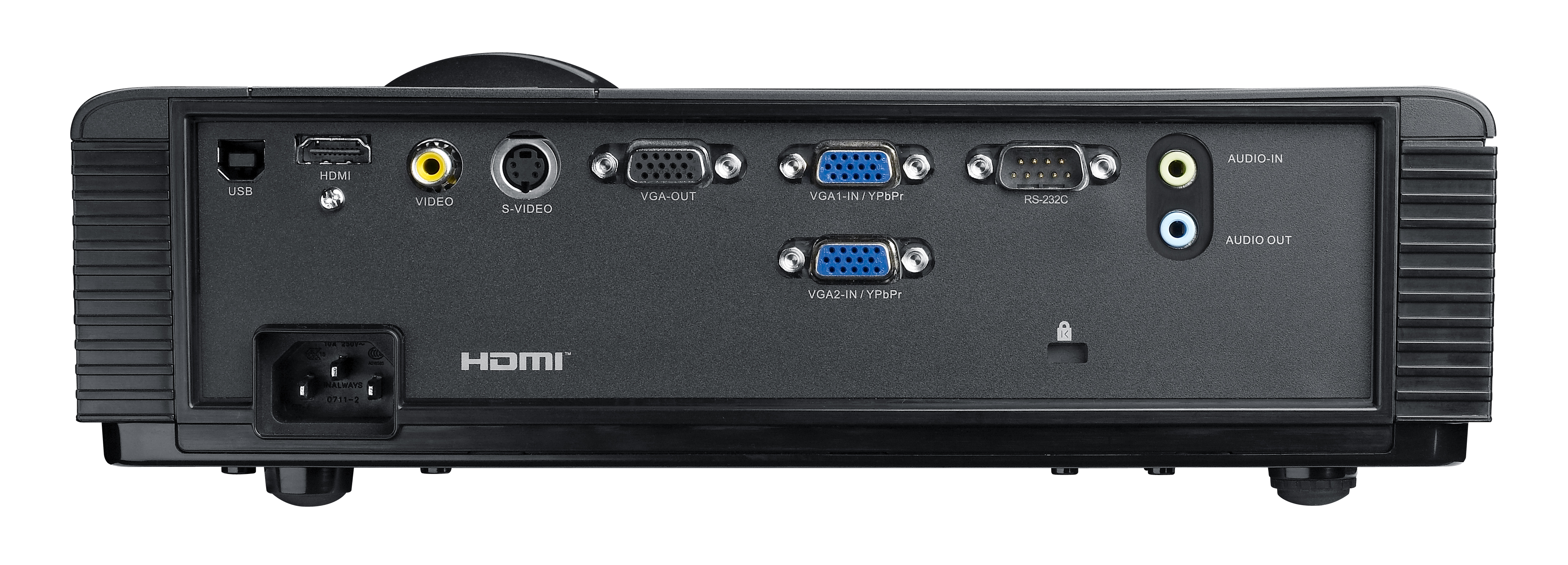

| Connections |
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C
USB Typ B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
263 / 200W in Eco Mode |
| Size WxHxD |
287 x 88,9 x 236,20 mm (11,3"x3,5"x9,3") 5,96 L/dm³
|
| Operating Noise |
34 / 32 dB in Eco Mode |
|
| Weight |
2,27 kg / 5 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
81 fL
/ max. 444 cm screen width |
| Candela m² |
278 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Eco Mode
Kensington Slot
BrilliantColor™
Remote control with mouse control
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma DX339 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
98 |
Power cons.: |
|
97 |
| Picture Total Points: | 43 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3840 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
