Brief Introduction
Beta 2.5 |

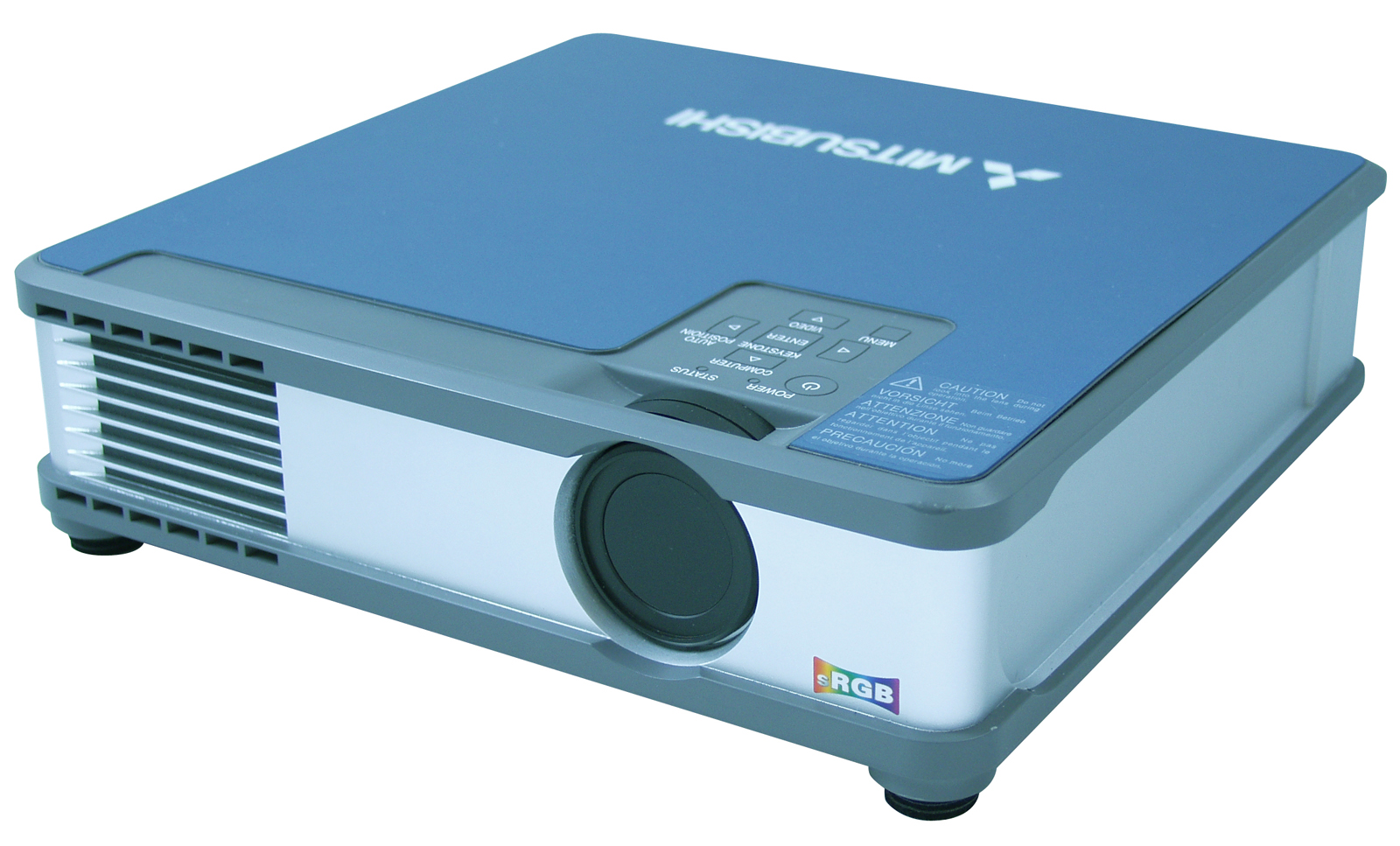

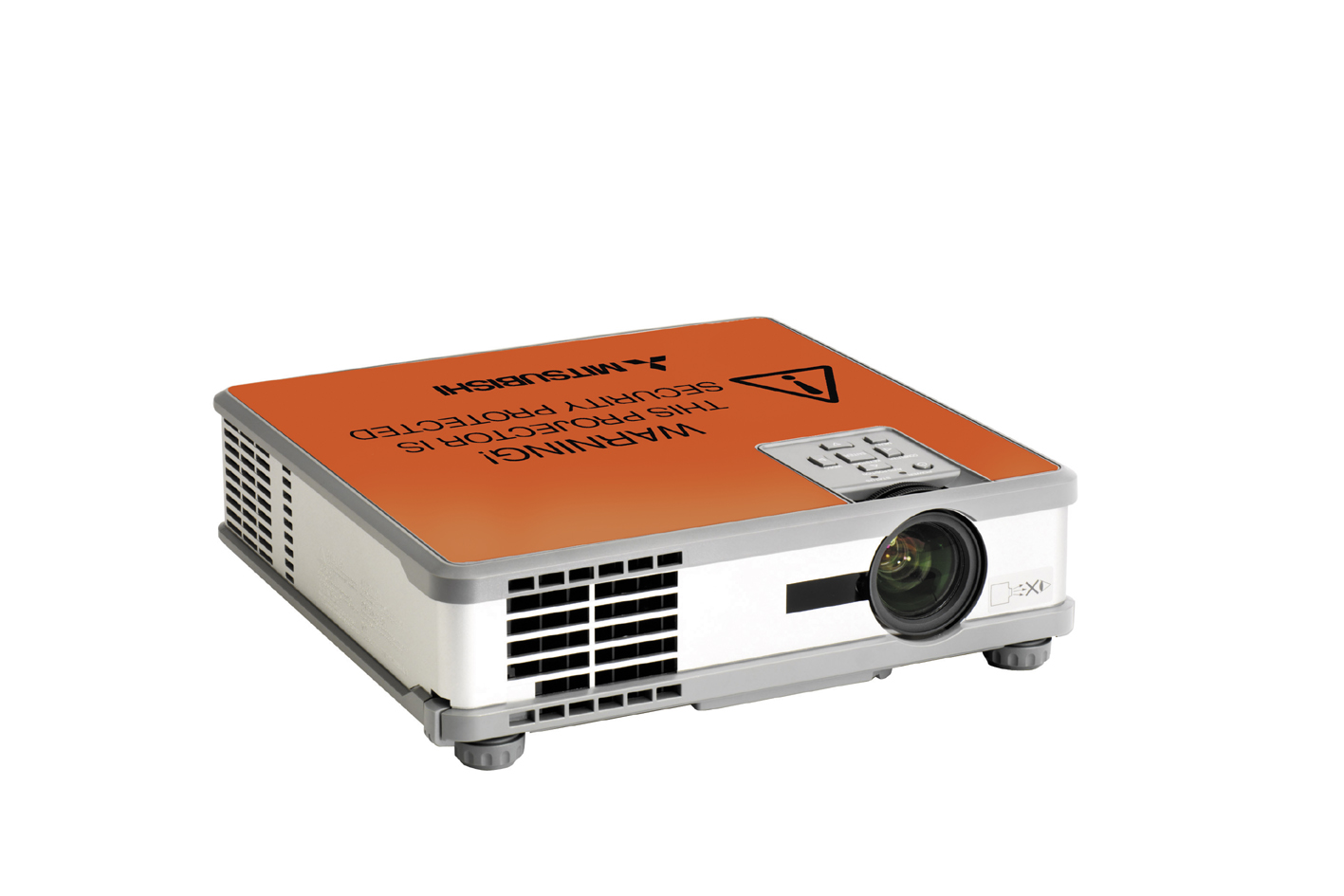

With the XL9U/ Orange, manufacturer Mitsubishi offers an LCD projector with XGA 1024 x 768 resolution and a contrast of 350:1. The projector can illuminate an image width of up to 389 cm thanks to its 2000 Ansi lumens. In room lighting, however, the image width should ideally be less than 259 cm. The model was built by Mitsubishi in 2006 and is no longer current.
|
| Display Type |
3 x 0,6" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2000 / 1500 im Eco Mode |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
350:1 full on/off |
350:1 full on/off
|
| Black Level |
5,7143 min. Lumen |
1,922 min. Lumen |
| Offset |
41% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200 / 160W im Eco Mode Lamp
Article Nr.: VLT-SL6LP
|
|
| Light Life |
2000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
297 - 357 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-1,9 f=19-22 mm |
| Throw Ratio |
1,484-1,784:1 show |
| Audio |
2W Mono |
| Connections |
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack in und out
USB in
5V Trigger out
RS232C Din 8 pin
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
280W |
| Size WxHxD |
275 x 70 x 261 mm (10,8"x2,8"x10,3") 5,02 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vertical |
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Password protection
Remote control with mouse control
digital zoom
de-interlacer
|
|
- |
In Comparison
The Mitsubishi XL9U/ Orange compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
79 |
Power cons.: |
|
97 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
4144 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
