Brief Introduction
Beta 2.5 |

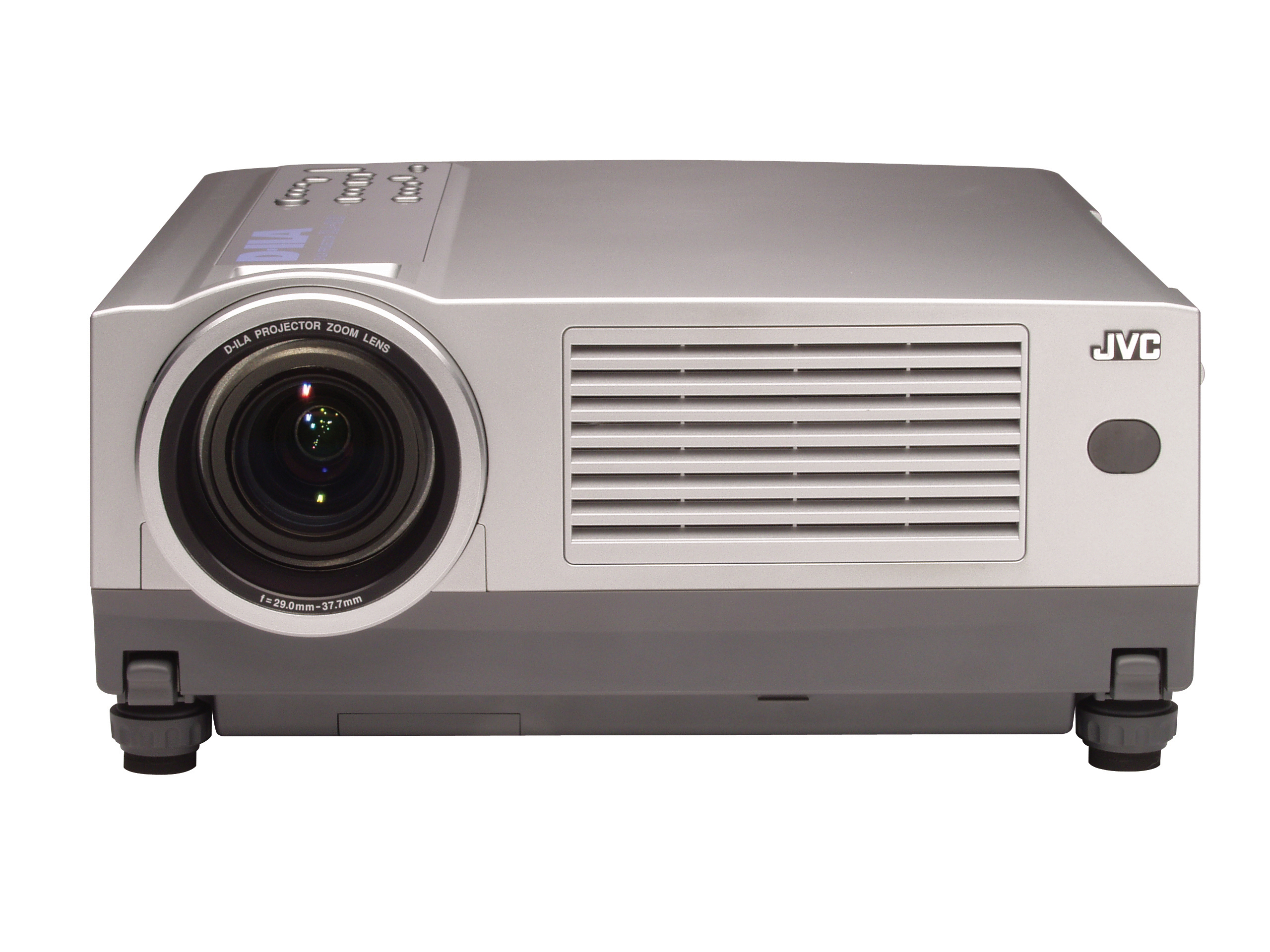

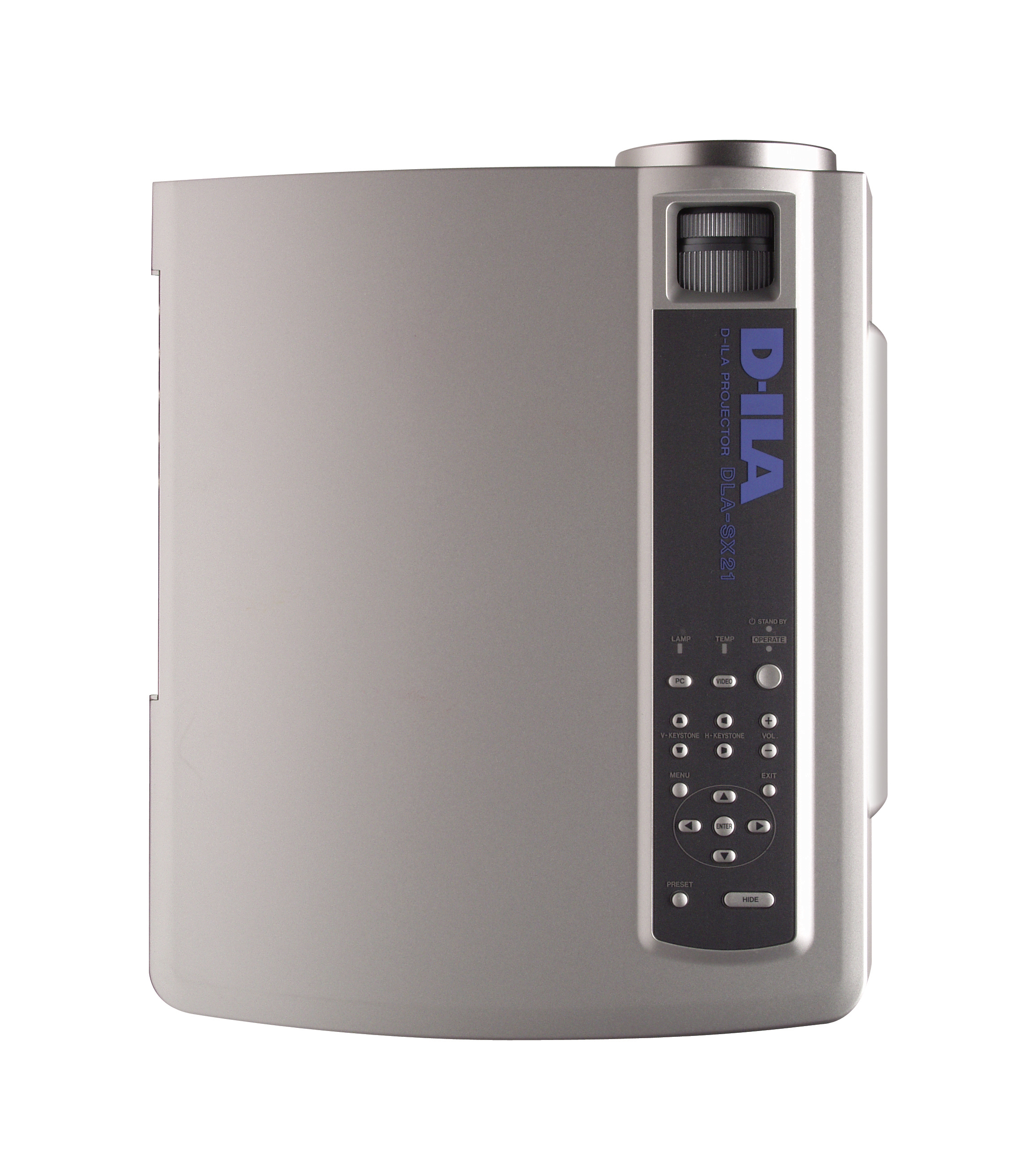

The DLA SX21 DILA projector from JVC has 1500 Ansi lumens, a contrast of 800:1 and an SXGA+ 1400 x 1050 resolution. The projector will be able to illuminate a picture width of 337 cm well. However, if room light is available, the image width should ideally not exceed 225 cm. Furthermore, the projector can play 1080P without any problems. It was launched in 2003 and is no longer offered by the manufacturer JVC.
|
| Display Type |
3 x 0,7" D-ILA Chip
SXGA 4/3 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1500 |
Screen |
500 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
1,8750 min. Lumen |
0,627 min. Lumen |
| Offset |
40% show
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
250W NSH Lamp
Article Nr.: BHL5006-S
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
400 - 520 cm
|
 |
|
Lux: |
500 Lux |
|
Room light max.: |
100 Lux |
|
Candela pro m²: |
158 cd/m² |
|
Foot-Lamberts: |
46 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
- |
| Throw Ratio |
2,0-2,6:1 show |
| Audio |
1W Mono |

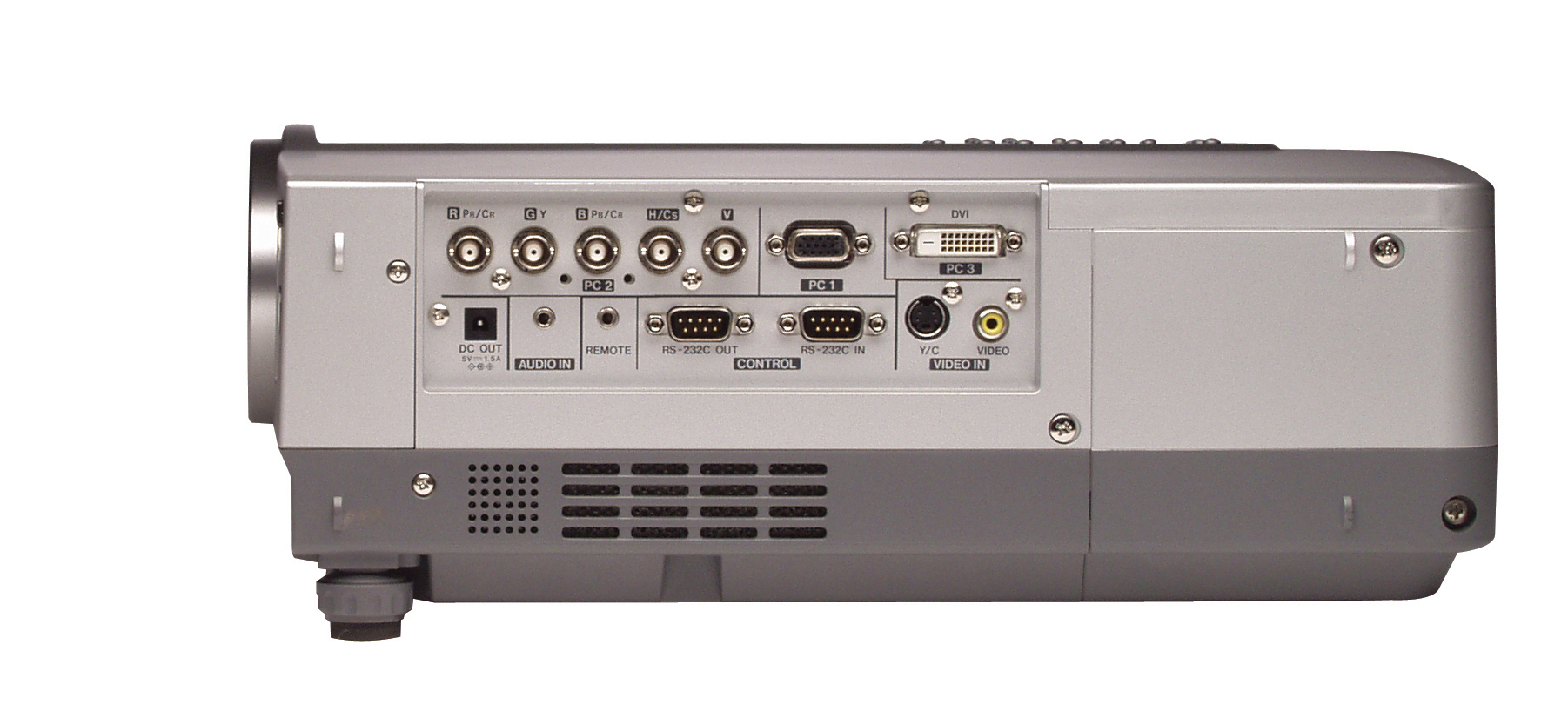

| Connections |
D-sub 15pin in
S-Video
Video Cinch
Mini Jack in
RS232C in und out
5 x BNC RGBHV
DVI-D in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
340W |
| Size WxHxD |
298 x 124 x 360 mm (11,7"x4,9"x14,2") 13,3 L/dm³
|
| Operating Noise |
35dB |
|
| Weight |
5,90 kg / 13,01 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
46 fL
/ max. 337 cm screen width |
| Candela m² |
158 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
User logo
sRGB
Gamma correction
Digital image shift
Optional Wi-Fi network compatible.
16x digital zoom
|
|
- |
In Comparison
The JVC DLA SX21 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
17 |
Weight: |
|
71 |
| Contrast: |
|
1 |
dB: |
|
36 |
| Black level: |
|
93 |
Power cons.: |
|
96 |
| Picture Total Points: | 37 |
Projector Total Points: | 68 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2062 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
|
| Status |
2003 Discontinued (EOL) // Last update of the data: 2023-08-04
|
