Brief Introduction
Beta 2.5 |
The InFocus model IN3106 is a DLP projector with WXGA 1280 x 800 resolution and a contrast of 2000:1. An image width of up to 556 cm is possible. However, the image should be smaller in room light. We recommend max. 371 cm. Even 1080P video signals are no problem for the projector. It was launched in 2008 and is no longer offered by the manufacturer InFocus.
|
| Display Type |
1 x 0,65" LVDS DDP2230 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2400 im Eco Mode |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,5000 min. Lumen |
0,601 min. Lumen |
| Offset |
65% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
230W Lamp
Article Nr.: SP-LAMP-041
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
312 - 344 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 81 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
- |
| Throw Ratio |
1,56-1,72:1 show |
| Audio |
2 x 3W Stereo |

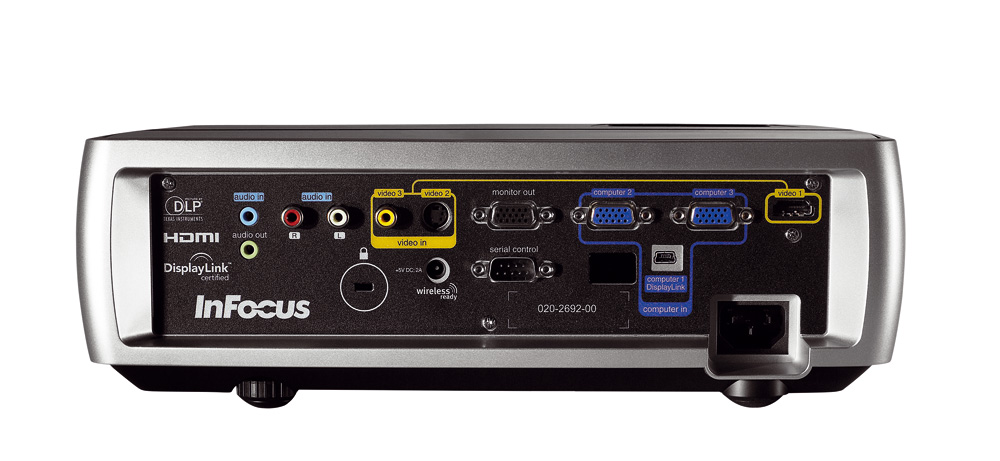

| Connections |
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C Din 9pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
288 / 228W in Eco Mode |
| Size WxHxD |
316 x 95 x 249 mm (12,4"x3,7"x9,8") 7,47 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
|
| Weight |
3,10 kg / 6,83 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15,75-100 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blank (Black screen button)
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Password protection
BrilliantColor™
Remote control with mouse control
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The InFocus IN3106 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
94 |
Power cons.: |
|
97 |
| Picture Total Points: | 44 |
Projector Total Points: | 74 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5851 (From: 7662) |
|
|
|
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
