Brief Introduction
Beta 2.5 |

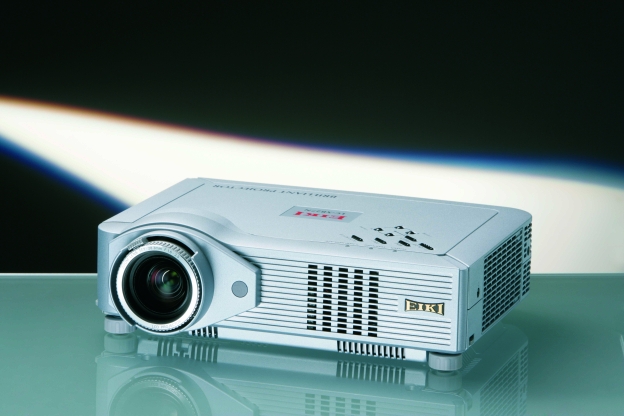

A brief introduction to the LC XB29N: The Eiki standard portable LCD projector offers 2500 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. 2500 Ansi lumens ensure that a picture width of 435 cm is also possible. However, if room light is available, the picture should be max. 290 cm wide. The model was built by Eiki in 2006 and is no longer current.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,676 min. Lumen |
| Offset |
35,7% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHP Lamp
Article Nr.: 610 323 0726 / 610 332 3855 / LMP90 / LMP106
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
276 - 442 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 54 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,57 |
| Objective |
F=1,6-2,5 f=17,7-28,3 mm |
| Throw Ratio |
1,38-2,21:1 show |
| Audio |
1W Mono |
| Connections |
DVI-I mit HDCP
D-sub 15pin in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack
RJ45
USB Typ B, A
RS232C Din 8pin |
| Ceiling Mounting |
Yes, is possible. |
| Power |
282 / 217W in Eco Mode |
| Size WxHxD |
294,5 x 69,5 x 208 mm (11,6"x2,7"x8,2") 4,22 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,60 kg / 5,73 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Direkt Power Off
Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer und mouse control
PJLink™
Wi-Fi network compatible.
Lan network compatible.
Digital Zoom
.
|
|
- |
In Comparison
The Eiki LC XB29N compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 37 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4701 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
