Brief Introduction
Beta 2.5 |

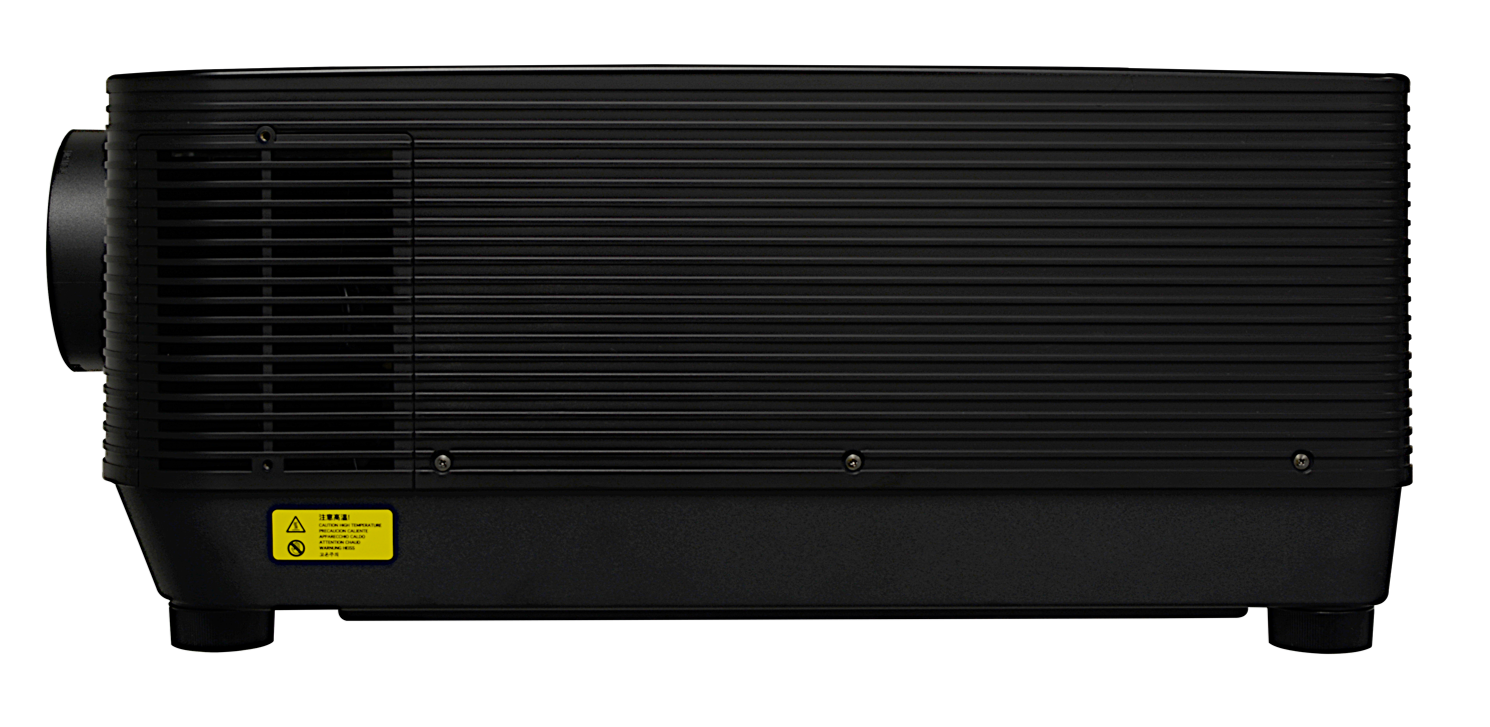

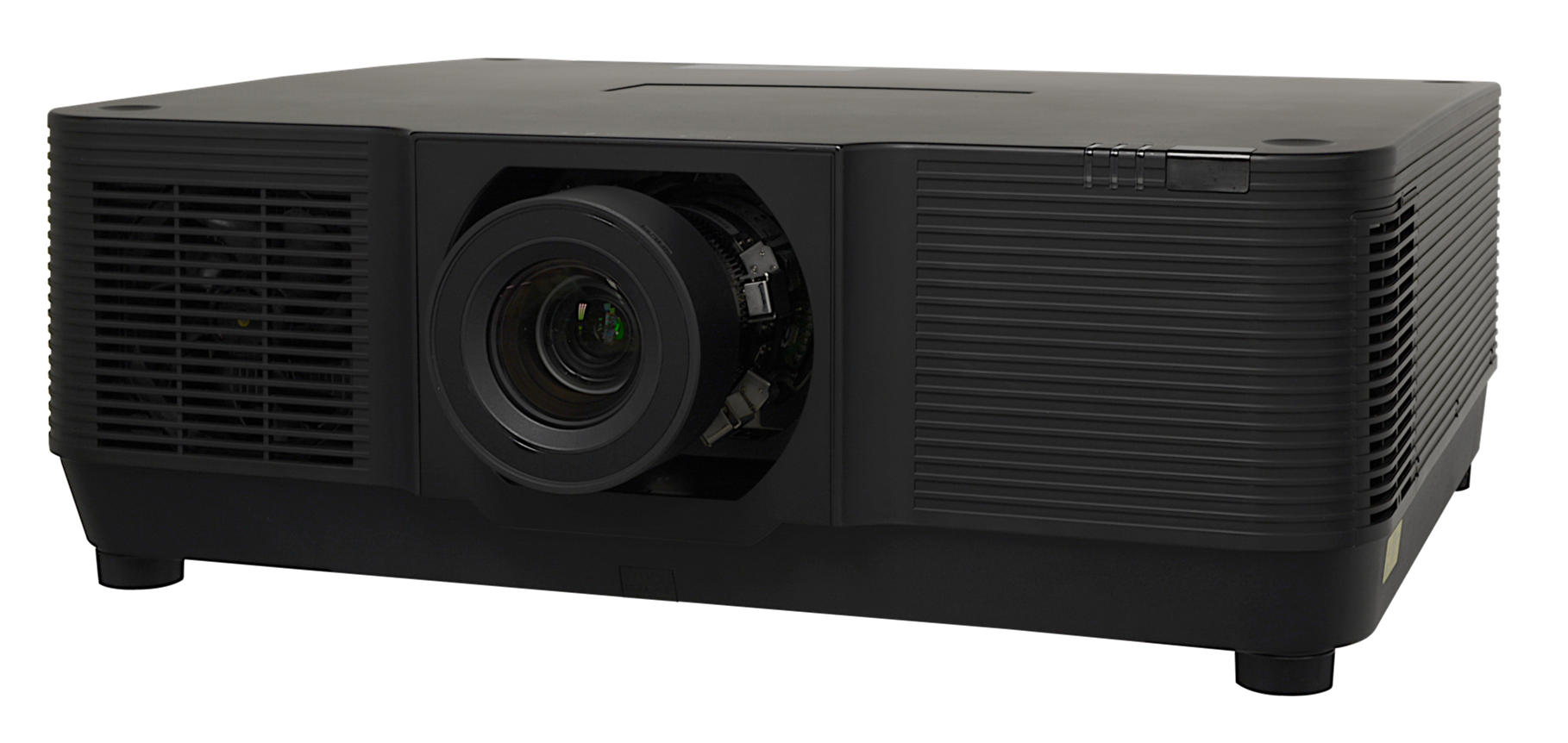

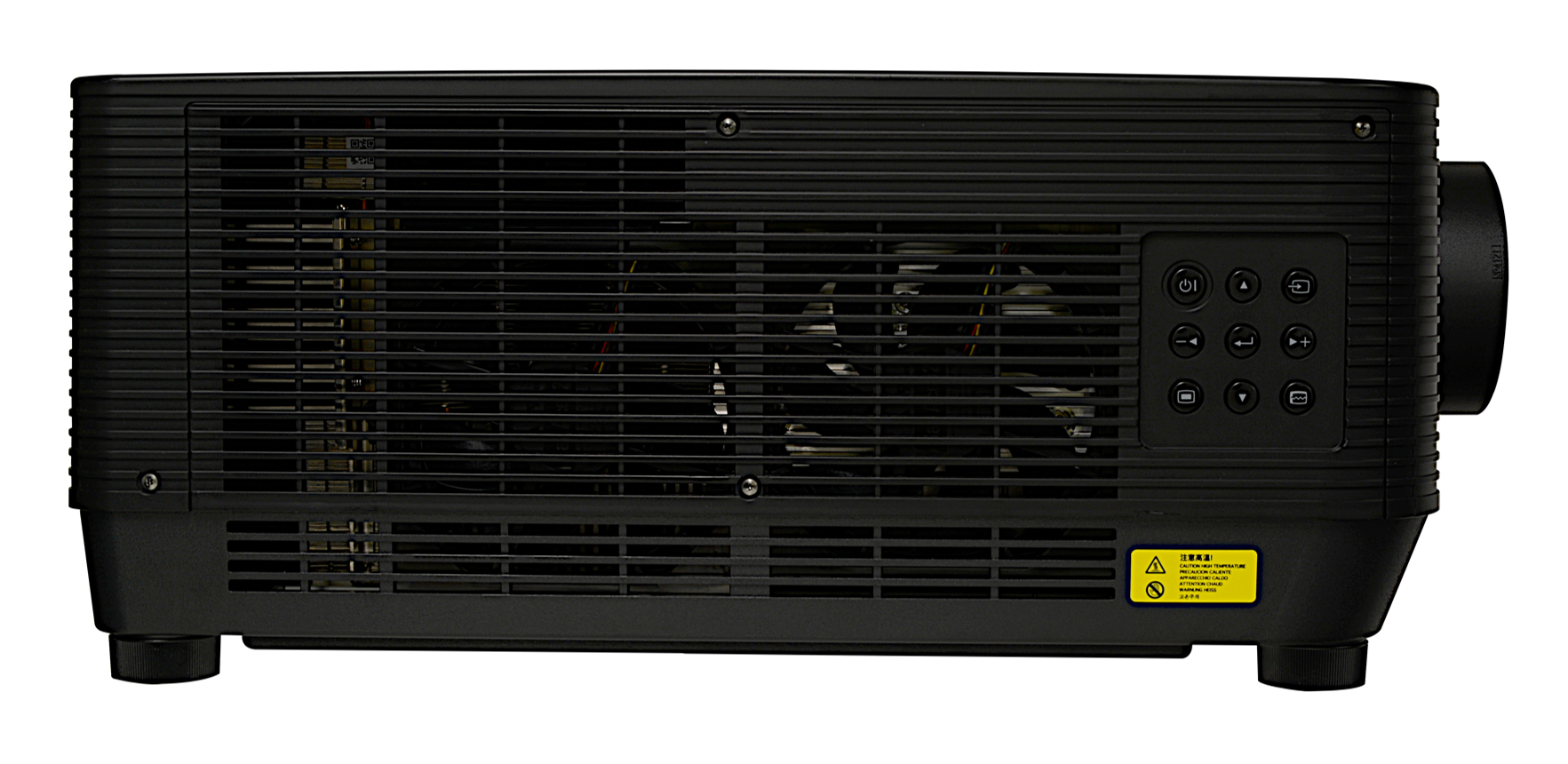

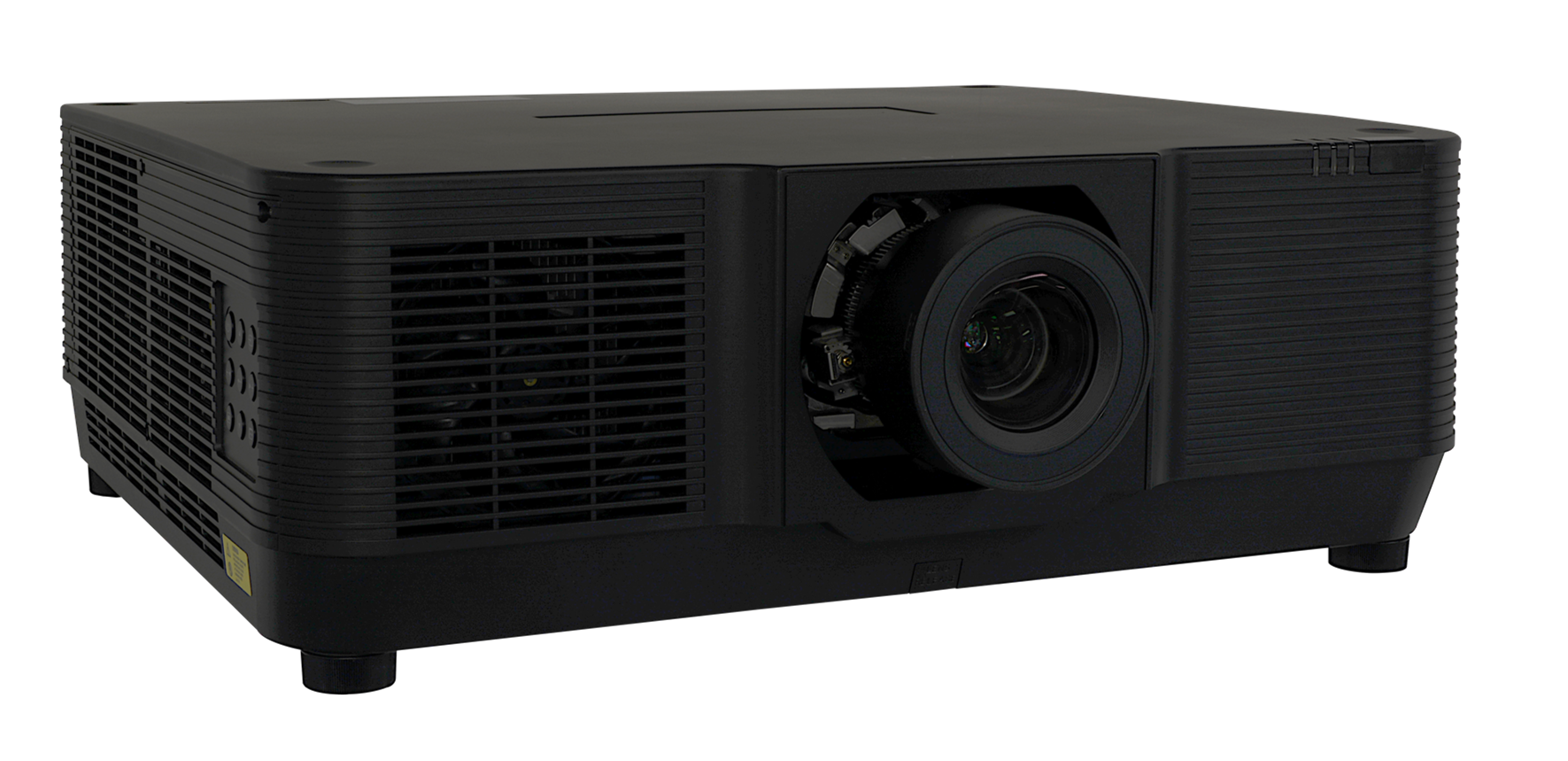

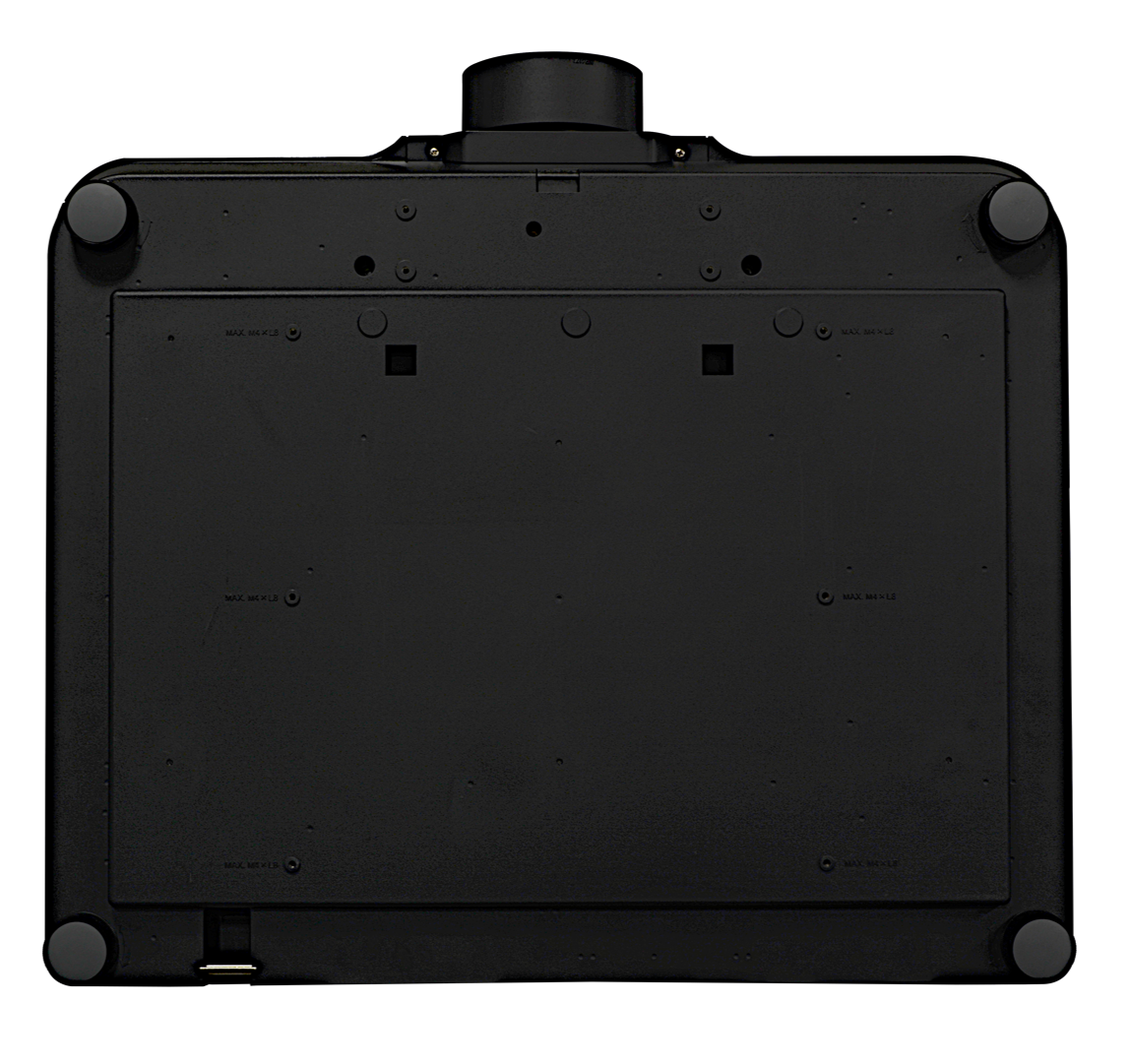

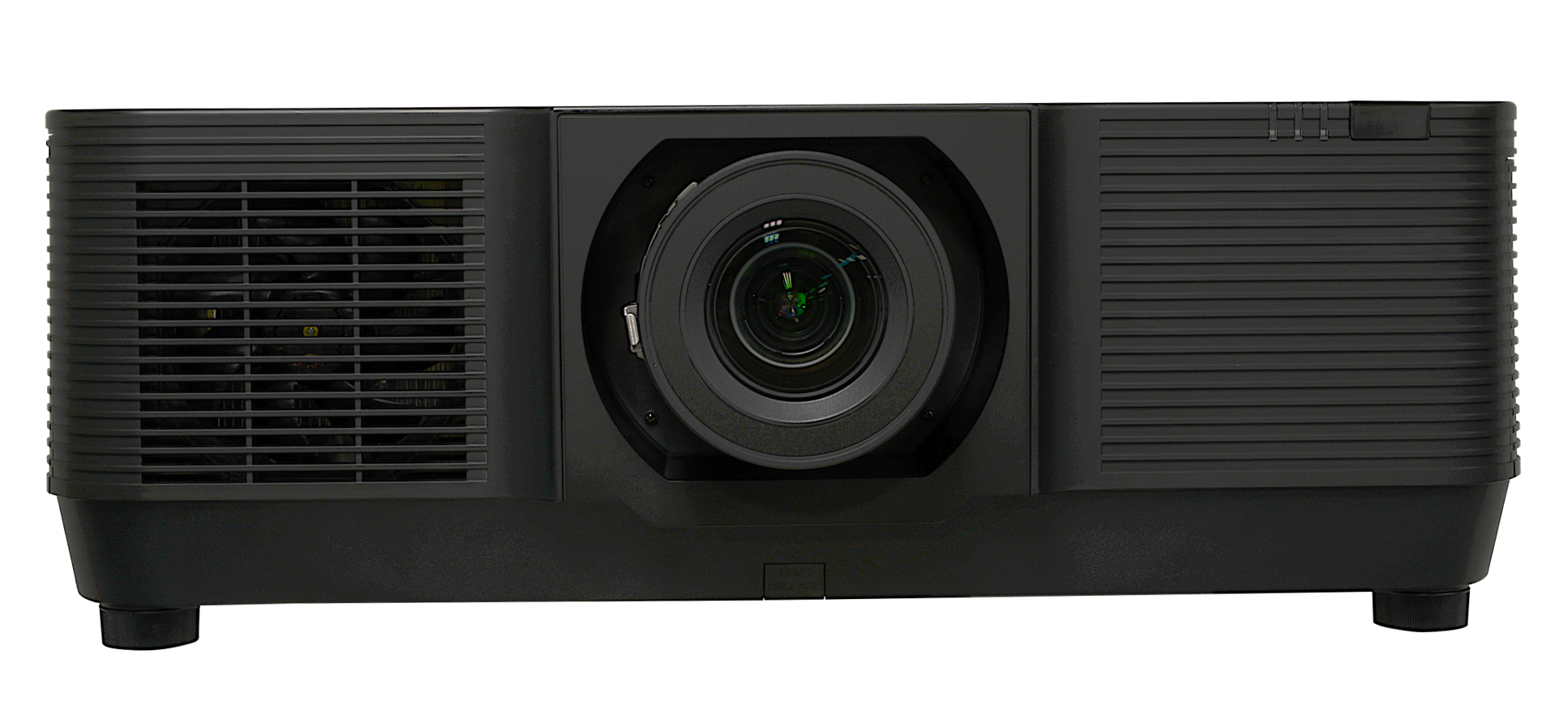

The large-screen EK-1100LU laser LCD projector from Eiki has 11000 Ansi lumens, a contrast of 100000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer Eiki specifies a service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. 1066 cm image width, the projector will be able to illuminate well. The projector can manage rooms with residual light with a smaller image width, we recommend a maximum of 711 cm here. Playing 1080P and 4K (compressed) is also no problem for the projector, and it even has the option of projecting HD 1080P and 4K (compressed) Blu-rays onto the ceiling thanks to the 360° projection. The model was built by Eiki in 2020 and is no longer current, but is still very popular in our projector database.
|
| Display Type |
3 x 0,76" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
11000 |
Screen |
4889 Lux (200 cm Screen width) |
| Contrast |
100000:1 full on/off |
100000:1 full on/off
|
| Black Level |
0,1100 min. Lumen |
0,049 min. Lumen |
| Lens shift |
Vert.: +50% -10% Hori.: +/-20%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
4889 Lux |
|
Room light max.: |
978 Lux |
|
Candela pro m²: |
1556 cd/m² |
|
Foot-Lamberts: |
454 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
2 x HDMI in 1 x out
DVI-D in
D-sub 15pin in und out
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
3G-SDI in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
650 / 320W in Eco Mode |
| Size WxHxD |
600 x 218 x 503 mm (23,6"x8,6"x19,8") 65,79 L/dm³
|
| Operating Noise |
34 / 27 dB in Eco Mode |
Shift: 56 cm
|
Shift: 40 cm
|
|
Shift: 40 cm
|
| |
|
|
| Weight |
24,00 kg / 52,91 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-85 Hz
Range max.: 160 MHz |
| Foot-Lamberts |
454 fL
/ max. 1066 cm screen width |
| Candela m² |
1556 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Eiki EK-1100LU compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
93 |
| Contrast: |
|
2 |
dB: |
|
89 |
| Black level: |
|
100 |
Power cons.: |
|
95 |
| Picture Total Points: | 37 |
Projector Total Points: | 92 |
|
| Popularity Top 100 |
|
| Points: |
|
24 |
| Ranking: |
425 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| AH-EC23030 | 4.59-7.02:1 | 918-1404 m |
50-10% |
+/-30% |
Powered |
| AH-EC24010 | 2.99-5.93:1 | 598-1186 m |
50-10% |
+/-20% |
Powered |
| AH-EC21020 | 1.3-3.02:1 | 260-604 m |
50-10% |
+/-20% |
Powered |
| AH-EC21030 | 1.46-2.95:1 | 292-590 m |
50-10% |
+/-30% |
Powered |
| AH-EC22030 | 0.79-1.11:1 | 158-222 m |
50-10% |
+/-20% |
Powered |
|
| Status |
2020 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2020-11-25 09:44:25
|
